© Panduit Corp. 2018

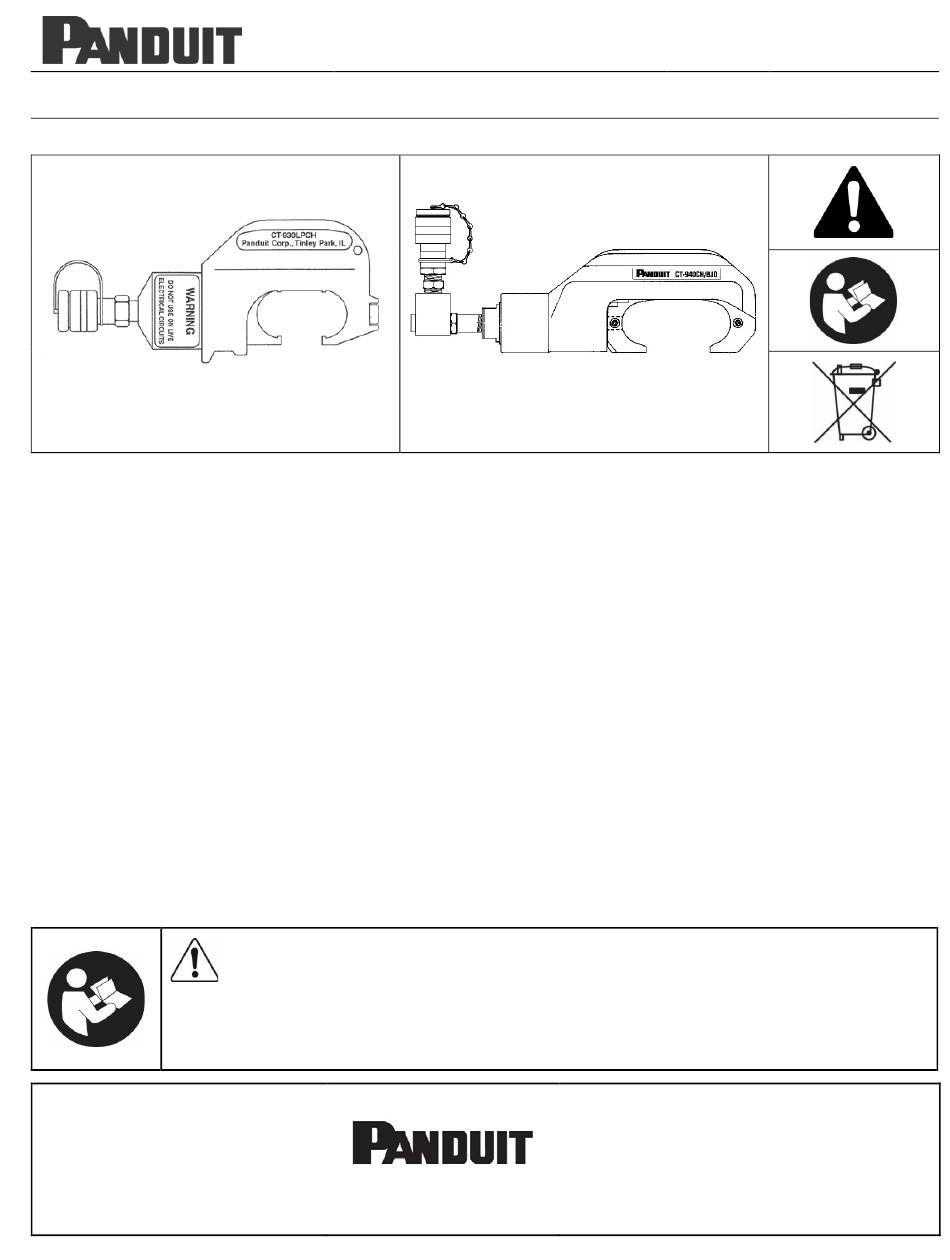

CT-930LPCH CRIMP HEAD
SYSTEM SPECIFICATIONS ........................................................................................................................... 1
OPTIONAL ACCESSORIES (sold separately) ................................................................................................ 1
PRECAUTIONS AND GENERAL GUIDELINES .............................................................................................. 3
DIE SELECTION ............................................................................................................................................. 5
DIE IDENTIFICATION FOR USE WITH MATCHED COMPRESSION CONNECTOR ..................................... 5
DIE INSTALLATION ........................................................................................................................................ 6
TOOL OPERATION (see Figures 3 and 4 above) ........................................................................................... 7
MAINTENANCE .............................................................................................................................................. 8
PERIODIC MAINTENANCE ........................................................................................................................ 8
CLEANING AND LUBRICATION OF TOOL HEAD ...................................................................................... 8
VISUAL INSPECTION ................................................................................................................................. 8
FORCE INSPECTION / CALIBRATION ....................................................................................................... 9
CONTACT INFORMATION ............................................................................................................................. 9
specifications provided with this power tool. Failure to follow all instructions
listed below may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
Email:
techsupport@panduit.com
EU Website:
www.panduit.com/emea
EU Email: emeatoolservicecenter
@panduit.com
and CT-940CH/BJO
REMOTE HYDRAULIC COMPRESSION TOOLS
Table of Contents
WARNING: Read all safety warnings, instructions, illustrations and
www.panduit.com
CT-930LPCH
CT-940CH/BJO CRIMP HEAD
Tel: +31 546 580 452 • Fax: +31 546 580 441
Panduit Corp. • Tinley Park, IL USA
Technical Support
Tel: 1-800-777-3300
Panduit Europe • EMEA Service Center
Almelo, Netherlands
PA29199A01
Rev. 00 6-2018
Advertisement
Table of Contents
Related Manuals for Panduit CT-930LPCH
Summary of Contents for Panduit CT-930LPCH
-
Page 1: Table Of Contents
Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. Email: Panduit Corp. • Tinley Park, IL USA techsupport@panduit.com Technical Support Tel: 1-800-777-3300 EU Website: www.panduit.com/emea... -
Page 2: System Specifications
NOTE: CONNECTIONS UTILIZING THIS TOOL ARE U.L. LISTED AND C.S.A. CERTIFIED ONLY WHEN PANDUIT COMPRESSION CONNECTORS ARE USED. USE OF ANY OTHER BRAND OF COMPRESSION CONNECTORS IS NOT RECOMMENDED. Consult product packaging, Panduit catalog or website for information on recommended compression connectors. OPTIONAL ACCESSORIES (sold separately) - Page 3 CT-930LPCH & OPERATION MANUAL © Panduit Corp. 2018 CT-940CH/BJO CT-900HPH or CT-900LPHPH: Electrically non-conductive 10 ft. hose. Supplied pre-filled with hydraulic fluid for fast start up. Hydraulic Pump System – CT-902HP Hydraulic Pump System is factory preset at 10,000-PSI ± 200 PSI (700 bar). Pump shuts off when for the CT-940CH/BJO: cycle is complete.
-
Page 4: Precautions And General Guidelines
CT-930LPCH & OPERATION MANUAL © Panduit Corp. 2018 CT-940CH/BJO PRECAUTIONS AND GENERAL GUIDELINES This symbol is used to call your attention to hazards or unsafe practices which could result in an injury or property damage. The signal word, defined below, indicates the severity of the hazard. - Page 5 Do not use tool in or near a highly flammable or explosive atmosphere and/or materials. CAUTION: Ear protection should be worn when operating the tool. CAUTION – When using CT-930LPCH or CT-940CH/BJO Crimp Heads DO NOT OPERATE WITHOUT DIES WARNING •...
-
Page 6: Die Selection
NOTE: CONNECTIONS UTILIZING THIS TOOL ARE U.L. LISTED AND C.S.A. CERTIFIED ONLY WHEN PANDUIT COMPRESSION CONNECTORS ARE USED. USE OF ANY OTHER BRAND OF COMPRESSION CONNECTORS IS NOT RECOMMENDED. Consult product packaging, Panduit catalog or website for information on recommended compression connectors. DIE IDENTIFICATION FOR USE WITH MATCHED COMPRESSION CONNECTOR Always verify correct die set by die part number. -
Page 7: Die Installation
Release the die release buttons and check to ensure the die is locked into place. Repeat procedure with second die half. FIG. 3 CT-930LPCH LOW PRESSURE CRIMP HEAD CT-930LPCH_CT-940CH/BJO: PA29199A01_00... -
Page 8: Tool Operation (See Figures 3 And 4 Above)
CT-900HPH High Pressure Hose (electrically non-conductive; 10 foot long) are recommended. This system's fittings are matched to the tool head fittings The CT-930LPCH Tool Head must be operated with a compatible hydraulic pump system, capable of developing and sustaining 5,000 PSI. -
Page 9: Maintenance
CLEANING AND LUBRICATION OF TOOL HEAD Thorough cleaning and lubrication of the tool head is recommended annually, depending on usage. It is recommended that the CT-930LPCH or CT-940CH/BJO Tools be returned to Panduit Global Service Center for proper maintenance by our trained service staff. -
Page 10: Force Inspection / Calibration
Inspect the compression force of the crimp head monthly, whenever possible damage has occurred, or as often as operating conditions warrant. The tool output force can be certified by using a Panduit Compression Gauge, CG-920 or CG-940 (purchased separately, see Optional Accessories on Page 1), or return tool to Panduit Global Service Center for maintenance and calibration.
