6
Connect the leads in the
receiver cable to the terminals
inside the receiver in this order:
1 = Yellow
2 = Grey
3 = Green
4 = White
5 = Brown
C O N N E C T I O N S
D
1
2
3
4
5
D

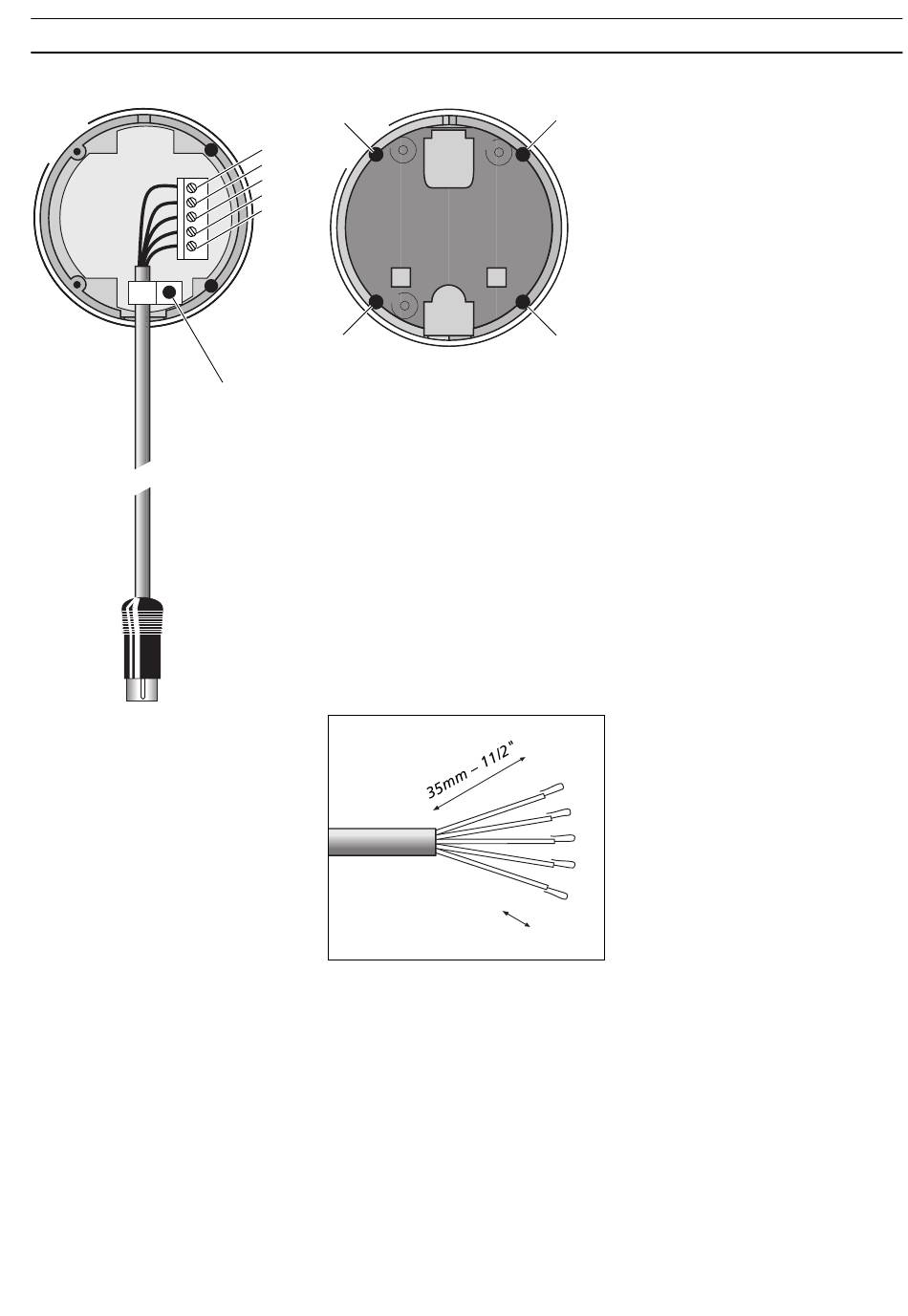

To detach the rear cover of the
F
BeoLink Passive receiver un-
screw the two screws (D) and
loosen the two screws (E).
Strip the receiver cable end.
Twist the cores in each lead
and bend them back.
E
E
5mm – 1/4"
BeoLink Passive receiver
Use the cable supplied (or the
optional special low capacity
cable mentione on page 4) and
connect the BeoLink Passive
receiver as explained here:
1 Cut the cable to the required
length (from the BeoLink
Passive amplifier box to the
receiver) and strip it as shown.
2 Insert the cable end through
the cable clamp (F) and
connect the leads to the
terminals inside the receiver
in the order indicated. Then
tighten the clamp (F).
3 Attach the rear cover and fix
the BeoLink Passive receiver
to the wall as explained on
page 5.
4 Plug the cable into the socket
marked IR on the BeoLink
Passive amplifier box.
All cables should be handled
with great care. When running
the cables, avoid bending them
too sharply and be careful not
to twist them. Avoid subjecting
the cables to pressure or impact.
