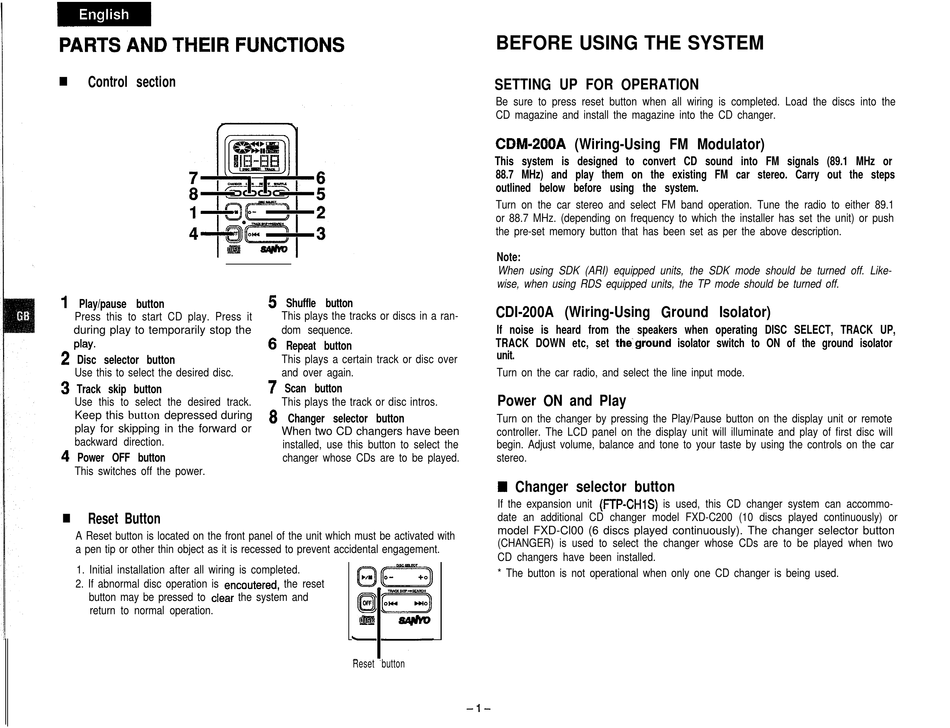

Control section
Play/pause button
Press this to start CD play. Press it
during play to temporarily stop the
Use this to select the desired disc.
Use this to select the desired track.
button
Keep this
depressed during
play for skipping in the forward or
backward direction.
This switches off the power.
n
Reset Button
A Reset button is located on the front panel of the unit which must be activated with
a pen tip or other thin object as it is recessed to prevent accidental engagement.
1. Initial installation after all wiring is completed.
2. If abnormal disc operation is encoutered, the reset
button may be pressed to clear the system and
return to normal operation.
This plays the tracks or discs in a ran-
dom sequence.
Repeat button
This plays a certain track or disc over
and over again.
This plays the track or disc intros.
Changer selector button
When two CD changers have been
installed, use this button to select the
changer whose CDs are to be played.
Reset button
BEFORE USING THE SYSTEM
SETTING UP FOR OPERATION
Be sure to press reset button when all wiring is completed. Load the discs into the
CD magazine and install the magazine into the CD changer.
(Wiring-Using FM Modulator)
This system is designed to convert CD sound into FM signals (89.1 MHz or
88.7 MHz) and play them on the existing FM car stereo. Carry out the steps
outlined below before using the system.
Turn on the car stereo and select FM band operation. Tune the radio to either 89.1
or 88.7 MHz. (depending on frequency to which the installer has set the unit) or push
the pre-set memory button that has been set as per the above description.
Note:
When using SDK (ARI) equipped units, the SDK mode should be turned off. Like-
wise, when using RDS equipped units, the TP mode should be turned off.
CDI-200A (Wiring-Using Ground Isolator)
If noise is heard from the speakers when operating DISC SELECT, TRACK UP,
TRACK DOWN etc, set the.ground
unit.
Turn on the car radio, and select the line input mode.
Power ON and Play
Turn on the changer by pressing the Play/Pause button on the display unit or remote
controller. The LCD panel on the display unit will illuminate and play of first disc will
begin. Adjust volume, balance and tone to your taste by using the controls on the car
stereo.
If the expansion unit (FTP-CHlS) is used, this CD changer system can accommo-
date an additional CD changer model FXD-C200 (10 discs played continuously) or
model FXD-Cl00 (6 discs played continuously). The changer selector button
(CHANGER) is used to select the changer whose CDs are to be played when two
CD changers have been installed.
* The button is not operational when only one CD changer is being used.
isolator switch to ON of the ground isolator
