ReplayTV RTV5000 Instructions

Replacement upgrade drive

Thank you for purchasing this replacement ReplayTV RTV5000 upgrade drive. We've

done everything possible to check and test this drive. All you have to do now is to swap

the drive in your ReplayTV unit with this one.

WARNING: Opening your ReplayTV 5000 Chassis voids your warranty with Digital

Networks North America.

WARNING: Make sure your ReplayTV box is UNPLUGGED before you perform this

procedure. Even though it is turned off, the box is constantly powered.

WARNING: Make sure you discharge yourself of static electricity before you perform

the swap. You can do this by touching the metal part of the chassis periodically.

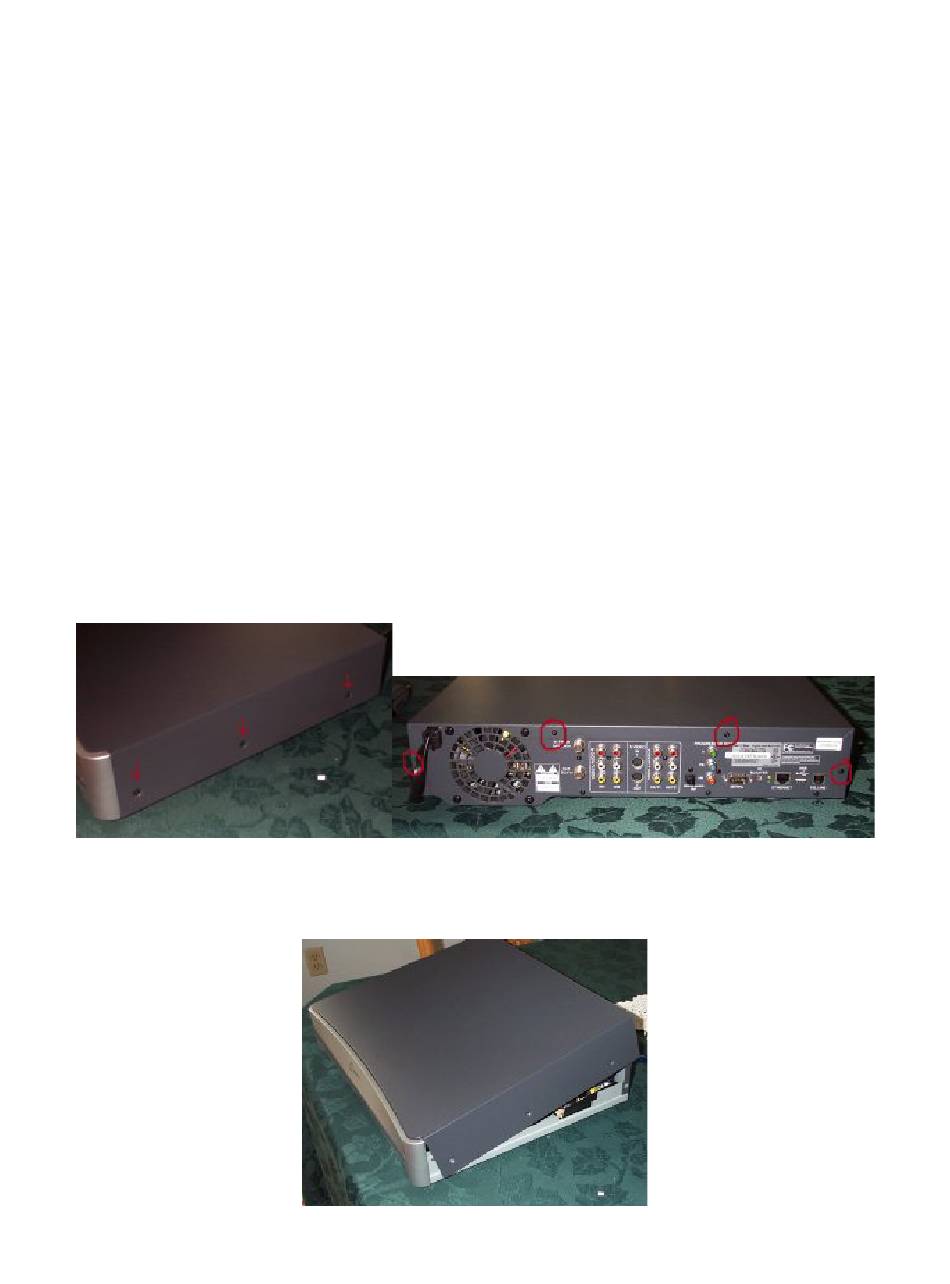

Remove the chassis cover by removing the 3 screws on each side of the RTV5000 and 4

from the back as in the pictures below.

Carefully lift the cover off by tilting it up from the back. Remove the cover and place it

in a safe location.

Table of Contents

Need help?

Do you have a question about the RTV5000 and is the answer not in the manual?

Page 1 You can do this by touching the metal part of the chassis periodically. Remove the chassis cover by removing the 3 screws on each side of the RTV5000 and 4 from the back as in the pictures below.
Page 2 The drive is located toward the front of the unit and is secured in place by a bracket. You will need to remove this bracket assembly before you can remove the drive. To get access to 2 of the mounting screws, you will first have to unplug the drive power and data connectors as shown below.
Page 3 Carefully lift and slide the bracket assembly to the right until it clears the wires. You should now have the following. You are now ready to swap drives, as shown below. Remove the drive from the drive bracket assembly by removing the 4 screws that hold the drive to the bracket.
Page 4 Replace the hard drive with the new hard drive and reinstall the screws. Carefully slide the drive assembly back into position and reinstall the washers and screws that hold the bracket to the chassis Reconnect the power and IDE cables.
Page 5 IP Address. It will power down again. Turn the unit back on and you should see the Welcome ReplayTV screen on your TV. Run ReplayTV setup to update Channel and Connection Options as well as the Remo te Control Codes, if necessary.
