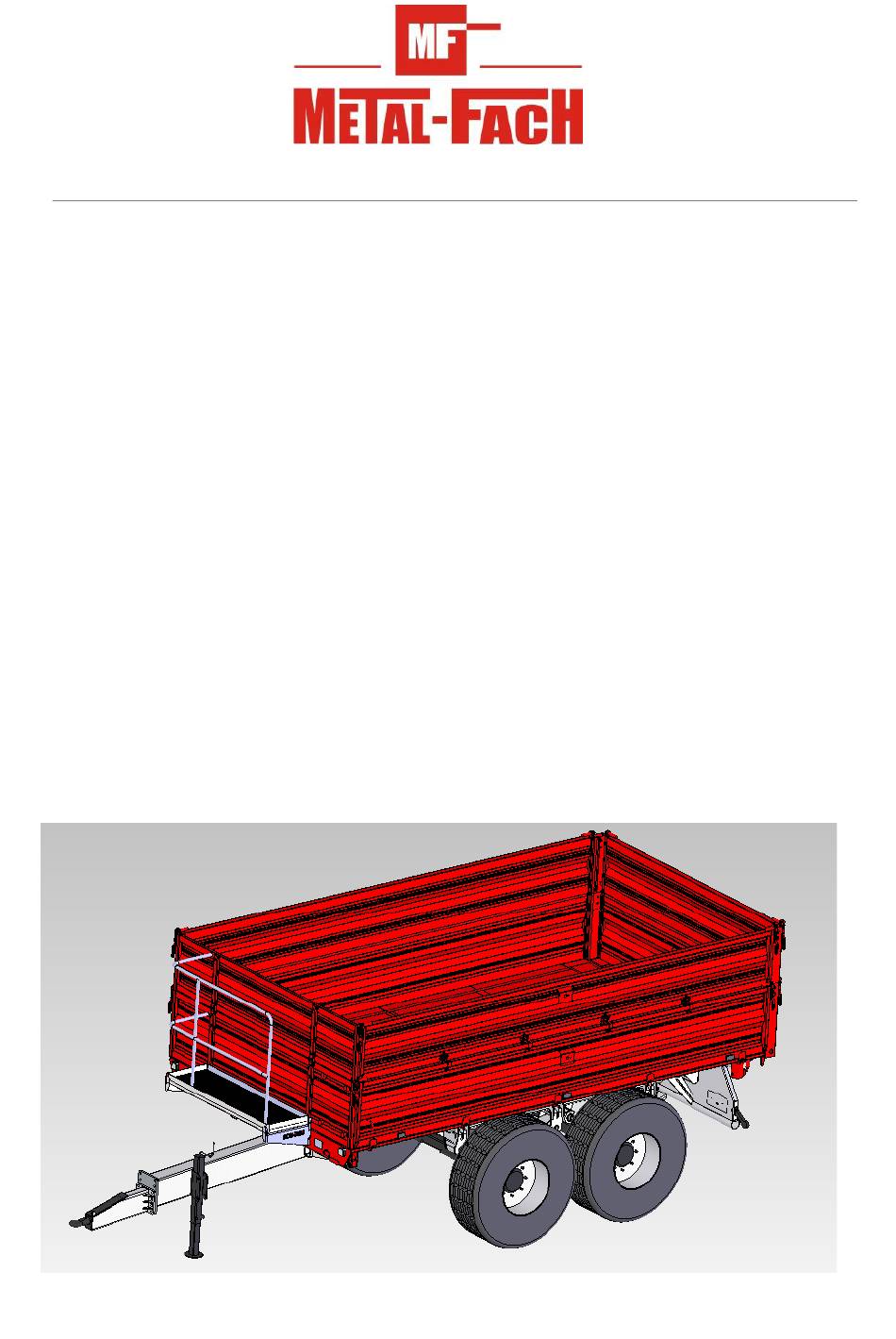

- Page 1 METAL-FACH Sp. z o.o. 16-100 Sokółka, ul. Kresowa 62 Tel. no. +48 85 711 98 40 Fax: +48 85 711 90 65 OPERATING MANUAL FARMING TRUCK TRAILER Type T730/1-00 – 8 T Type T730/2-00 – 10 T Type T730/3-00 – 12 T...
- Page 2 Type designation: T730 T730/1, T730/2 , T730/3 * Trade name: Trailer identification number Trailer manufacturer: METAL-FACH Sp. z o.o. 16-100 Sokółka ul. Kresowa 62 Tel. no. +48 85 711 .. Fax: +48 85 711 98 40 Sold by: Address: Tel./Fax:...
- Page 3 (Journal of Laws 2003, issue 32 item 262 as amended). Safety Test Report no. MF/2/2012 Unit responsible for engineering documentation: METAL-FACH Engineering Department This Declaration of Conformity becomes void and null if the machine design is changed or modified in any manner without prior consent from the manufacturer.
-
Page 4: Table Of Contents
Table of Contents INTRODUCTION ..........................5 1.1. Machine identification ......................6 1.2. Intended use ..........................7 GENERAL SAFETY RULES ......................8 2.1. Symbols and nomenclature ..................... 8 2.2. Obligatory notification ......................9 2.3. General safety regulations of work and use ................9 2.3.1. -
Page 5: Introduction
The crucial obligations of the manufacturer are stated in the warranty document which specifies the complete and current regulations for warranty services. METAL-FACH Sp. z o. o. reserves the right to introduce changes without prior notice and without assuming any obligations resulting from those changes. -
Page 6: Machine Identification
1.1. Machine identification In all correspondence, questions, and warranty issues, please state the type and identification number of the trailer. Trailer version T730/1 T730/1 2012 7301112xxxxx 3500 KJ.. PL*xxxx*xx 11500 51/51 2012 17.64 T730/2 T730/2 7302112xxxxx 3540 KJ.. PL*xxxx*xx 13540 60.1/60.1 T730/3 T730/3... -
Page 7: Intended Use
The identification data is found on the trailer nameplate located on the trailer chassis front crosspiece. The trailer serial number is stamped on the nameplate and under the plate, directly on the machine frame. The manual is a part of the trailer’s essential equipment. Hint: Note down the type and serial number of your trailer. -
Page 8: General Safety Rules
1.3 Equipment The basic equipment of each trailer includes: - the operating instructions manual; - the warranty card with warranty conditions; - the bracket for the sign "slow-moving vehicle"; - the two-line pneumatic brakes with adjustable braking force; - the parking brake; - the lighting installation;... -
Page 9: Obligatory Notification
is all the same essential due to the potential (direct and indirect) hazards and their consequences being severe damage of human health and property. 2.2. Obligatory notification When the trailer is transferred to another user, the operating instructions shall be transferred as well, whereas the receiving user must undergo training according to the instructions. - Page 10 12. Do a functional test of lights and brakes before driving. Also prepare the trailer as recommended in Section "Travelling on public roads". 13. Mind the changes in vehicle behaviour, steerability and braking efficiency 1. due to the hitched trailer and its load. 14.
- Page 11 29. Additional protection for the transported load on the trailer (chains, tarpaulin, plastic sheet, nets, transport straps, etc.) may be applied only with tractor engine off and the ignition key removed. 30. Remove functional disturbances of attachments only with the engine turned off and the ignition key removed.
-
Page 12: Tyres
7. The safety/protection equipment wears out, which requires periodic adjustments, inspection and replacement when necessary. 8. Use only the original spare parts recommended by METAL-FACH Sokółka. 9. Store the trailer in sheltered areas (preferably on level and hardened ground) and in a manner which prevents injuries of people and animals. -
Page 13: Travelling On Public Roads
2.3.5. Travelling on public roads Before departing, check that the trailer lighting is working and that the trailer identification is complete. Follow the traffic code regulations when travelling on public roads. 1. Exceeding the permissible payload and driving speed may damage the trailer and compromise traffic safety. -
Page 14: Warning/Information Signs And Text On The Trailer
2.4. Warning/information signs and text on the trailer The warning signs and text on the trailer must not be removed. They are intended for safe handling of the trailer. If any information label is damaged or removed, order a spare one. Text and symbol label stickers are available at service agents or at the trailer manufacturer. - Page 15 Do not ride on the machine – use the passenger On the load body seat only front wall On the load body Keep a safe distance from the machine front wall Do not stand on ladders and platforms while At the ladder the tractor is moving Feet (toes) crushing hazard.
- Page 16 On the load body "Load capacity 10 t" left and right wall On the load body "Load capacity 12 t" left and right wall On the floor frame Maximum hydraulic system pressure: 16 MPa front crosspiece Maximum pneumatic system pressure: On the load body 0.6 MPa, single-line system;...
-
Page 17: Technical Characteristics. General Data
Table 2 Item Contents I General data Vehicle type – farming trailer Manufacturer – METAL-FACH Sp. z o.o. 16-100 Sokółka, ul. Kresowa 62 Type (model) – T730 Body type – platform Nameplate location – chassis frame front crosspiece S/N stamping location – on the nameplate and underneath II Dimensions and weight T730/1 –... - Page 18 Permissible 8000 10000 12000 vehicle load capacity, kg IV Suspension Suspension dependent, with springs dependent, with springs dependent, with springs type Spring longitudinal 2-leaf longitudinal 2-leaf longitudinal 2-leaf component parabolic springs parabolic springs parabolic springs type and style V Wheels and tyres Number of wheels, pcs.
-
Page 19: General Description Of Design And Function
4. GENERAL DESCRIPTION OF DESIGN AND FUNCTION The T730 is a metal design with open load surface. The trailer features a pneumatic or hydraulic service brake and a parking brake that is manually operated via a screw gear, actuating the friction components of the rear axle service brake. The trailer features a complete signalling and warning system (an electrical system and reflective lights). -
Page 20: Load Body Hydraulic Tipping Mechanism
4.3. Load body hydraulic tipping mechanism The hydraulic mechanism is designed for automatic unloading of the trailer by tipping the load body backwards or sideways. The hydraulic tipping system is fed with oil from the tractor hydraulic system. The hydraulic system includes: the coupling valve plug, hydraulic lines, the single-action hydraulic actuator, the cut-off valve, and connecting and fastening components. -
Page 21: Electrical System (Signalling And Warning)
4.4. Electrical system (signalling and warning) The trailer electrical system is designed for 12 V DC supply from the driving tractor system. The diagram of the electrical system and the trailer lights layout are shown in fig. 1. Fig. 2 Trailer electrical system diagram 1 - 7-pin plug;... - Page 22 1 - 1st trailer pneumatic connector 2 - air filter 3 - control valve 4 - air tank 5 - water drain valve 6 - manual braking force controller 7 - check connector 8 - pneumatic membrane actuator 9 - 2nd trailer pneumatic connector Fig.
-
Page 23: Storage, Sale And Shipping To User
5. STORAGE, SALE AND SHIPPING TO USER STORAGE • Protect the trailer against direct exposure to sunlight and rain. Park it with its land wheels chocked on a hard-paved ground (reduce tyre pressure and cover the tyres if there is a risk of exposure to sunlight). -
Page 24: Operation Information
6. OPERATION INFORMATION 6.1. Commissioning the trailer IMPORTANT! • Use only tractors that are fit for service (with the transport hitch, the hydraulic and pneumatic systems, and the signalling/warning system working) Do the following before commissioning the trailer: Understand the names and locations of individual assemblies/components of the trailer check the tyre pressure couple the trailer with the tractor: set the tow bar hitch-ring of the trailer at the trailer transport hitch height;... -
Page 25: Loading The Body
6.2. Loading the body Load the body only when the trailer is coupled with the tractor, parked on level ground and with the tow bar in the forward driving direction. Use mechanical loading equipment (cranes, loaders, conveyors, etc.) to load the trailer. Make sure that all wall and top section locks are engaged before loading the trailer. -
Page 26: Travelling On Public Roads
6.3. Travelling on public roads Before entering a public road, do the actions listed in section 6.1 and the following: install the slow-moving vehicle sign on the trailer; ensure that the transported load is secured with straps from falling down on the road; check that the load does not exceed the permissible capacity or axle load;... -
Page 27: Unloading
6.4. Unloading The load body can be unloaded manually, with mechanical equipment or by tipping the box with the hydraulic mechanism. Unload by tipping the load body by following these actions in the order presented below: • align the tractor with the trailer's axis; •... -
Page 28: Decoupling From The Tractor
Fig. 5. Load body wall locks 1 - lever safety stop pin; 2 - central bottom lock handle; 3 - lock adjustment mechanism; 4 - central lock shaft. Having discharged the load from the trailer, do the following: • lower the load body and remove all remains of the transported material; •... -
Page 29: Servicing
7. SERVICING 7.1. Servicing instruction for adjusted trailer components. In order to maintain proper performance, the T730 trailer requires the following adjustments: a) Adjustment of the wheel bearing slackness; b) Adjustment of the braking system components. 7.1.1. Wheels – bearing clearance adjustment During the first operating hours of a newly purchased trailer (i.e. -
Page 30: Brakes
INFORMATION! • Follow these rules when jacking up the trailer wheel: - couple the trailer with the tractor, move to level ground and engage the tractor parking brake; - chock the wheel that is not being jacked up; - place the jack under the axis and near the jacked up wheel, and lift the wheel so that it clears the ground;... - Page 31 - the wheel brakes work unevenly and out of sync. With the properly adjusted brakes, the braking force (i.e. the total of braking forces at the circumference of the wheels) shall be at least 27% of the permissible total weight of the trailer when decelerating with the service brake;...
- Page 32 INFORMATION! • Before driving, periodically inspect all braking components for proper operation, tightness and clearance. Adjust or repair as necessary. IMPORTANT! • Inspect the brake shoes at least each year. Replace worn shoes. • In order to achieve the required braking performance after replacement of friction components, remember to run them in (by driving with frequent braking), which should be followed by readjustment.
-
Page 33: Hydraulic Brakes - Operating Principle
7.2.4. Hydraulic brakes – operating principle Safety chain Tractor-trailer quick- Accumulator release coupling Hydraulic Safety valve cylinder 1. The hydraulic system can be decoupled at the quick-release coupling without any damage. 2. When the safety chain is tensioned, it switches over the safety valve to the braking system engaged mode. -
Page 34: Wheels - Tyres
7.3. Wheels – tyres Servicing of the tyres involves checking their condition by visual inspection and checking the tyre pressure. It is also essential to check that the tyres have no cracks that expose or damage the carcass, and that the hubs, wheel disks and their fastening in good condition. INFORMATION! •... -
Page 35: Troubleshooting
safety concerns. The cut-off valve is intended to isolate the oil feed from the actuator before the maximum (permissible) tipping angle of the body is reached. Changing the length or breaking of the cable between the load body frame and the cut-off valve may result in damage of the trailer or a risk of turning over the trailer. -
Page 36: Periodic Maintenance
The load body locking pin The pin is bent or there is Replace the pin or clean does not engage the seat. fouling between the pin and it and the casing, apply a the casing. thin coat of grease on the pin, install it in the seat and secure the pin. -
Page 37: Maintenance And Servicing
Lubrication point. Lubricant grade Lubrication frequency Wheel hub bearings ŁT 43 Every 6 months Hydraulic actuator head socket Graphite grease Once a year Load body tipping system parts ŁT 43 Every 6 months Eye catch ŁT 43 Every 6 months Other lubrication points •... - Page 38 Repair instructions Small repairs required by accidental faults must be carried out with care for cleanliness, installation of all parts at their locations and adjustments essential to proper performance of the trailer. Small repairs during operation (in the field) shall be done on site by service personnel. All parts removed during repairs shall be stored in conditions that protect from dust and other contaminants.
-
Page 39: Disposal Of The Trailer
11. RESIDUAL RISKS Description of residual risks METAL-FACH of Sokółka is liable for the design and build in order to eliminate all hazards, some partial risk is unavoidable in operation of the trailer. The residual risk stems mostly from improper behaviour of the operator caused by lack of knowledge or attention. - Page 40 Assessment of residual risks Follow these guidelines: 1. Always follow the safety regulations described in the operating instructions. 2. Read and fully understand the operating instructions. 3. Keep your hands out of hazardous spaces. 4. It is forbidden to operate the trailer in the presence of bystanders and in particular children. 5.
- Page 41 16–100 SOKÓŁKA, POLAND UL. KRESOWA 62 WARRANTY CARD OF THE FARMING TIPPER TRAILER T730/1-00, T730/2-00, T730/3-00* The warranty service is provided on behalf of the manufacturer by: ............................... filled out by the seller Date of manufacture ........Date of sale ...........
- Page 42 Description of completed Service Service call Date of Service Item service actions and replaced technician date completion stamp parts name...
