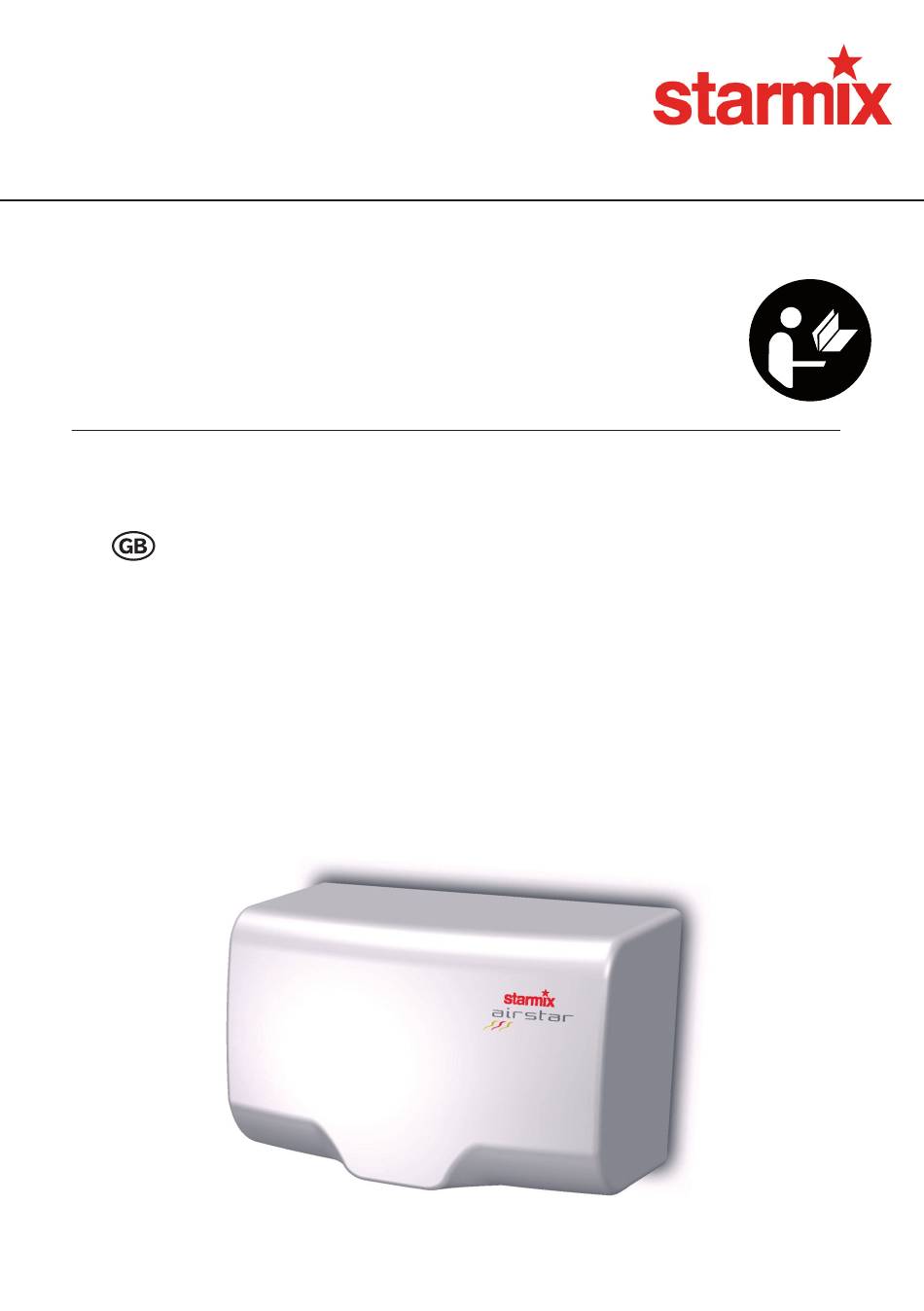

- Page 1 Instrukcja montażu i obsługi suszarek do rąk XT 1000 E XT 1000 EC XT 1000 ES 47–50 Mounting Instructions and Directions for Use 9–12 https://wszystkodobasenow.pl/suszarka-do-rak-basenowa-starmix-xt1000 21– 25–28 Dieses Gerät nicht ohne Beachtung der Gebrauchsanleitung verwenden.
- Page 2 English Product:: Highspeed Hand dryer XT 1000 E Type: XT 1000 EC XT 1000 ES EN 55014-1: 2006 EN 6100-3-2: 2006; EN 61000-3-3:2008 The structure of the equipment is EN 55014-2: 1997/A2: 2008 in accordance with the following EN 61000-4-2: 1995/A2: 2001; EN 61000-4-3: 2006/A1: 2008 relevant regulations: EN 61000-4-4: 2004;...
-
Page 3: Before Use
Read the operating manual carefully before starting to use the hand dryer. It provides important instructions for the operation, safety, care and maintenance. Keep the operating manual in a safe place and, in case you sell the unit, hand it on to the next owner. -
Page 4: Wiring Diagrams
3 Minimum distances 0,6m 0,6m 4 Wiring diagrams Elektronikplatine Lüsterklemme braun blau Transistor grün/gelb Motor mit Thermostat Heizung Thermostat mit Temperatursicherung 12 - GB... - Page 5 5 Technical Data XT 1000 E XT 1000 EC XT 1000 ES Voltage 220-240 V~ 220-240 V~ 220-240 V~ Frequency Hertz 50/60 Hz 50/60 Hz 50/60 Hz Rated power Watt Max. power Watt 1000 1000 1000 Motor output: Watt max. 500 max.
-
Page 6: Installation Instructions
6 Installation instructions • The installation must be carried out by qualified personnel to ensure that the appliance is connected in accordance with safety regu- lations. In rooms with showers and bath tubs the appliance must be installed with the minimum distances laid down in the VDE regulations (0.6 mtrs (24 inches) from the edge of the shower and/or bath and 1.2 mtrs (48 inches) from a shower head). - Page 7 • Fix the installation pattern on the wall at the height recommended in the table shown below on the left. • Mark the centre of the four fi xing holes to be drilled with a sharp-pointed instrument, then drill the holes using an 8 mm drill bit. •...
- Page 8 16 Explosionszeichnung...
