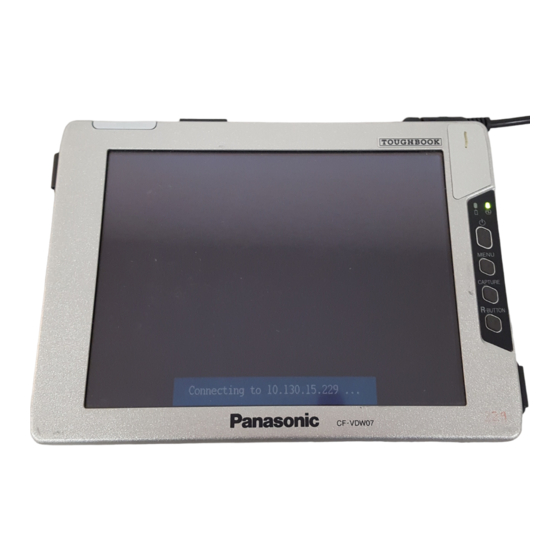

- Page 1 ORDER NO. CPD0111005C1 Wireless Display CF-VDW07 This is the Service Manual for the following areas. M …for U.S.A.
- Page 2 ■ ● ●...
-
Page 5: Table Of Contents
CONTENTS 1 Specifications ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅4 2 Names and Functions of Parts⋅... -
Page 6: Specifications ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅4
1 Specifications Model No. CF-VDW07 Type 8.4 Type (TFT) Displayed Colors 256 colors (800 × 600 dots) Touchscreen Anti-Reflection, Stylus (included) touch capable Interface Serial Port Dsub 9-pin male Battery Packs Li-ion 7.4 V, 1.7 Ah Operating Time* Approx. 1.5 h - 5.0 h... -
Page 7: Names And Functions Of Parts
2 Names and Functions of Parts <Front> Power Switch R-Button R-BUTTON Menu Button MENU Capture Button CAPTURE LED Indicator Battery pack status Power status Not lit: Power off Green: Power on <Attaching the strap> Select two screw holes from the fol- Adjust the strap to its maximum lowing four holes. - Page 8 <Bottom> DC-IN 15.6V DC-IN Jack Serial Port Battery Pack Stylus <Removing the stylus> NOTE When using the serial port of the wireless display, match the COM port number to the number that is displayed in [WDSP COM Port (COMx)] under [Ports (COM & LPT)] (in [Start] - [Settings] - [Control Panel] - [System]*- [Device Manager]).
-
Page 9: Starting Up/Shutting Down
3 Starting Up/Shutting Down Starting Up NOTE About the First-time Operation Operating Instructions of the computer <When using the CF-07 series computer> Operating Instructions of <When using except the CF-07 series computer> the Wireless Display Interface Kit CAUTION Do not maximize the MS-DOS screen. Once maximized, the connection with the wireless display is interrupted and the screen cannot be returned to its original size. - Page 10 Turn on your computer <When using the CF-07 series computer> After confirming the display Power status indicator has lit, turn on Indicator the wireless display <When using except the CF-07 series Power computer> Switch After has been displayed on the taskbar, turn on the wireless display Press the power switch and hold it for approximately one second until the power indicator turns on before releasing it.
-
Page 11: Setting The Wireless Display
4 Setting the Wireless Display You can establish the settings for the wireless display. Press Menu button The setting menus are displayed. Menu Button General Menu By selecting [General], you can change between the mode setting and the backlight off/ low/high setting. - Page 12 Wireless Menu By selecting [Wireless], the wireless settings (for connection with the computer) and current state are displayed (cannot be changed). General Wireless Battery Option Version Network Type : AdHoc SSID : cfvdw07-xxxxx Channel : 10 TxRate mode : Fully Automatic Encryption : Disable Rate (Tx/Rx) : 11Mbps / 11Mbps Display IP : 10.
-
Page 13: Option Menu
Option Menu By selecting [Option], you can establish the individual settings for the wireless display. Change the settings of the wireless connection. Default settings Change the password when the General Wireless Battery Option Version wireless display is starting up. Wireless Connection : Setup Power on Password : Change... - Page 14 Version Menu By selecting [Version], the version information will be displayed. General Wireless Battery Option Version Model No. : CF-VDW07 Firmware : Vx.xxLxx Wireless Controller : 00. 08. 03. 00 Serial No. : xxxxxxxx Cancel 100% Excellent This screen is a sample.
-
Page 15: Capturing The Screen⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅8
5 Capturing the Screen If you want to playback the currently displayed screen later, you can save the screen data onto the memory (up to 100 images)*. * The number of the data that can be saved is different according to the image. -
Page 16: Troubleshooting⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅9
6 Troubleshooting Has the computer or wireless display been set to the N o d i s p l a y a f t e r power-saving mode? powering on To resume operation of your computer from the condition the power of the display is off (for energy conservation purposes), touch the screen. -
Page 17: Battery Power
Blinking red* Quickly remove the battery pack and disconnect the AC adaptor, then connect them again. If the problem persists, contact Panasonic Technical Support. Unable to recharge due to violation of temperature limits. Blinking orange* (The ambient temperature is outside the allowable range. - Page 18 Getting a detailed reading Press Menu button Select [Battery] Menu Button NOTE The actual remaining battery capacity and the displayed indication may differ. • The battery indicator light remains red. • The battery remaining displays 99% and the Perform the “Refresh indicator light is orange for a long period of Battery”...
-
Page 19: Touchscreen
8 Touchscreen The wireless display is equipped with a touchscreen function allowing you to perform the same operations as the mouse by touching the surface of the display with the stylus. Moving the cursor Clicking Cursor One tap Dragging Double-clicking Two quick taps Touch and hold the object... - Page 20 CAUTION The touchscreen function can not be used in the MS-DOS mode and when using the full screen in [MS-DOS prompt]. Handling the Touchscreen Use the stylus included with the wireless display. Do not use an implement other than the stylus that comes with the computer. Do not place any object on the surface or press down forcefully with sharp-pointed objects (e.g., nails), or hard objects that can leave marks (e.g., pencils and ball point pens).
- Page 21 Calibration Define the calibration setup when the cursor, the stylus (included) touches do not appear to agree. Press Menu button Select [Option] Select [Calibration] Touch the five “×” marks on the calibration screen. Menu Button × × × × × 11-3...
-
Page 22: Block Diagrams
9 Block Diagrams System Configuration Diagram GPS module ＧＰＳ (Option) Antenna (Option) D/D conv. 5.0V MAX1634 3.3V SERIAL DRIVER SERIAL CON. LTC1701 MAX211E D-SUB 9pin 1.9V 10MHz DC-IN Battery Touch Screen Charger (Analog I/F) SH7709A MAX772 120MHz Battery 7.4V1.7Ah 32bit SDRAM(64Mbit) SWITCHx4 TC596432CFT-10... -
Page 23: Wiring Connection Diagram⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅13
10 Wiring Connection DIagram... -
Page 24: Disassembly/Reassembly⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅14-1
11 Disassembly/Reassembly <A torque for tightening screws> Please refer to the torque described on Exploded View. 1. Removing the Battery Pack 1. Slide the battery cover latch to the side and open the battery cover. 2. Remove the battery Pack. 2. - Page 25 2.1. Removing the Antenna Board 2.3. Removing the Main Board 1. Remove the single screw. 1. Remove the 6 screws <A> and release the shield plate. 2. Remove the antenna cover from the Rear Cabinet. 2. Disconnect the 4 connectors (CN 3, CN 6, CN 9, CN 11). 3.
- Page 26 <Replacement for the LCD Back Lamp> 2.4. Removing the Wreless LAN Board 1. Remove the 2 screws. 1. Remove the flexible cable from the connector. 2. Remove the tape from two places and remove 2. Remove the 4 screws. protection tape of cable. 3.
-
Page 27: Exploded View⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅15
12 Exploded View A K200... -
Page 28: Replacement Parts List Comparison Table ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅16-1
13 Replacement Parts List Comparison Table Note: Important Safety Notice Components identified by mark have special characteristics important for safety. When replacing any of these components, use only manufacturer's specified parts. CF-VDW07M REF. NO and AREA PART NO. DESCRIPTION Q'TY Main Block Unit DFJE08T250DS CABLE, FFC... - Page 29 DFHR3047ZB SHEET B, SERIAL DFHR3048ZA SHEET, DC IN CABLE DFHR3052ZA CUSHION, WATER PROOF DFHR3053ZA SHEET C DFHR3054ZB SHEET D DFHR3064ZA DAMPER, SW DFHR3065ZB SHEET, FPC DFHR3076ZB SHEET A, BATTERY RELEASE DFHR3174ZB DAMPER F, LCD DFHR3175ZA SHEET, BATT COVER DFHR3177ZA SHEET, ANTENNA DFHR3184ZA SHEET E, SERIAL DFHR3185ZB...
- Page 30 Wireless LAN IC505 C1CB00001356 IC, MAC CONTROLLER IC506 C1CB00001357 IC, BASE BAND PROCESSOR IC501 502 C3BBHC000267 IC, SRAM IC503 C3FBHC000048 IC, FLASH MEMORY Q501 B1CHJB000001 TRANSISTOR IC510 511 C0CBCAC00011 IC, REGULATOR IC518 C1CB00000789 IC, SWITCH IC513 C1CB00001347 IC, LOW NOISE AMP, LAN IC509 C1CB00001358 IC, I/Q MODEM...
- Page 31 R586 587 ERJ2RKF3741X RESISTOR, 1/16W, 3.74KΩ R552 ERJ2RKF3921X RESISTOR, 1/16W, 3.92KΩ R553 ERJ2RKF49R9X RESISTOR, 1/16W, 49.9Ω R557 560 ERJ2RKF5360X RESISTOR, 1/16W, 536Ω R580 ERJ2RKF6490X RESISTOR, 1/16W, 649Ω R583 ERJ2RKF82R5X RESISTOR, 1/16W, 82.5Ω R584 585 ERJ2RKF90R9X RESISTOR, 1/16W, 90.9Ω R572 ERJ2RKF9531X RESISTOR, 1/16W, 9.53KΩ...
- Page 32 R502 503 504 505 ERJ2GEJ473X RESISTOR, 1/16W, 47KΩ 508 509 510 513 R501 540 ERJ2GEJ561X RESISTOR, 1/16W, 560Ω R545 ERJ2RHD152X RESISTOR, 1/16W, 1.5KΩ R536 ERJ2RKF1212X RESISTOR, 1/16W, 12.1KΩ R537 538 ERJ2RKF1912X RESISTOR, 1/16W, 19.1KΩ R520 521 ERJ2RKF5621X RESISTOR, 1/16W, 5.62KΩ R541 ERJ2RKF6190X RESISTOR, 1/16W, 619Ω...
- Page 33 R151 152 RL1220SR22F RESISTOR, 1/4W, 0.22Ω R134 135 136 D1BDR3300001 RESISTOR, 1/4W, 0.33Ω IC12 DA1634CAITXX IC, DC/DC CONVERTER C82 91 154 155 DCUE1C106MBY CAPACITOR, 16V, 10µF C87 97 DCUJ1A105ZFL CAPACITOR, 10V, 1µF C141 142 164 DCUJ1H103KBL CAPACITOR, 50V, 0.01µF Q37 64 2SD1819ARTX TRANSISTOR DED1SS400T61...
- Page 34 R80 96 113 178 ERJ2GEJ105X RESISTOR, 1/16W, 1MΩ R97 98 99 100 ERJ2GEJ121X RESISTOR, 1/16W, 120Ω R180 189 193 ERJ2GEJ152X RESISTOR, 1/16W, 1.5KΩ R179 ERJ2GEJ184X RESISTOR, 1/16W, 180KΩ ERJ2GEJ224X RESISTOR, 1/16W, 220KΩ ERJ2GEJ3R3X RESISTOR, 1/16W, 3.3Ω R64 89 90 91 92 ERJ2GEJ473X RESISTOR, 1/16W, 47KΩ...
- Page 35 R9 10 65 87 88 ERJ2GEJ103X RESISTOR, 1/16W, 10KΩ 186 187 R16 137 164 ERJ2GEJ104X RESISTOR, 1/16W, 100KΩ R140 ERJ2GEJ120X RESISTOR, 1/16W, 12Ω ERJ2GEJ152X RESISTOR, 1/16W, 1.5KΩ R109 110 111 112 ERJ2GEJ153X RESISTOR, 1/16W, 15KΩ R149 150 ERJ2GEJ1R0X RESISTOR, 1/16W, 1Ω R86 105 ERJ2GEJ221X RESISTOR, 1/16W, 220Ω...
- Page 36 K5Y152A00005 FUSE, 2A MA3Z792D0L DIODE MA729-TX DIODE RL1220TR047J RESISTOR, 1/4W, 0.047Ω RR0816P203D RESISTOR, 1/16W, 20KΩ DFJP212ZA009 CONNECTOR, SERIAL LED PCB LD1002 SEC1703C LD1001 SEC2764C CN1001 K1MN08B00012 CONNECTOR, FPC SW1001 1002 EVQPLHA15 SWITCH, PUSH 1003 1004 16-9...
