Bulletin Number: TBG-19 | Model: GB312 Series Boilers
Technical service bulletin
BIM Module Change Procedure
Tools Needed
•
Drill
•
Riveting tool
•
Phillips head screwdriver
•
30T Torx screwdriver or angle torx
•

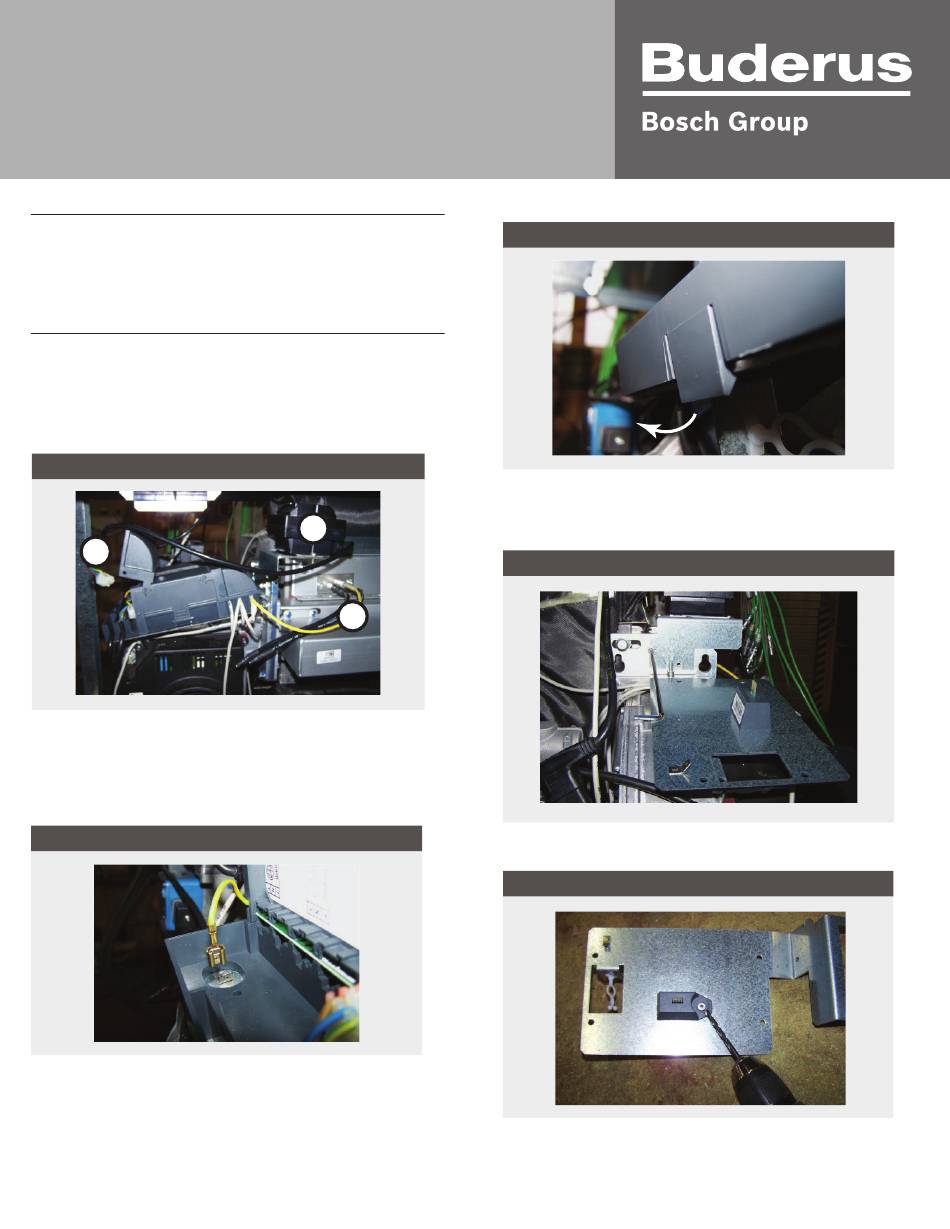

BIM Module Change Procedure
1. Disconnect ignition transformer by unplugging the ignition
cables (Fig. 1, pos. A) and the power supply cable (Fig. 1,
pos.B). Loosen two torx screws and remove transformer
(Fig. 1, pos. C).
B
2. Disconnect grounding cable under cable cover of SAFe control
(Fig. 2). Press both plastic clamps of SAFe control cover on
backside of metal holding plate (Fig. 3) and pull complete
SAFe control loose from holding plate (pay attention to wiring
of control).
Figure 1
C
A
Figure 2
3. Unscrew screws No. 20 (installation & maintenance manual
page 109) and remove holding plate together with the old BIM
programming module (Fig. 4).
4. Drill out rivet which fixes BIM module to metal plate (Fig. 5).
Figure 3
Figure 4
Figure 5
