Summary of Contents for INNOSILICON T2T-24T BTC

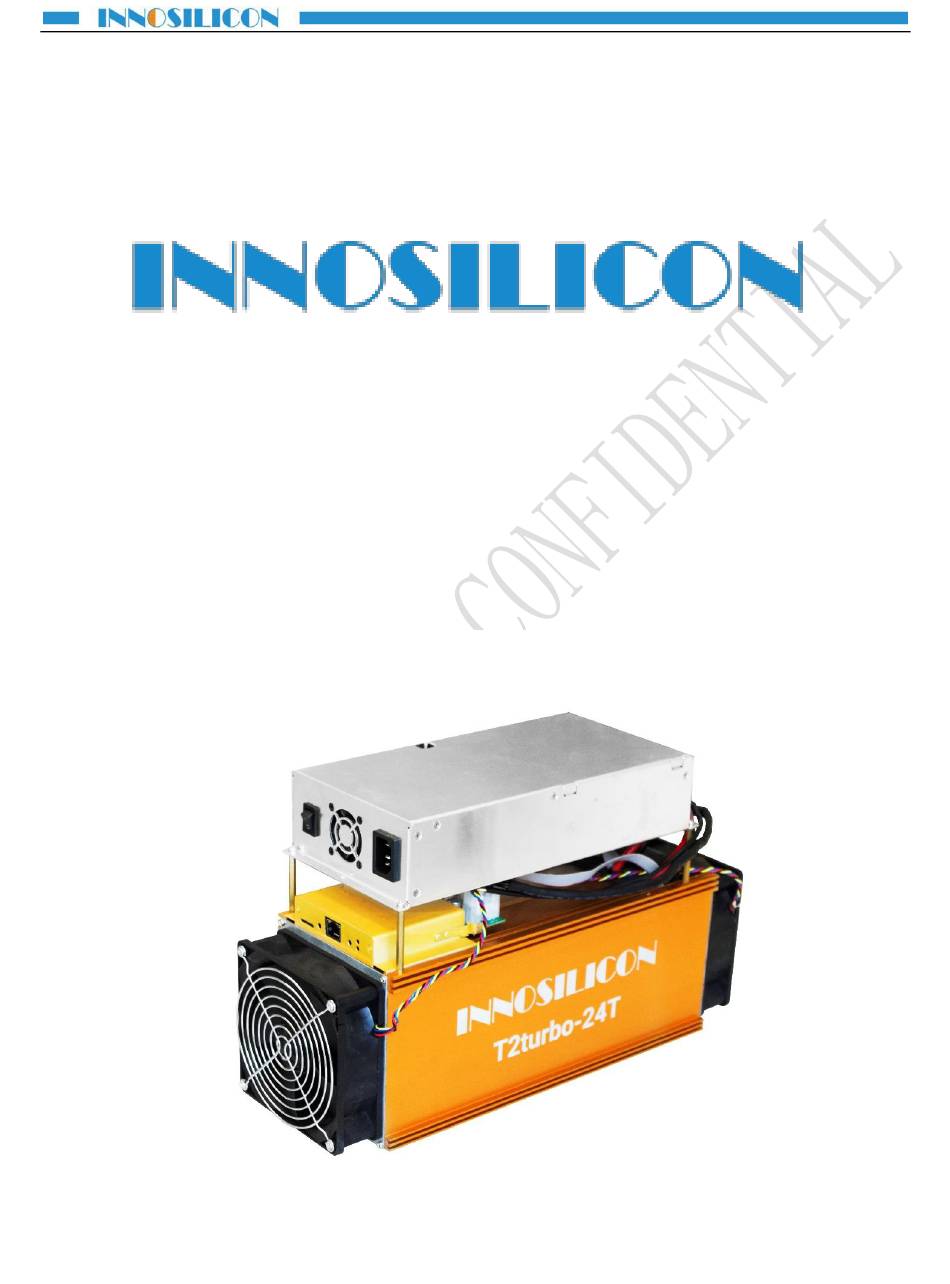

- Page 1 T2T-24T BTC USER MANUAL...
-
Page 2: Table Of Contents
Catalogue 1.Overview ......................0 2. Assemble the miner ..................1 2.1 Open the package to check the miner .................. 1 3.Operate the miner....................4 3.1 Enter the miner console ......................4 3.2 Configure the pool ........................ 4 3.3 View the miner hash rate...................... 5 3.4 Network configuration ...................... -
Page 3: Overview
1.Overview Specifications T2T-24T Part Number Sha256 Algorithm 408mm(L)*135mm(W)*232mm（H） Size (L×W×H) Net Weight 8.82KG (with PSU) 0--40 ℃ Operating Temperature Ethernet Network Connection Typical Hash rate and Power Dissipation parameters under the four Modes:（Pls refer to 3.5.1 in the manual for mode modification） Mode Performance Factory... -
Page 4: Assemble The Miner
2. Assemble the miner 2.1 Open the package to check the miner ⚫ Check whether the warranty sticker is damaged, especially the one on hash boards PSU port side. If the warranty sticker is damaged when you receive the miner, please contact our after-sales personnel in time. ⚫... - Page 5 2.2 Assemble & Operate Notes：The sequence of the PSU cable must be the same with that in the picture below. Damage caused by any private change is not covered by the warranty. Connect the miner and the router by the Ethernet cable and then the miner can start to run after being powered on.
- Page 6 Fault Indicator：The lit indicator means the IP set Button network connection is bad Normal Indicator： Being constantly lit represents Static IP mode and Reset Button flicking represents DHCP mode. （DHCP） IP SET button: Press it for 1 to 4 seconds and the following functions can be realized: (1) Sending the IP miner to the “Set IP”...
-
Page 7: Operate The Miner
3.Operate the miner 3.1 Enter the miner console DHCP is the default IP mode of the miner (The normal indicator now is flickering in green when the DHCP service of the router is enabled.). Find the IP via the router or the IP scanner. Enter the IP of the miner in the browser and press the Enter button to go to the console page of the miner. -
Page 8: View The Miner Hash Rate
3.3 View the miner hash rate After configuring the pool, the miner will mine for you. You can view the hash rate in the Miner Status screen. 3.4 Network configuration... -
Page 9: Change The Operation Mode
3.5 Other pages 3.5.1 Change the operation mode There are 4 modes available and please click the “Save” icon after your modification. 3.5.2 Overview... -
Page 10: Firmware Upgrade
3.5.3 Firmware upgrade 3.5.4 Modify the login password... -
Page 11: Reboot
3.5.5 Reboot 3.5.6 Factory reset...
