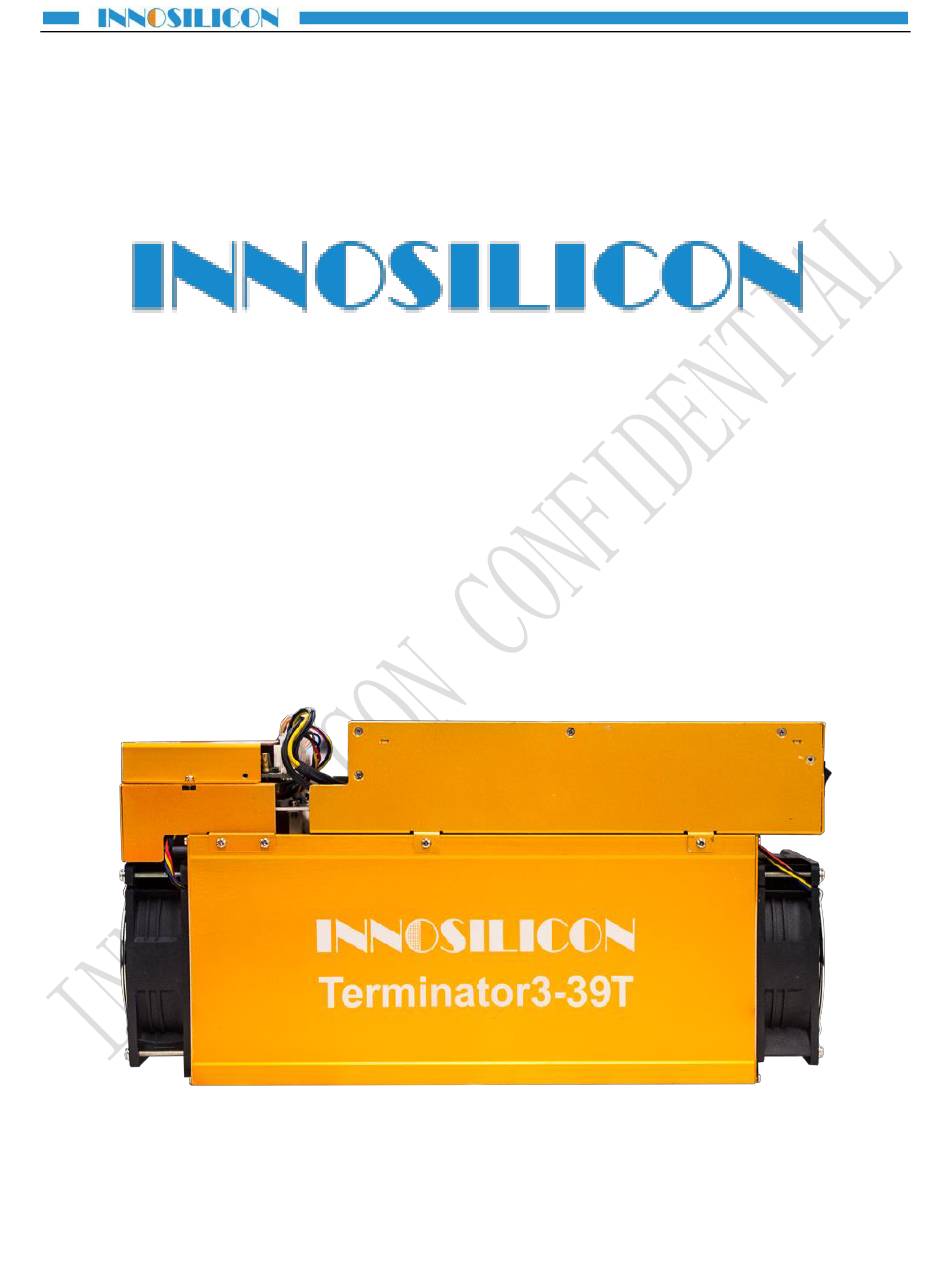

- Page 1 T3S-39T BTC USER MANUAL...
-
Page 2: Table Of Contents
Catalogue 1.Overview ......................0 2. Assemble the miner ..................1 2.1 Open the package to check the miner .................. 1 3.Operate the miner....................4 3.1 Enter the miner console ......................4 3.2 Configure the pool ........................ 5 3.3 View the miner hash rate...................... 6 3.4 Network configuration ...................... -
Page 3: Overview
1.Overview Specifications T3S-39T Part Number Sha256 Algorithm 422mm(L)*142mm(W)*201mm（H） Size (L×W×H) 9.38KG Net Weight 0--40 ℃(device junction temperature) Operating Temperature Ethernet Network Connection Typical Hash rate and Power Dissipation parameters under the four Modes:（Pls refer to 3.5.1 Mode Factory Balance Efficient in the manual Hash rate 39TH±5%... -
Page 4: Assemble The Miner
Being off means the hash board doesn’t work. Please try to reboot the miner or change the data cable. Pls contact our after-sales team if the problem still exists. Innosilicon After-sales Team Email: miner_support@innosilicon.com.cn... - Page 5 (2) Changing the miner to a Static IP within the specific range with the IPset tool Press it for 4 to 15 seconds, the miner IP will be switched to DHCP and the pool settings will be restored to default settings. Innosilicon After-sales Team Email: miner_support@innosilicon.com.cn...
- Page 6 Press it for 15 to 30 seconds to switch the Dynamic (Static) IP to Static (Dynamic). RESET button: Press the “Reset” button to restart the miner. Innosilicon After-sales Team Email: miner_support@innosilicon.com.cn...
-
Page 7: Operate The Miner
Save SetIP in the pc on the same network with the miner, then double click the tool and choose the language. b. Report the miner IP Press the IPset button for 1 to 2 seconds and then the IP of the miners will be displayed here. Innosilicon After-sales Team Email: miner_support@innosilicon.com.cn... -
Page 8: Configure The Pool
Pls configure the pool to start mining after login. Please use the suggested pool as below: 1 f2pool：stratum+tcp://btc-65536.f2pool.com:3333 2 poolin: stratum+tcp://btc-bj.ss.poolin.com:1800 stratum+tcp://btc-sz.ss.poolin.com:1800 3 ckpool：stratum+tcp://cn.ckpool.org:443 stratum+tcp://pool.ckpool.org:3333 4 btc.top：stratum+tcp://t2.btc.top:8888 stratum+tcp://bak.t2.btc.top:3333 5 slushpool：stratum+tcp://stratum.slushpool.com:3333 Pls add “stratum+tcp” before the pool URL Innosilicon After-sales Team Email: miner_support@innosilicon.com.cn... -
Page 9: View The Miner Hash Rate
3.3 View the miner hash rate After configuring the pool, the miner will mine for you. You can view the hash rate in the Miner Status screen. 3.4 Network configuration Innosilicon After-sales Team Email: miner_support@innosilicon.com.cn... -
Page 10: Change The Operation Mode
3.5 Other pages 3.5.1 Change the operation mode There are 4 modes available and please click the “Save” icon after your modification. 3.5.2 Overview Innosilicon After-sales Team Email: miner_support@innosilicon.com.cn... -
Page 11: Firmware Upgrade
3.5.3 Firmware upgrade 3.5.4 Modify the login password 3.5.5 Reboot Innosilicon After-sales Team Email: miner_support@innosilicon.com.cn... -
Page 12: Factory Reset
3.5.6 Factory reset Innosilicon After-sales Team Email: miner_support@innosilicon.com.cn...
