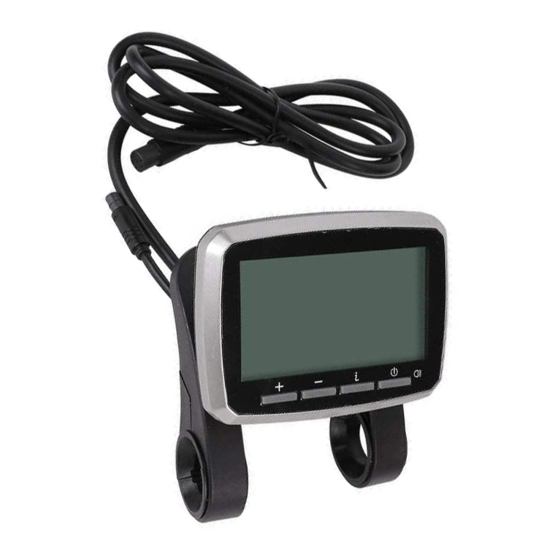

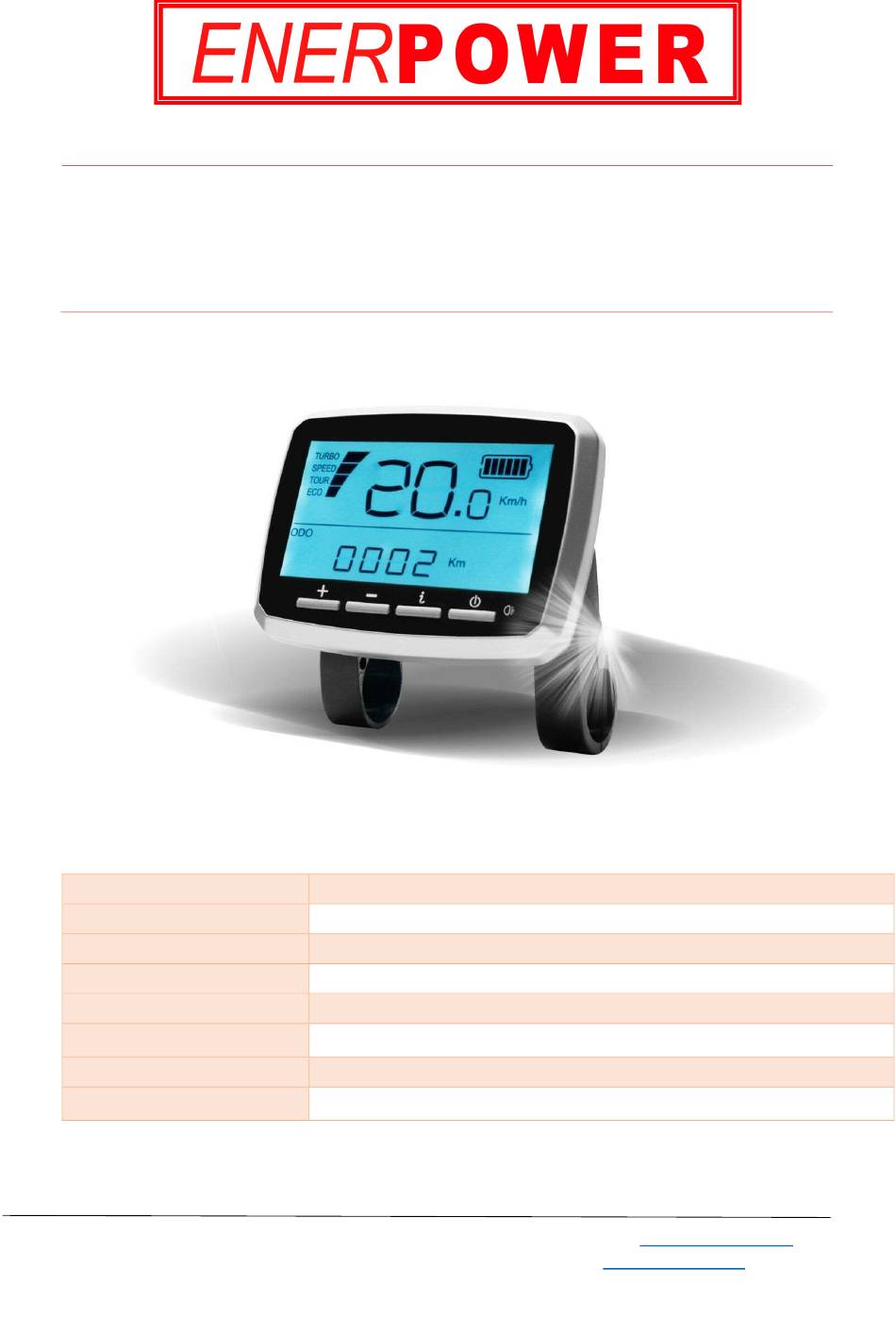

VLCD-5 Display for Electric Bicycle
Product
Operating Voltage
Maximal Operating Current
Display Type
Measuring the speed
Operating Temperature
Backlight
Dimensions
ENERdan GmbH | Max-Planck-Straße 7, D-12489 Berlin, Deutschland
Tel: +49 (0) 30 5770 344 35 | Fax: +49 (0) 30 5770 344 39 |
User Manual
Technical Specifications
VLCD-5
DC 11V - 60V
70mA (11V) 32mA (50V)
(21x4 segment LCD)
1-12 pulses for each round of the wheel
(-20)°C – (+70)°C
LED 200cd/m2 (White LED mode, brightness: 200cd/m2)
(102.5 mm × 75.5 mm×28 mm (exclude thickness of Pedestal)
1
|www.enerpower.de
sales@enerdan.de
Advertisement
Table of Contents
Related Manuals for ENERpower VLCD-5
Summary of Contents for ENERpower VLCD-5
-
Page 1: Technical Specifications
VLCD-5 Display for Electric Bicycle User Manual Technical Specifications Product VLCD-5 Operating Voltage DC 11V - 60V Maximal Operating Current 70mA (11V) 32mA (50V) Display Type (21x4 segment LCD) Measuring the speed 1-12 pulses for each round of the wheel Operating Temperature (-20)°C –... -
Page 2: Table Of Contents
Table of Contents Technical Specifications ........................1 1. General Information ........................3 2. Installation ............................3 3. VLCD-5 Wire System Legend ......................4 4. Function Description ........................4 5. Operation Procedure ........................5 5.1 Button definition ........................5 5.2 Operation and Setting ......................5 ENERdan GmbH | Max-Planck-Straße 7, D-12489 Berlin, Deutschland... -
Page 3: General Information
1. General Information This intelligent VLCD-5 device is designed especially for electric bicycle. It’s mainly used to control the power assist, to show the consumption and charge status of the battery, to measure and show the speed of the bicycle and to record the trip distance. -
Page 4: Vlcd-5 Wire System Legend
3. VLCD-5 Wire System Legend Orange RX (Receiver) Brown TX (Transmitor) White Low current Green Power Black Earthing Purple Brakes 4. Function Description Speed display: Shows current speed in Km/h or Mile/h (switchable). Battery state indicator: Four horizontal bars show the state of battery charge (each bar stands for about 25% of remaining capacity);... -
Page 5: Operation Procedure
Use the +/- buttons to adjust the power assist level. The default is ECO (minimum) assist. Image 5 - Power Assist Levels ENERdan GmbH | Max-Planck-Straße 7, D-12489 Berlin, Deutschland |www.enerpower.de Tel: +49 (0) 30 5770 344 35 | Fax: +49 (0) 30 5770 344 39 | sales@enerdan.de... - Page 6 In the trip distance state (TRIP), press the Info button for 2 seconds to reset the counter and the time. Image 7 - Trip Distance (TRIP) ENERdan GmbH | Max-Planck-Straße 7, D-12489 Berlin, Deutschland |www.enerpower.de Tel: +49 (0) 30 5770 344 35 | Fax: +49 (0) 30 5770 344 39 | sales@enerdan.de...
- Page 7 (see table below). Error code Image 10 - Diagnostic Code Wrench icon ENERdan GmbH | Max-Planck-Straße 7, D-12489 Berlin, Deutschland |www.enerpower.de Tel: +49 (0) 30 5770 344 35 | Fax: +49 (0) 30 5770 344 39 | sales@enerdan.de...
- Page 8 The number represents the number of pulses from one complete rotation of the wheel. ENERdan GmbH | Max-Planck-Straße 7, D-12489 Berlin, Deutschland |www.enerpower.de Tel: +49 (0) 30 5770 344 35 | Fax: +49 (0) 30 5770 344 39 | sales@enerdan.de...
- Page 9 ON/OFF. Default is OFF. Press and hold the – button for 3 seconds in neutral to enter the 6Km/h rotation motor, when selecting is available. Image 14 - 6Km/h Function ENERdan GmbH | Max-Planck-Straße 7, D-12489 Berlin, Deutschland |www.enerpower.de Tel: +49 (0) 30 5770 344 35 | Fax: +49 (0) 30 5770 344 39 | sales@enerdan.de...
- Page 10 Use the Info button to enter the mold submenu, press + button to switch between Japan and Europe. Default is Europe. Image 17 - Zone Mode Setting (M) ENERdan GmbH | Max-Planck-Straße 7, D-12489 Berlin, Deutschland |www.enerpower.de Tel: +49 (0) 30 5770 344 35 | Fax: +49 (0) 30 5770 344 39 | sales@enerdan.de...
- Page 11 ODO → TRIP → AVG → TIME → TE → TE1 Image 19 - Torque Signal Value Display (TE, TE1) ENERdan GmbH | Max-Planck-Straße 7, D-12489 Berlin, Deutschland |www.enerpower.de Tel: +49 (0) 30 5770 344 35 | Fax: +49 (0) 30 5770 344 39 | sales@enerdan.de...
-
Page 12: Ec Declaration Of Conformity
ENERdan GmbH are marketed complies with the essential health and safety requirements of the EC directives. Identification of products / product types Article 899500020 Tongsheng Display VLCD-5 This product complies with the following EC directives 2001/95 / EC DIRECTIVE FOR GENERAL PRODUCT SAFETY ...
