TSDZ2 Central Motor Drive System

Installation Manual

ENERdan GmbH | Max-Planck-Straße 7, D-12489 Berlin, Germany |
www.enerpower.de
Tel: +49 (0) 30 5770 344 35 | Fax: +49 (0) 30 5770 344 39 | sales@enerdan.de
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TSDZ2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ENERpower TSDZ2

Summary of Contents for ENERpower TSDZ2

  • Page 1: Installation Manual

    TSDZ2 Central Motor Drive System Installation Manual ENERdan GmbH | Max-Planck-Straße 7, D-12489 Berlin, Germany | www.enerpower.de Tel: +49 (0) 30 5770 344 35 | Fax: +49 (0) 30 5770 344 39 | sales@enerdan.de...

  • Page 2: Table Of Contents

    This product complies with the following EC directives ............. 14 Applicable standards ........................14 Responsibility ..........................14 ENERdan GmbH | Max-Planck-Straße 7, D-12489 Berlin, Germany | www.enerpower.de Tel: +49 (0) 30 5770 344 35 | Fax: +49 (0) 30 5770 344 39 | sales@enerdan.de...

  • Page 3: General Information

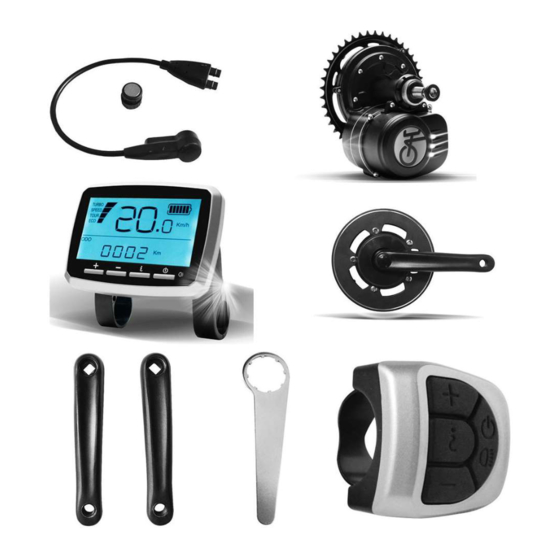

    1. General Information This manual elaborates the installation process of a TSDZ2 central motor drive system from Tongsheng, imported and distributed by ENERdan GmbH under the brand ENERpower. This manual will guide you step by step throughout the installation process.

  • Page 4: Parts List

    14. Wrench (1) 15. 170MM crank-arm (1) (1 set) 16. 1 VLCD display manual (Chinese & English) (1) 17. TSDZ2 center motor install manual (1) ENERdan GmbH | Max-Planck-Straße 7, D-12489 Berlin, Germany | www.enerpower.de Tel: +49 (0) 30 5770 344 35 | Fax: +49 (0) 30 5770 344 39 | sales@enerdan.de...

  • Page 5: Motor Installation

    3. Tighten the securing plate and the motor with two M5×16 screws. Image 2 ENERdan GmbH | Max-Planck-Straße 7, D-12489 Berlin, Germany | www.enerpower.de Tel: +49 (0) 30 5770 344 35 | Fax: +49 (0) 30 5770 344 39 | sales@enerdan.de...

  • Page 6: Step 3: Screwing The M33.5 Nut Onto The Bb Axle

    2. Using a M8 * 45 bolt and the hang-plate to tighten the fixing block and motor. Image 4 ENERdan GmbH | Max-Planck-Straße 7, D-12489 Berlin, Germany | www.enerpower.de Tel: +49 (0) 30 5770 344 35 | Fax: +49 (0) 30 5770 344 39 | sales@enerdan.de...

  • Page 7: Step 5: Tightening The Bolt

    Using M8×14 bolts to install the arm-cranks. The locking torque is 40N.m. Image 6 ENERdan GmbH | Max-Planck-Straße 7, D-12489 Berlin, Germany | www.enerpower.de Tel: +49 (0) 30 5770 344 35 | Fax: +49 (0) 30 5770 344 39 | sales@enerdan.de...

  • Page 8: Display Installation

    Install the left hand remote control buttons.Please refer to Image 8. Image 8 ENERdan GmbH | Max-Planck-Straße 7, D-12489 Berlin, Germany | www.enerpower.de Tel: +49 (0) 30 5770 344 35 | Fax: +49 (0) 30 5770 344 39 | sales@enerdan.de...

  • Page 9: Detective Sensor Installation

    Connect the display and operation button. Please refer to Image 10. Image 10 ENERdan GmbH | Max-Planck-Straße 7, D-12489 Berlin, Germany | www.enerpower.de Tel: +49 (0) 30 5770 344 35 | Fax: +49 (0) 30 5770 344 39 | sales@enerdan.de...

  • Page 10: Step 2: Inserting The Brake-Levers Plugs

    Step 3: Connecting the main motor and the display Please refer to Image 12. Image 12 ENERdan GmbH | Max-Planck-Straße 7, D-12489 Berlin, Germany | www.enerpower.de Tel: +49 (0) 30 5770 344 35 | Fax: +49 (0) 30 5770 344 39 | sales@enerdan.de...

  • Page 11: Step 4: Connecting The Main Motor And The Detective Sensor

    Please refer to Image 14. Connect the motor to the battery using the XT-60 connector. Image 14 ENERdan GmbH | Max-Planck-Straße 7, D-12489 Berlin, Germany | www.enerpower.de Tel: +49 (0) 30 5770 344 35 | Fax: +49 (0) 30 5770 344 39 | sales@enerdan.de...

  • Page 12: System Connection

    9. System Connection ENERdan GmbH | Max-Planck-Straße 7, D-12489 Berlin, Germany | www.enerpower.de Tel: +49 (0) 30 5770 344 35 | Fax: +49 (0) 30 5770 344 39 | sales@enerdan.de...

  • Page 13: Motor Dimensions (In Mm)

    10. Motor Dimensions (in mm) ENERdan GmbH | Max-Planck-Straße 7, D-12489 Berlin, Germany | www.enerpower.de Tel: +49 (0) 30 5770 344 35 | Fax: +49 (0) 30 5770 344 39 | sales@enerdan.de...

  • Page 14: Ec Declaration Of Conformity

    EC directives. Identification of products / product types  Article 899500001 Tongsheng TSDZ2 36V 250 Watt Mid-Drive Engine + Battery + Charger  Article 899500011 Tongsheng TSDZ2 48V 250 Watt Mid-Drive Engine + Battery + Charger This product complies with the following EC directives ...
