雪櫃使用說明書 Household Refrigerators Operating Instructions 產品型號:WF2T201/WF2T221/WF2T241/WF2T2 3/WF2T321/WF2T323 Model:WF2T201/WF2T221/WF2T241/WF2T253/WF2T321/WF2T323 星級服務 STAR SERVICE 查詢熱線 Star Hotline 香港 Hong Kong:2406 9138 澳門 Macau:0800157 www.whirlpool.com.hk 此標誌表示使用過的電器及電子產品,不可混入一般家居廢物。 切勿嘗試自行拆解系統或組件,以免對你您的健康或對環境造成不良影響。 雪櫃應在專門的回收處理設施內進行循環回收和修復,並不可棄置於一般廢物流中。 • • 請聯絡安裝技師、經銷商或本地授權機構以獲取更多資訊。 感謝您購買惠而浦雪櫃 Thank you for choosing our products • • 使用前請仔細閱讀本使用說明書 Please read this instruction carefully before use This symbol mark means that used electrical and electronic products shall not be mixed with general household waste.
Dear User, Thank you for choosing our products. We are sure you will find your new applianceis pleasure to use. Before you use the appliance, we recommend that you read through these instructions carefully and retain for future reference. Design and specification may change due to product development, no prior notice will be given.

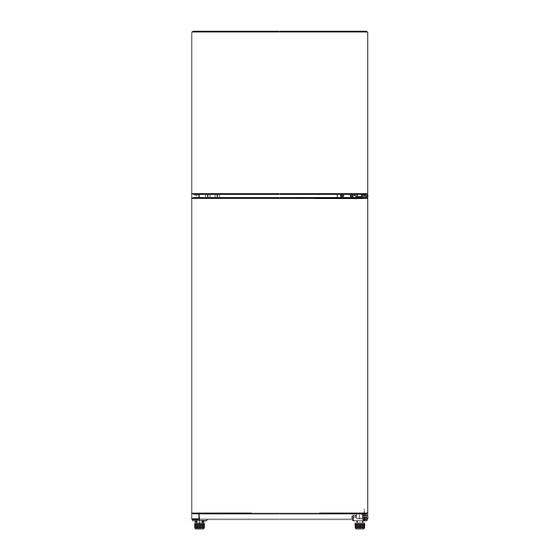

Overview Diagram (WF2T201) Freezer Compartment Fridge Compartment Air flow channel cover in freezer compartment Vegetable compartment Freezer temperature control Adjustable feet Freezer spill-proof tempered glassed shelf Freezer Door Twist ice maker tray Freezer door bins LED light Freezer door seal...
Page 26
Overview Diagram (WF2T221) Freezer Compartment Fridge Compartment Vegetable compartment glass shelf Air Flow channel cover in freezer compartment Freezer temperature control Vegetable compartment Freezer spill-proof Tempered glassed shelf Adjustable feet Twist ice maker tray Freezer door Freezer door seal LED light Easy Storage Zone cover...
Page 27
Overview Diagram ( WF2T241/WF2T253 Freezer Compartment Fridge Compartment Air flow channel cover in freezer compartment Vegetable compartment Freezer temperature control Adjustable feet Freezer spill-proof tempered glassed shelf Freezer door Twist ice maker tray Freezer door bins LED light Freezer door seal Easy Storage Zone cover Fridge door seal Easy Storage Zone...
Page 28
Overview Diagram (WF2T321/WF2T323) Freezer Compartment Fridge Compartment Air flow channel cover in freezer compartment Vegetable compartment Freezer temperature control Adjustable feet Freezer spill-proof tempered glassed shelf Freezer door Freezer door bins Twist ice maker tray LED light Freezer door seal Easy Storage Zone cover Fridge door seal Easy Storage Zone...
Safety Instructions Safety Labels This mark This mark indicates This mark indicates the the user should indicates the issues strictly prohibited strictly follow the that users must pay behaviors which operating attention to. Or it may cause instructions. may cause product product damage Or it may cause Prohibit...
Page 30
Safety Instructions • Do not unplug the appliance by pulling on the electrical cord. Always grip the plug firmly and pull straight out from the socket to prevent damaging the power cord. • Make sure the power cord is not squashed, damaged or overly bended, and do not touch the power cord and plug with wet hands.
Page 31
Safety Instructions • Do not touch the food or cans in the freezer with wet hands to avoid frostbite. • The gaps between door and door or cabinet and door are very small, do not put hands into it to avoid pinching fingers. Please be gentle when switching off the refrigerator door to avoid falling articles.
Product Introduction Moving and Placement • Do not move the refrigerator with its doors or handles, please move by lifting up the bottom of it. Do not invert, horizontally lay, squeeze or vibrate the refrigerator. When move the refrigerator, do not decline •...
Product Introduction Cleaning and Maintenance • Unplug or disconnect power before cleaning. • Dusts behind the refrigerator and on the ground shall be timely cleaned to improve the cooling effect and energy saving. The interior of the refrigerator should be cleaned regularly to avoid odor. Clean the glass shelves •...
Using your Appliance Product Features • Unpack all the packaging materials including the base and adhesive tape. • Check the accessories and documents inside the package according to packing list, contact the shop from which you purchased if anything is missing. •...
Using your Appliance How to use your refrigerator correctly and effectively Temperature Control Adjusting the Freezer Compartment Temperature • The temperature control allows you to adjust the flow of cold air into the Freezer. • In case of too much frozen food, ice making or the cooling effect is not ideal in chamber. Please set the temperature control knob at "Max."...
Using your Appliance Adjusting the Fridge Compartment Temperature • Also, do not place too much food directly against the air flow of the temperature sensor part in air flow channel cover of the NOTICE Fridge compartment, as it the air outlet of affects that the appliance cannot Temperature sensor operate correctly.
Using your Appliance How to use the freezer compartment • The freezer is used to store the frozen food and • After buying the fast frozen food, it should be make ice, the default temperature is -18℃. Foods stored in the freezer before it unfreezes. that need to be frozen for a long period of time should store in this compartment.
Using your Appliance How to use the fridge compartment • Door rack It is suitable for the storage of eggs, canned liquid, bottled drinks and packed food, etc. Do not place too many heavy things in the racks. Small rack on lower door can be placed at different heights according to your requirements.Please take food out of the shelf before lifting vertically to reposition.
Page 39
Using your Appliance How to use the fridge compartment • The fridge compartment is used for storing • Drain the vegetables thoroughly before storage, non-frozen food and beverage. Put the food high humidity is not good and vegetables that you need to eat for preservation anytime or for short-time storage •...
• When closing one of the doors, the another one may be opened because of the air flow pressure, which are normal. Trouble Shooting For following troubles, check if the possible cause and solution. If the problems still cannot be solved, please contact Whirlpool service centre. Problems Possible Cause & Solution Refrigerator is not working •...
Page 41
Failure Analysis Problems Possible Cause & Solution • Check if food with peculiar smell kept with seal Odors from the compartments • Check if some food spoilages • Check if the interior needs to be cleaned • Check if there are too many hot food stored •...
Specifications WF2T201 Model No. Total Storage Volume(L) Freezer Volume(L) Fresh-food Volume(L) Climate Type Protection Against Electric Shock Star Level Mark Rated Voltage/Frequency 220-240V~50Hz Rated Current(A) Energy Efficiency Class Refrigerant, Amount R600a(40g) 51.3 Net Weight(kg) 550X605X1456 Dimensions(W*D*H)(mm) Suggested Overall Space 750X705X1556 Required In Use (W*D*H)(mm) Design and specification may change due to product development, no prior notice will be given.
Page 43
Specifications Model no. WF2T221 Total Storage Volume (L) Freezer Volume (L) Fresh-food Volume (L) Climate Type Protection Against Electric Shock Star Level Mark 220-240V~50Hz Rated Voltage/Frequency Rated Current(A) Energy Efficiency Class Refrigerant, Amount R600a(43g) 52.6 Net Weight (kg) 550X605X1556 Dimensions (W*D*H) (mm) 750X705X1656 Suggested Overall Space Required In Use (W*D*H) (mm)
Page 44
Specifications WF2T321/WF2T323 Model No. Total Storage Volume(L) Freezer Volume(L) Fresh-food Volume(L) Climate Type Protection Against Electric Shock Star Level Mark 220-240V~50Hz Rated Voltage/Frequency 0.9/ 0.8 Rated Current(A) Energy Efficiency Class Refrigerant, Amount R600a(52g) Net Weight(kg) 62.3 595X675X1696 Dimensions(W*D*H)(mm) Suggested Overall Space 795X775X1796 Required In Use (W*D*H)(mm) Design and specification may change due to product development, no prior notice will be given.
Accessories list WF2T241/ WF2T321/ WF2T22 1 WF2T20 1 Accessories Name WF2T25 WF2T323 Usual Mannul Warranty Card Fridge Tempered Glass Shelves Easy Storage Zone Fridge Door Bins Vegetable Compartment Vegetable Compartment Glass Shelf Egg Tray Freezer Tempered Glass Shelves Freezer Freezer Door Bins Twist Ice Maker Tray The actual product you have may differ in outlook, color and drawings from the manual, due to the update of the product.
