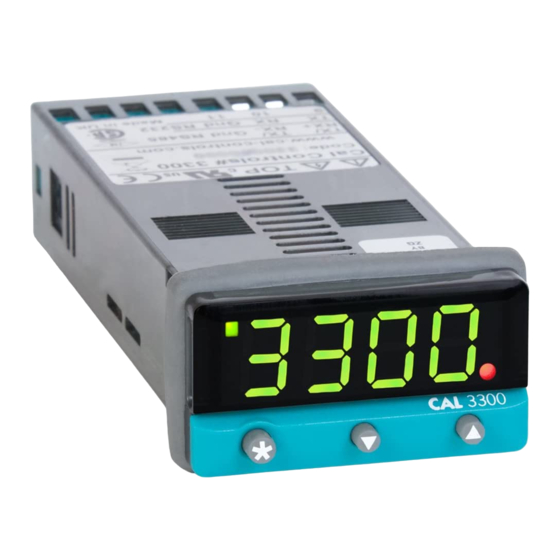

Summary of Contents for CAL Controls CAL 3300
- Page 1 Artisan Technology Group is your source for quality new and certified-used/pre-owned equipment SERVICE CENTER REPAIRS WE BUY USED EQUIPMENT • FAST SHIPPING AND DELIVERY Experienced engineers and technicians on staff Sell your excess, underutilized, and idle used equipment at our full-service, in-house repair center We also offer credit for buy-backs and trade-ins •...
- Page 2 Users Manual CAL 3300 / 9300 / 9400 Autotune Temperature Controllers CAL Controls Temperature Controllers Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
-
Page 3: Instrument Panel Features
INDEX INSTRUMENT PANEL FEATURES This page can be photocopied and used as a visual aid and bookmark when working in other parts of the manual. FUNCTIONS MENU GETTING STARTED Initial Set-up AUTOTUNE Tune or tune at setpoint program PROPORTIONAL CYCLE-TIME Cycle-time recommendations PROGRAMMER Ramp-Soak... -
Page 4: Functions Menu
FUNCTIONS MENU Range of Adjustment shown under description. This page can be photocopied and If applicable, factory settings shown in bold. used as a visual aid and bookmark when working in other parts of the manual. Note: The letter K appears in the instrument display as the character LEVL 4 LOCK PROG NO.AL DIS.S DER.S... -
Page 5: Getting Started
GETTING STARTED Select SP1 (Main setpoint output device) After power-up the controller requires programming with the following information: Note: Dual Relay and Dual SSd Output Options Models have their outputs Type of Sensor (See list of temperature sensors p.11) pre-configured. Move to Step 4. Operating unit (See list of units p.8) Allocation of Output Device to SP1/SP2 (Relay or SSd) Press and hold... -
Page 6: Proportional Cycle-Time
PROGRAMMER Hereafter in the Manual the symbol ( ) signifies both buttons are held pressed for 3 seconds to ENTER or EXIT Program mode. RAMP-SOAK TUNE OR TUNE AT SETPOINT PROGRAM This feature enables the controller to ramp up or down from current temperature to a Enter program ( ) and from the display tunE : oFF press and hold and press... -
Page 7: Second Setpoint (Sp2)
SP2 ALARM ANNUNCIATOR SECOND SETPOINT (SP2) When an SP2 alarm mode is selected in SP2.A the alarm annunciator -AL- is displayed, SECOND SETPOINT (SP2) Alarm Output alternating with the process temperature, during alarm condition. Configure SP2 output to operate as an alarm from SP2.A in Level 2 and set the Notes: The alarm will be automatically reset when the temperature returns within the temperature alarm setting in SEt.2 Level 1. - Page 8 FUNCTION LIST (LEVELS 1 TO 4) PROGRAMMER SETTINGS (see page 5) Function Options [Factory settings] shown in brackets Note: A Functions Menu is shown on page 3. SPrr [0] to 9995 deg/hour Sets the ramp rate LEVEL 1 LEVL 1 SPrn on [oFF] hoLd Function Options...
- Page 9 burn Sensor burn-out/break protection SP2 OPERATING MODES (see page 6) Caution: Settings affect fail safe state. Function Options [Factory settings] shown in brackets [uP.SC] Upscale Upscale dn.SC Downscale Downscale SP2.A [nonE] dV.hi dV.Lo bAnd FS.hi FS.Lo Cool 1u.2d Upscale Downscale Main SP2 operating mode 1d.2u Downscale...
-
Page 10: Mechanical Installation
LEVEL 4 DIN PANEL CUTOUT LEVL 4 1/16 DIN: 45.0mm +0.6 / 0.0 wide, 45.0mm +0.6 / 0.0 high Access to level 4 is gained through UEr in level 3. Press and hold for 10 1/32 DIN: 45.0mm +0.6 / -0 wide, 22.2mm +0.3 / -0 high seconds. -
Page 11: Electrical Installation
ELECTRICAL INSTALLATION EN61010 - /CSA 22.2 No 1010.1 92 Compliance shall not be impaired when fitted to the final installation. (See important Safety Information page 12) Designed to offer a minimum of Basic Insulation only. The body responsible for the installation is to ensure that supplementary insulation suitable OUTPUT DEVICES for Installation Category II or III is achieved when fully installed. -
Page 12: Sensor Selection
SENSOR SELECTION Linear process inputs mV range: 0 to 50mV Applicable to all inputs SM = sensor maximum Thermocouples Description Sensor range Linearity Calibration accuracy: ±0.25%SM ±1°C tC b Pt-30%Rh/Pt-6%Rh 0 to 1800 °C 2.0 * Sampling frequency: input 10Hz, CJC 2 sec. tC E Chromel/Con 0 to 600 °C... -
Page 13: Safety And Warranty Information
3 Components which wear, or damage with misuse, are excluded e.g. relays. 4 CAL Controls shall not be responsible for any damage or losses however caused, which may be experienced as a result of the installation or use of this product. - Page 14 CAL Controls Temperature Controllers CAL Controls Ltd Bury Mead Road, Hitchin, Herts, SG5 1RT. UK Tel: + 44 (0)1462-436161 Fax: + 44 (0)1462-451801 email: support@cal-controls.co.uk http://www.cal-controls.com CAL Controls Inc 1580 S.Milwaukee Avenue, Libertyville, IL 60048. USA Tel: (847) 680-7080 Fax: (847) 816-6852 33017/01/0299 Artisan Technology Group - Quality Instrumentation ...
