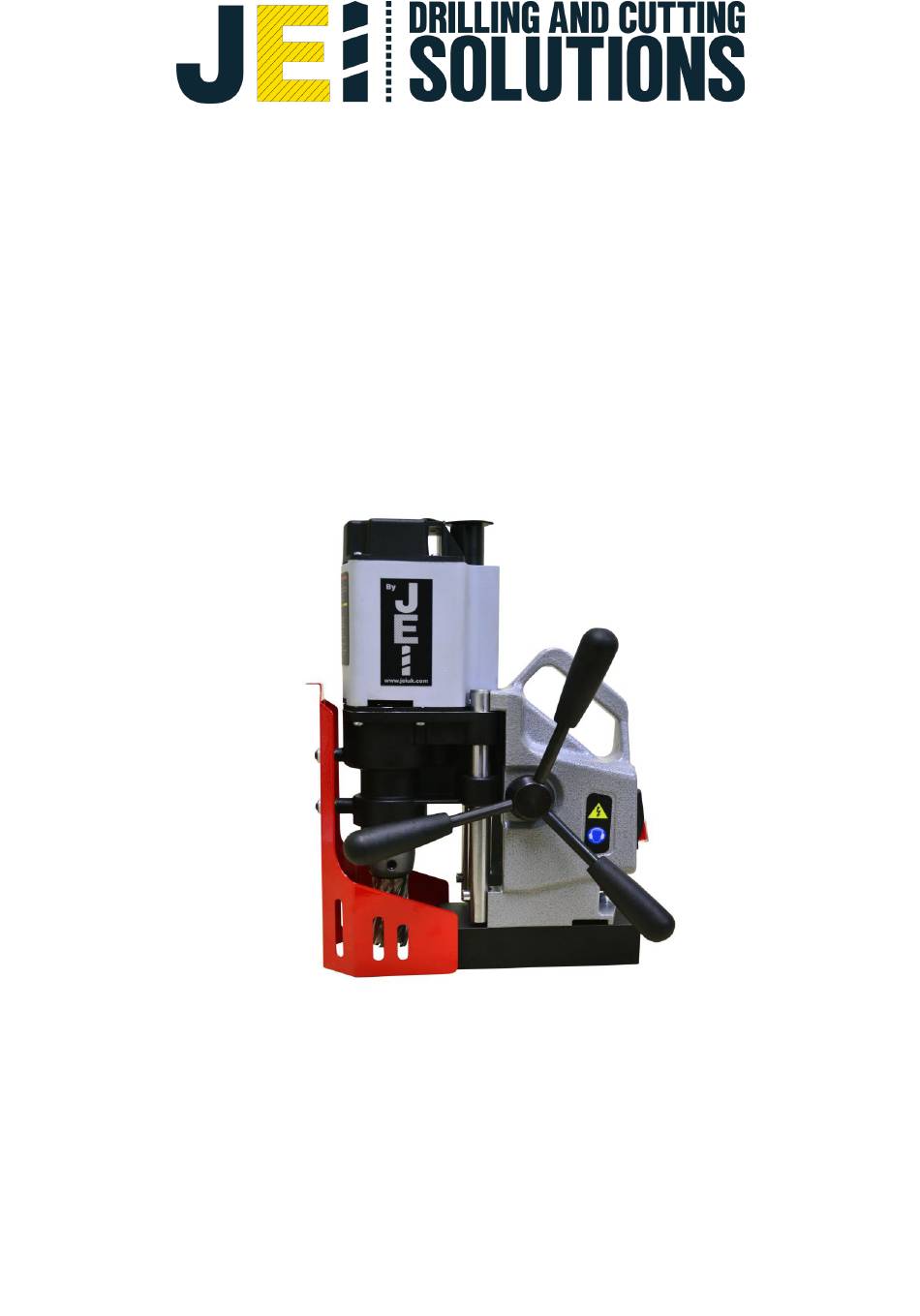

- Page 1 OPERATOR’S MANUAL PORTABLE MAGNETIC DRILLING MACHINE UNIT 21 EMPIRE BUSINESS PARK, ENTERPRISE WAY BURNLEY, LANCASHIRE, UK, BB12 6LT TEL: 01706 229490 EMAIL: sales@jeisolutions.co.uk...
-
Page 2: Table Of Contents
WWW.JEIUK.COM Contents 1. General Information…………………………………………..………………….…..3 2. Safety Precautions…………………………………………..……………………….4 3. Start up and Operation……………………………………..………………………..5 3.1 Operating instructions before you begin………………………………………5 3.2 Before you cut…………………………...……………………………………….5 3.3 Ready to make the cut…………………………………………………………..6 4. Correct cutter usage………………………………………………...……………….7 3.4 After the cut………………………………………………………………………7 5. Wiring diagram…………..……………………………………………………………9 6. -
Page 3: General Information
WWW.JEIUK.COM 1. GENERAL INFORMATION Model MINIBEAST Weight 10kg Cutter Capacity 35mm Ø x2" depth of cut Twist Drill Capacity 12mm with twist drill set Motor 1010 watts Height Min/Max Min 307 / Max 377 Length 240mm Width 166mm Single Speed 350 RPM... -
Page 4: Safety Precautions
WWW.JEIUK.COM 2. SAFETY PRECAUTIONS 1. Before starting, read this Operator’s Manual and complete proper occupational safety and health training. 2. Machine must be used only in applications specified in Operator’s Manual. 3. Machine must be complete and all parts must be genuine and fully operational. 4. -
Page 5: Startup And Operation
If the plug will not fit the outlet, have a proper outlet installed by a qualified electrician. The Minibeast must be plugged into an appropriate outlet, properly installed and grounded in accordance with all codes and ordinances. -
Page 6: Ready To Make The Cut
2. When using the annular cutter arbor fill coolant reservoir with a water-soluble coolant. 3. Position the Minibeast on the work piece. 4. Lower cutter / drill to surface of materiel. When using cutter tool holder, coolant flow starts when pilot pin is depressed. Lifting pilot pin off work surface will stop coolant flow. -
Page 7: Correct Cutter Usage
Correct Cutter Usage IMPORTANT INFORMATION Only use your Minibeast to cut through single layers of material when using standard annular cutters. Do not attempt to cut through multiple layers/stacks/laminates of material with your Minibeast magnetic drilling machine using standard annular cutter. Once the first plate has been drilled, the centre slug will retain in the cutter. - Page 8 WWW.JEIUK.COM 2. After the cut is finished return motor to the full upright position, depress motor OFF button wait until motor fully stops. Move magnet switch to the OFF position to release the magnetic base from the material. SPARE PART DIAGRAMS AND PARTS LIST ARE AVAILABLE TO DOWNLOAD FROM WWW.JEIUK.COM This document is protected by copyrights.
-
Page 9: Wiring Diagram
WWW.JEIUK.COM Wiring Diagram This document is protected by copyrights. Copying, using, or distributing without permission of Ansa Group Ltd is prohibited. -
Page 10: Ec Declaration Of Conformity
UNIT 21 EMPIRE BUSINESS ENTERPRISE WAY BURNLEY, LANCASHIRE, BB12 6LT Declare with full responsibility that product: MINIBEAST DRILLING MACHINE which the declaration applies to is in accordance with the following standards: is manufactured in accordance with the following standards: • EN 62841-1:2015 •... -
Page 11: Warranty Card No
WARRANTY CARD No..................in the name of Manufacturer warrants the Minibeast Drilling Machine to be free of defects in material and workmanship under normal use for a period of 12 months from date of sale. This warranty does not cover cutting tools, damage or wear that arise from misuse, accident, tempering or any other causes not related to defects in workmanship or material.
