User Manual
PowerWalker VFI 30K CPG 3/3
PowerWalker VFI 40K CPG 3/3
EN
Uninterruptible Power Supply System

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VFI 30K CPG 3/3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PowerWalker VFI 30K CPG 3/3

Summary of Contents for PowerWalker VFI 30K CPG 3/3

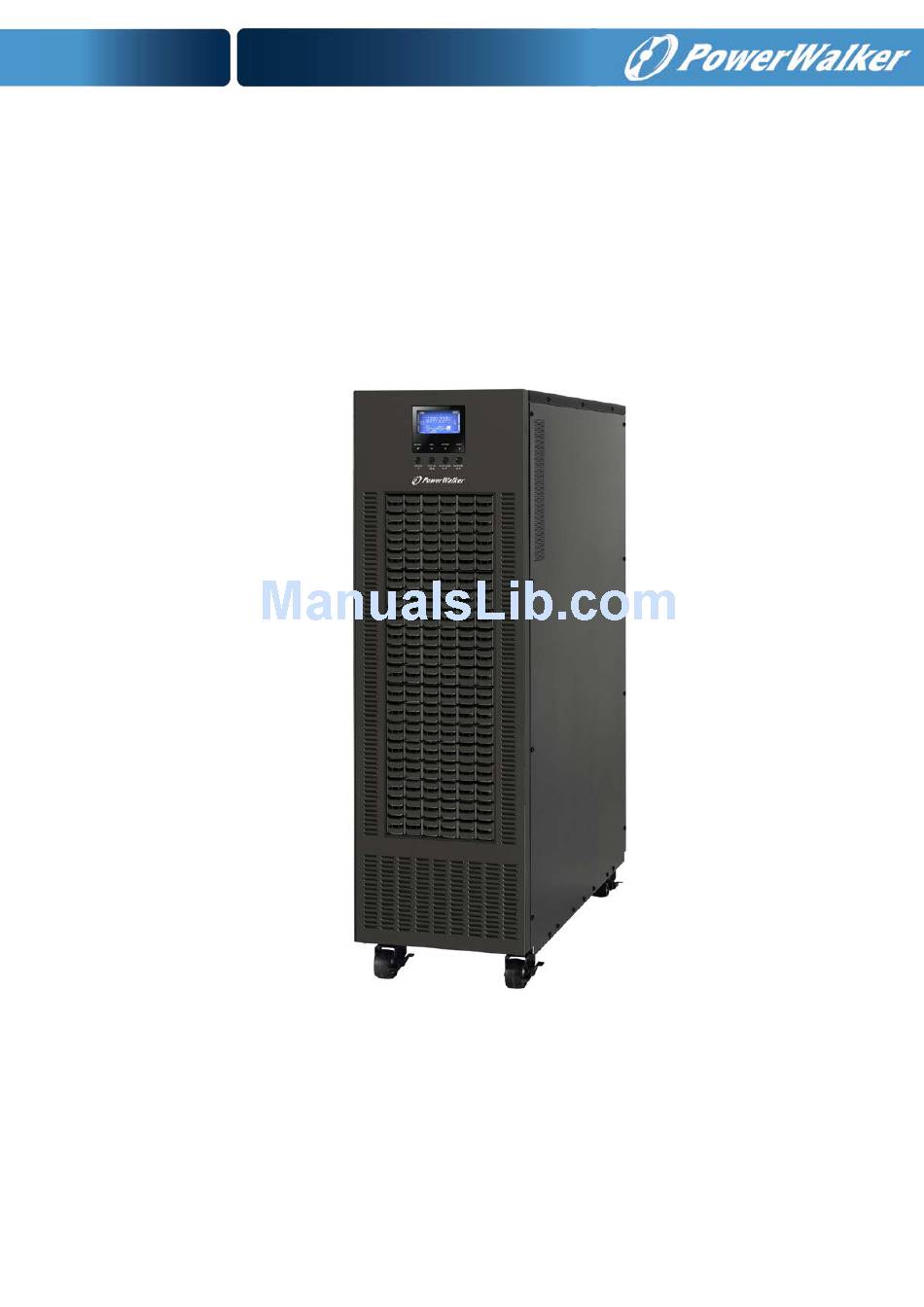

  • Page 1 User Manual PowerWalker VFI 30K CPG 3/3 PowerWalker VFI 40K CPG 3/3 Uninterruptible Power Supply System...
  • Page 2 Please comply with all warnings and operating instructions in this manual strictly. Save this manual properly and read carefully the following instructions before installing the unit. Do not operate this unit before reading through all safety information and operating instructions carefully.

  • Page 3: Table Of Contents

    Table of Contents 1. SAFETY AND EMC INSTRUCTIONS ......................... 1 1-1. T RANSPORTATION AND TORAGE ........................... 1 1-2. P REPARATION ................................1 1-3. I NSTALLATION ................................1 1-4. O PERATION ................................... 2 1-5. S TANDARDS ................................... 3 2. INSTALLATION AND OPERATION ........................... 4 2-1.

  • Page 4: Safety And Emc Instructions

    1. Safety and EMC instructions Please read carefully the following user manual and the safety instructions before installing the unit or using the unit! 1-1. Transportation and Storage Please transport the UPS system only in the original package to protect against shock and impact.
  • Page 5 1-4. Connection Warnings TN earthing system. • This UPS should be connected with • The power supply for this unit must be single-phase rated in accordance with the equipment nameplate. It also must be suitably grounded. • Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended.

  • Page 6: Operation

    1-5. Operation Do not disconnect the earth conductor cable on the UPS or the building wiring terminals in any time since this would cancel the protective earth of the UPS system and of all connected loads. The UPS system features its own, internal current source (batteries). The UPS output sockets or output terminal blocks may be electrically live even if the UPS system is not connected to the building wiring outlet.

  • Page 7: Installation And Operation

    2. Installation and Operation There are two different types of online UPS: standard and long-run models. Please refer to the following model table. Model Type Model Type 30KL Standard Long-run model 40KL model We also offer optional parallel function for these two types by request. The UPS with parallel function is called as “Parallel model”.

  • Page 8: Rear Panel View

    2-2. Rear Panel View Diagram 1: 40K Rear Panel Diagram 2: 30K Rear Panel...
  • Page 9 Diagram 3: 40KL Rear Panel Diagram 4: 30KL Rear Panel Diagram 5: 30K(L)/ 40K(L) Input/Output Terminal 1.RS-232 communication port 2.USB communication port 3.Emergency power off function connector (EPO connector) 4.Share current port (only available for parallel model) 5.Parallel port (only available for parallel model) 6.Intelligent slot...

  • Page 10: Single Ups Installation

    7. External battery terminal(Only available for long-run model) 8.Line Input circuit breaker (40K(L)) 9.Maintenance bypass switch 10.Input/Output terminal 11.Power stage fan 12.Line Input circuit breaker (30K(L)) 13.Output Grounding terminal 14.Output terminal: connect to mission-critical loads 15.Line input terminal 16.Input Grounding terminal 2-3.
  • Page 11 Terminal Block wiring diagram of 30K(L)/40K(L) NOTE 1: Make sure that the wires are connected tightly with the terminals. NOTE 2: Please install the output breaker between the output terminal and the load, and the breaker should be qualified with leakage current protective function if necessary. Put the terminal block cover back to the rear panel of the UPS.

  • Page 12: Ups Installation For Parallel System

    2-4. UPS Installation for Parallel System If the UPS is only available for single operation, you may skip this section to the next. 1) Install and wires the UPSs according to the section 2-3. 2) Connect the output wires of each UPS to an output breaker. 3) Connect all output breakers to a major output breaker.

  • Page 13: Operations

    3. Operations 3-1. Button Operation Button Function  Turn on the UPS: Press and hold the button more than 0.5s to turn on the UPS. ON/Enter Button  Enter Key: Press this button to confirm the selection in setting menu. ...
  • Page 14 LCD Panel: Display Function Backup time information Indicates the battery discharge time in numbers H: hours, M: minutes, S: seconds Fault information Indicates that the warning and fault occurs. Indicates the fault codes, and the codes are listed in details in section 3-9. Mute operation Indicates that the UPS alarm is disabled.

  • Page 15: Audible Alarm

    Battery information Indicates the Battery capacity by 0-25%, 26-50%, 51-75%, and 76-100%. Indicates the battery is not connected. Indicates low battery level and low battery voltage. Input & Battery voltage information Indicates the input voltage or frequency or battery voltage. Vac: Input voltage, Vdc: battery voltage, Hz: input frequency 3-3.
  • Page 16 3. Connect devices to UPS After the UPS is turned on, you can connect devices to the UPS. 1) Turn on the UPS first and then switch on the devices one by one, the LCD panel will display total load level. 2) If it is necessary to connect the inductive loads such as a printer, the in-rush current of the load should be calculated carefully to see if it meets the overload capability of the UPS.
  • Page 17 there is risk of power loss for connected devices. 2) In Bypass mode, output voltage of the UPS is still present. In order to cut off the output, switch off the line input breaker(for dual input unit, also switch off the bypass line breaker). A few seconds later, there is no display shown on the display panel and UPS is complete off.

  • Page 18: Parallel Operation

    the UPS will enter Bypass mode. If the UPS is in maintenance Bypass mode, turn the maintenance switch to “UPS” position and then turn on the UPS. 3-5. Parallel Operation 1. Parallel system initial startup First of all, please make sure all of the UPSs are parallel models and have the same configuration. 1) Turn on each UPS to AC mode respectively (Refer to section 3-4(1)).

  • Page 19: Abbreviation Meaning In Lcd Display

    parallel and share current cables. And then remove the unit from the parallel system. Second method: 1) If the bypass is abnormal, you can not remove the UPS without interruption. You must cut off the load and shut down the system first. 2) Make sure the bypass setting is enabled in each UPS and then turn off the running system.

  • Page 20: Lcd Setting

    The third phase The first line The second line The third line HS.H Hot Standby 3-7. LCD Setting There are three parameters to set up the UPS. Refer to following diagram. Parameter 1: It’s for program alternatives. Refer Parameter 1 to below tables for the programs to set up.
  • Page 21 Output A voltage calibration Output B voltage calibration Output C voltage calibration *Y means that this program can be set in this mode. Note: All parameter settings will be saved only when UPS shuts down normally with internal or external battery connection.
  • Page 22 04: Frequency range for bypass  Interface Setting Parameter 2: Set the acceptable low frequency for bypass. 50 Hz system: Setting range is from 46.0Hz to 49.0Hz. 60 Hz system: Setting range is from 56.0Hz to 59.0Hz. The default value is 46.0Hz/56.0Hz. Parameter 3: Set the acceptable high frequency for bypass.
  • Page 23 09: Maximum battery discharge time setting  Interface Setting Parameter 3: 000~999: Set the maximum discharge time from 0 min to 999 min. UPS will shut down to protect battery if the discharge time arrives before the battery is under voltage. The default value is 990 min.
  • Page 24 13: Battery voltage calibration  Interface Setting Parameter 2: Select “Add” or “Sub” function to adjust battery voltage to real figure. Parameter 3: the voltage range is from 0V to 9.9V and the default value is 0V. 14: Charger voltage adjustment ...

  • Page 25: Operating Mode/Status Description

    18: Output A voltage calibration  Interface Setting Parameter 2: it always shows OP.V as output voltage. Parameter 3: it shows the internal measurement value of the output A voltage, and you can calibrate it by pressing Up or Down according to the measurement from an external voltage meter.
  • Page 26 Operating mode/status UPS Power On Description When UPS is powered on, it will enter into this mode for a few seconds as initializing the CPU and system. LCD display No-output description When bypass voltage/frequency is out of acceptable range or bypass is mode disabled (or forbidden), UPS will enter into no-output mode if powering on or turning off the UPS.
  • Page 27 ECO mode Description When the input voltage is within voltage regulation range and ECO mode is enabled, UPS will bypass voltage to output for energy saving. LCD display...
  • Page 28 CVCF mode Description When the output frequency is set to “CF”, the inverter will output constant frequency (50 Hz or 60 Hz). At this mode, the UPS will have no bypass output but still charge battery. LCD display Battery mode Description When the input voltage/frequency is beyond the acceptable range or power failure, UPS will backup power from battery and alarm will beep every 4...
  • Page 29 Bypass mode Description When input voltage is within acceptable range and bypass is enabled, turn off the UPS and it will enter Bypass mode. Alarm beeps every two minutes. LCD display Battery Test Description When UPS is in AC mode or CVCF mode, press “Test” key for more than 0.5s. Then, the UPS will beep once and start “Battery Test”.
  • Page 30 Warning Description If some errors occur in the UPS (but it is still running normally), it will show status one more screen to represent the warning situation. In the warning screen, the icon will be flashing, and it can show up to 3 error codes and each code indicates one error.

  • Page 31: Fault Code

    3-9. Fault Code Fault code Fault event Icon Fault code Fault event Icon Bus start failure None Parallel output current None unbalance Bus over None Over temperature None Bus under None DSP communication failure None Bus unbalance None Overload Converter over current None Incorrect UPS setting None...

  • Page 32: 3-11.Warning Code

    Over charge Beeping every second EPO enable Beeping every second Fan failure/Over temperature Beeping every second Charger failure Beeping every second I/P fuse broken Beeping every second Other warnings(refer to 3-11) Beeping every second 3-11.Warning Code Warning code Warning event Warning code Warning event Line situations are different in parallel...

  • Page 33: Trouble Shooting

    4. Trouble Shooting If the UPS system does not operate correctly, please solve the problem by using the table below. Symptom Possible cause Remedy No indication and alarm in the front The AC input power is not Check if input cable firmly display panel even though the mains is connected well.
  • Page 34 Symptom Possible cause Remedy Check and correct the input neutral connection. connection is ok and the alarm is still displaying, please refer to the LCD setting section, to enter the neutral loss check The input neutral wire is menu, to see if the parameter3 The warning code 02 is shown, the disconnected.

  • Page 35: Storage And Maintenance

    5. Storage and Maintenance 5-1. Storage Before storing, charge the UPS at least 7 hours. Store the UPS covered and upright in a cool, dry location. During storage, recharge the battery in accordance with the following table: Storage Temperature Recharge Frequency Charging Duration -25°C - 40°C Every 3 months...

  • Page 36: Specifications

    6. Specifications MODEL 30KL 40KL CAPACITY* 30KVA / 27KW 40KVA / 36KW INPUT 110 VAC(Ph-N) ± 3 % at 50% Load Low Line Loss 176 VAC(Ph-N) ± 3 % at 100% Load Low Line Comeback Low Line Loss Voltage + 10V Voltage Range 300 VAC(L-N) ±...
