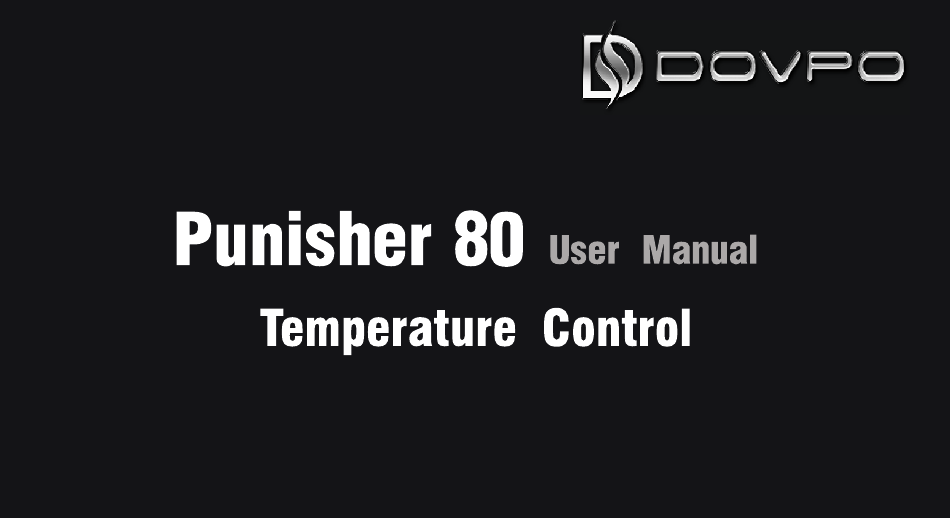

Dovpo Punisher 80 User Manual

Temperature control

Advertisement

Quick Links

Advertisement

loading
Need help?

Need help?

Do you have a question about the Punisher 80 and is the answer not in the manual?

Questions and answers

Summary of Contents for Dovpo Punisher 80

  • Page 2 Size: 91.0mm X 43.0mm X 25.0mm Material: Zinc Alloy Surface: Rubber Paint...
  • Page 3: Specification

    Specification 1. Operating Voltage: 3.3V - 4.2V. 2. Maximum Output Current: 28.5A. 3. Operating Wattage: 5.0W - 80.0W. 4. Temperature control range: 212°F - 572°F/100℃ - 300℃. 5. Temperature control coils working resistance range: 0.1Ω - 1.0Ω. 6. Standard atomizer working resistance range: 0.1Ω - 3.0Ω. 7.
  • Page 4 By press the fire button 5 times quickly after install the battery, the screen will display “DOVPO” and it leads you to the main interface. See picture 1.1 ( In Ni 200 coil temperature control mode ), see picture 1.2 ( In Titanium coil temper- ature control mode ), see picture 1.3 ( In Ss316L mode), see picture 1.4 ( In...
  • Page 5 Operation Guide 2. Auto Power-off / Manual Shutdown 2.1 The device will power-off automatically after 30 minutes no use, you need restart the device by pressing the fire button 5 times quickly to vaping again. 2.2 When in standby mode, press the fire button 5 times quickly, the screen will go dim after display“...
  • Page 6 Operation Guide Set Temperature Real-time Temperature Operating Voltage Puff Counter 5.21V 395℉ ℉ 49.0w 3.45V Picture 4.1 Picture 4.2 Picture 4.3 5. Wattage Adjustment When in wattage mode, using the "+" or "-" button will allow you to increase or decrease desired wattage by 0.1W.
  • Page 7 Operation Guide 7. Lock / Unlock 7.1 When in standby mode, press and hold both fire button and "-" button for 1.5s, the screen will display “ KEY LOCK”, All functions will be disabled in Lock Mode, and the screen will display “ Please Unlock” by pressing any button. 7.2 When in Lock mode, press and hold both fire button and "-"...
  • Page 8 Operation Guide 10. Replace an Atomizer When changing the atomizer the screen will ask " New Atomizer YES(+) NO(-) ", press the "+" button to confirm that it is a new atomizer and will show the new resistance. Press the "-" button will tell the device it is the same atomizer and the resistance will be the same as before.
  • Page 9 13.3 Please ensure the nickel coil / Ti coil or Ss316L coil is under ambient temperature before activating the Punisher 80, or it may read a wrong resistance value. 13.4 The Punisher 80 temperature control mode is associated with the wattage mode.
  • Page 10 Operation Guide 14. Overtime Vaping Warning The device will force shut down by itself after 10 seconds of continuous firing. 15. Low Voltage Protection 15.1 If the battery voltage is lower than 3.3V, the device will stop working and the screen will display “Please Charge”.
  • Page 11 Operation Guide 18. The screen will display “CHECK ATOMIZER” if there's no atomizer attached to the device or an atomizer that has an open circuit. 19. The screen will display “CHECK ATOMIZER” if the resistance of the coil is too high while vaping.
  • Page 12: Operating Instructions

    Operating Instructions 1. Please use all the accessories in right way to avoid any damage which may be caused by incorrect usage. 2. Please use the original charge cable or the 18650 battery charger when charging. 3. It is not recommended to use nickel coils during high wattage vaping in WATTAGE MODE.
