- Page 1 INSTRUCTION MANUAL STIM-PRO Comfort axion GmbH Mollenbachstr. 13 71229 Leonberg Germany 2460 V 1.1...
-
Page 2: What Is Pain
AXION INTRODUCTION INTRODUCTION The primary functions of the STIM-PRO Comfort are pain relief and pain treatment with the TENS mode. What is pain? Pain is a warning system and the body’s method of telling us that something is wrong. Without it, abnormal conditions and injuries to vital parts of the body may go undetected. -
Page 3: Scope Of Delivery

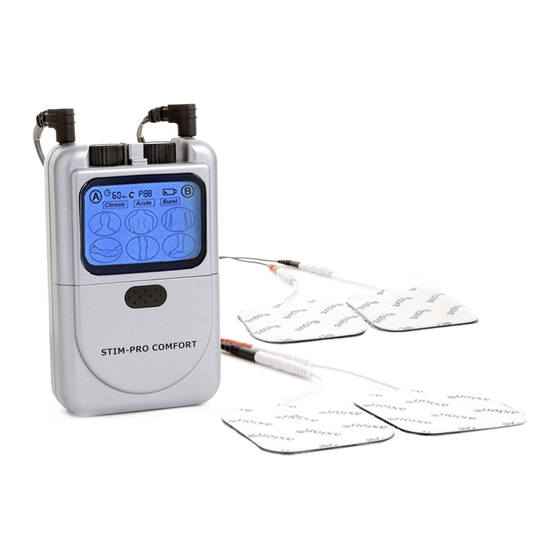

For further details please refer to your doctor. Scope of delivery Each STIM-PRO Comfort is fully equipped with the following standard equipment. 1 piece TENS machine 4 pieces... -
Page 4: General Description
These impulses reach the nerves and muscles through the skin. The electronics of the STIM-PRO Comfort creates electrical impulses that can be modified in intensity, pulse duration and frequency. All functions are easy to handle and the big dis- play shows all parameter values clearly readable. -
Page 5: Operating The Device
STIM-PRO Comfort OPERATING THE DEVICE Power On/Off switch and intensity controls The device can be switched on and off by turning the intensity controls. The intensity can be increased by turning the intensity controls clockwise and decreased by turning the intensity controls counter-clockwise. The intensity can be adjusted from 0 to 80mA. -
Page 6: Program Mode (P)
AXION Program mode (P) All parameters are set by default. TENS STIMULATION The programs have proven to be helpful in most cases for the suggested applications. However, they might be used for the treatment of other injuries or discomforts as well. Every patient responds individually to stimulation current. - Page 7 STIM-PRO Comfort TENS programs P5 - P9 P 05 For pain in thoracic spine and shoulder Ideal for longer treatments. Anti-habituation factor can be reduced by the strong pulse width change. Choose a convenient intensity. Pulse frequency: 100 Hz Pulse width:: 60 - 200 μs...
-
Page 8: Construction Of The Device
AXION CONSTRUCTION OF THE DEVICE Front Back... -
Page 9: Battery Recharging
STIM-PRO Comfort BATTERY RECHARGING When the low battery indicator is shown, the battery needs to be replaced. Remove the battery if the device is not likely to be used for some time. Make sure the power is off. Open the battery compartment (push the cover downwards) Remove the battery Insert the new battery. -
Page 10: Maintenance, Transportation And Storage Of The Device
AXION MAINTENANCE, TRANSPORTATION AND STORAGE OF THE DEVICE Non-flammable cleaning solution (containing 70% of alcohol) is suitable for cleaning the device. Stains and spots can be removed with a cleaning agent. Do not submerge the device in liquids or expose it to large amounts of water. -
Page 11: Conformity To Safety Standards
There is no stimulation current? Check if the electrodes are correctly connected to the same channel and if the intensity is high enough. CONFORMITY TO SAFETY STANDARDS The STIM-PRO Comfort device is in compliance with the EN 60601-1-2:2007 and 60601-1:2006 safety standards. -
Page 12: Technical Description
AXION TECHNICAL DESCRIPTION Channel 2 channels with adjustable intensity Intensity Adjustabl 0 - 80 mA with a load of 500 Ohm on each channel Pulse amplitude Asymmetrical, bi-phasic square pulse Output Voltage 0 - 40 V Power Source 1 pc. 9,0V battery Size 10.0 cm (L) x 6.3 cm (W) x 3.2 cm (H) -
Page 13: Warranty
STIM-PRO Comfort WARRANTY All TENS models carry a warranty of 24 months from the date of delivery. The warranty applies to the stimulator only and covers both parts and labor relating thereto. The warranty does not apply to damage resulting from improper handling, the failure to follow the operating instructions, loss or dropping.
