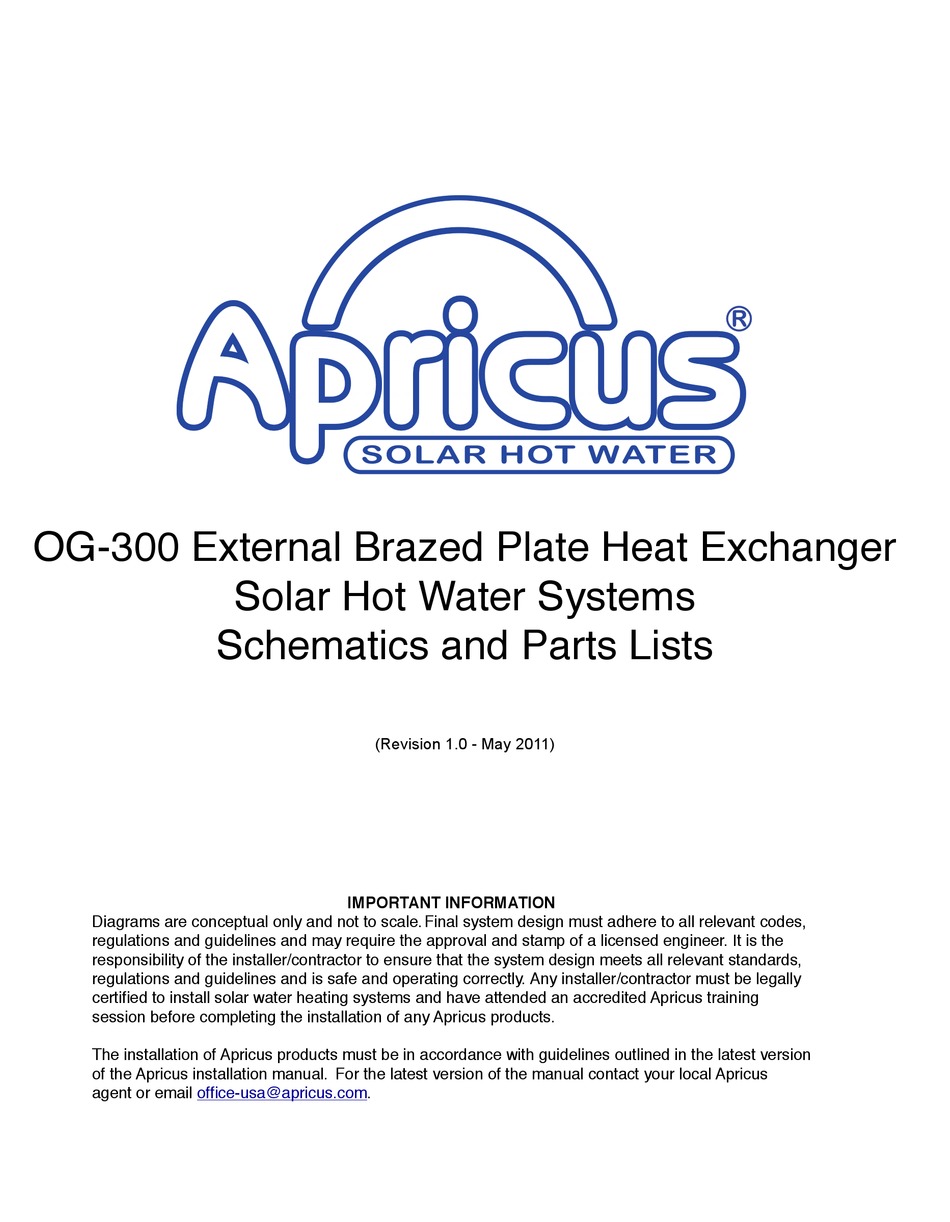

Apricus OG-300 Schematics And Parts Lists

OG-300 External Brazed Plate Heat Exchanger
Solar Hot Water Systems
Schematics and Parts Lists
(Revision 1.0 - May 2011)
IMPORTANT INFORMATION
Diagrams are conceptual only and not to scale.! F inal system design must adhere to all relevant codes,
regulations and guidelines and may require the approval and stamp of a licensed engineer. It is the
responsibility of the installer/contractor to ensure that the system design meets all relevant standards,
regulations and guidelines and is safe and operating correctly. Any installer/contractor must be legally
certified to install solar water heating systems and have attended an accredited Apricus training
session before completing the installation of any Apricus products.
The installation of Apricus products must be in accordance with guidelines outlined in the latest version
of the Apricus installation manual.! For the latest version of the manual contact your local Apricus
agent or email office-usa@apricus.com.
