Page 1: Installation Instructions

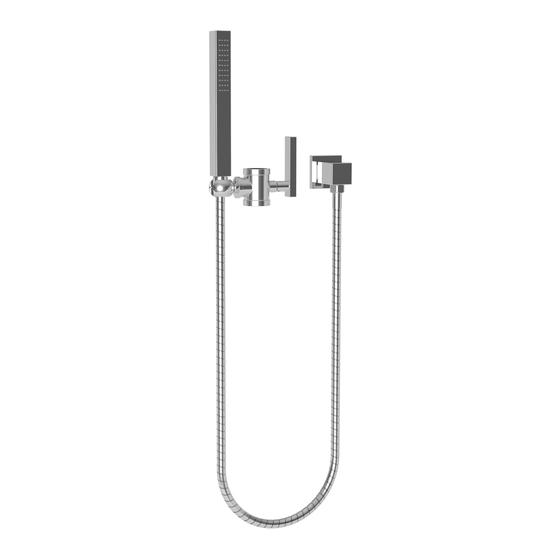

INSTALLATION INSTRUCTIONS MODEL No’s: 2040-0442, 2040-0443 GRAB BAR HAND SHOWER HOLDER 2040 0443 SHOWN 2001 E.CARNEGIE AVE, SANTA ANNA CA 92705 (949) 417-5207 WWW.GINGERCO.COM NWP-2040-0442 EN-3568 REV - 11/19/2018... - Page 2 ENSURE ADAPTER IS INSTALLED THREAD ELBOW ONTO ADAPTER 1/2” NPT PIPE INSTALLATION INSTALL HOSE ON TO ELBOW FLUSH TO FINISHED WALL TIGHTEN AGAINST WALL FINISHED FINISHED ELBOW FINISHED WALL WALL WALL ELBOW WASHER 1/2” NPT PIPE HOSE USE PLUMBER (Short End) STEP 2 STEP 1 STEP 3...
