Summary of Contents for Acorn Autoscan AKF80 Series

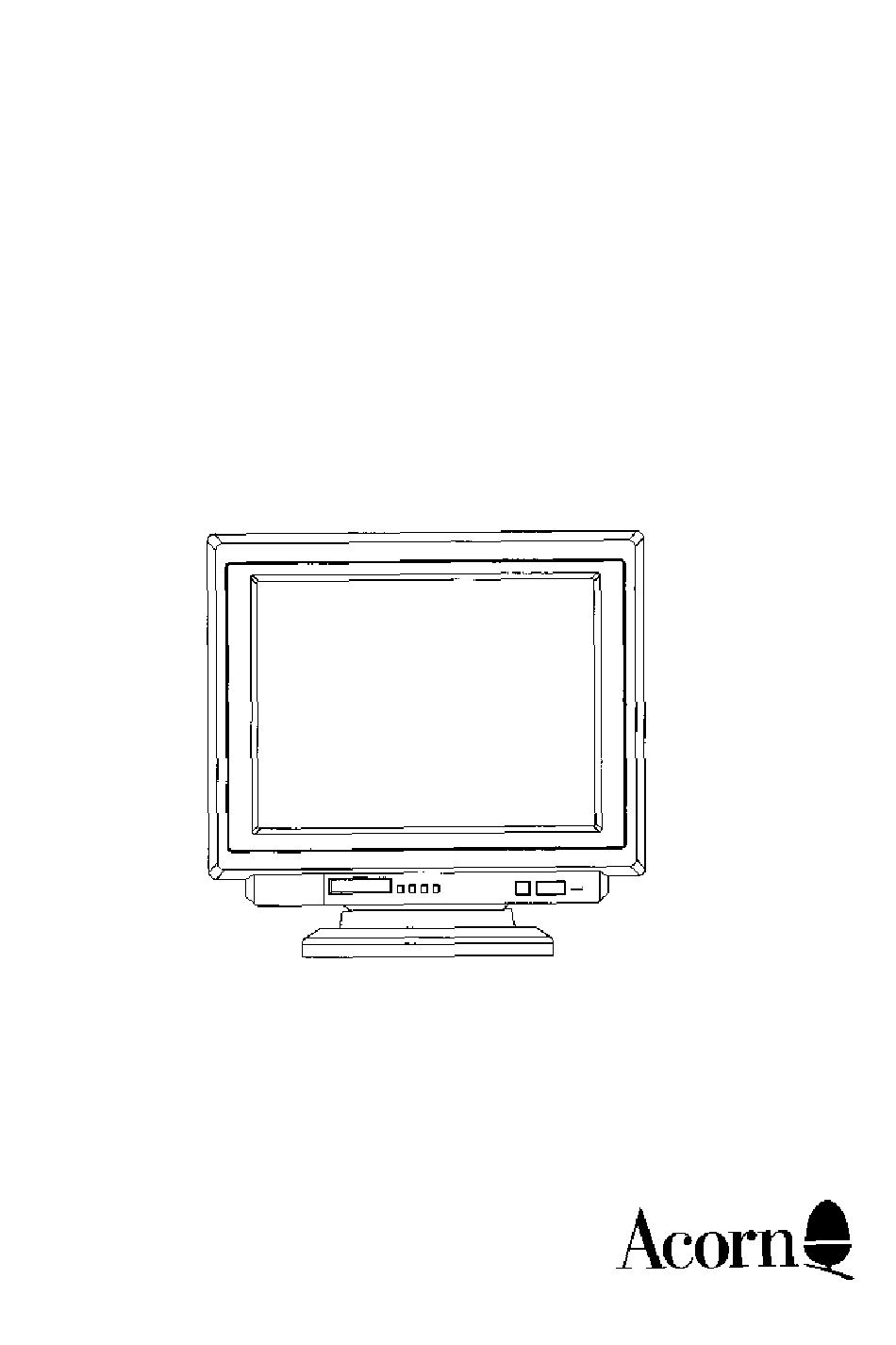

- Page 1 Autoscan colour monitor 17" AKF80 Series...
- Page 2 A u t o S c a n Professional Colour Monitor English Operating instructions ....Deutsch Bedienungsanleitung ....Francais Mode d'emploi ....Nederlands Gebruiksaanwijzing ....Italiano Istruzioni per l'uso ....Espanol Instrucciones de manejo ....Portugues Modo de emprego ....Dansk Betjeningsvejledning .....
- Page 3 English Introduction This digital controlled AutoScan colour monitor displays sharp and brilliant images of text and graphics with a maximum resolution up to 1280x1024 pixels. It is optimal for CAD/CAM/CAE, DTP, and any other application demanding a display with large screen-size and high resolution.
-
Page 4: Safety Precautions And Maintenance
Safety precautions and maintenance ♦ Disconnect the monitor from the mains supply if the monitor is not to be used for an extended period of time. ♦ Do not attempt to remove the back cover, as you will be exposed to a shock hazard. -
Page 5: Installation
Installation NOTE: Before installing this monitor, please refer to the user's guides of your computer and video adapter to make sure if these equipments require any change of setting. Positioning/Ventilation WARNING: WHEN POSITIONING THIS EQUIPMENT ENSURE THAT THE MAINS PLUG AND SOCKET ARE EASILY ACCESSIBLE. Do not place the monitor near a heat source. -
Page 6: Connection To The Computer
Connection to the computer NOTE: Please be sure the AC power to your computer is "OFF" before connecting or disconnecting any display peripheral. Failure to do so may cause serious personal injury as well as permanent damage to your computer equipments. •... - Page 7 2. Computer with video adapter of BNC connector: • Make sure the "D-SUB/BNC" on the front of the monitor is to the 'BNC' position. • Connect your BNC cable according to the BNC connector assignment at the rear of the monitor. •...
-
Page 8: Connection To The Mains
Connection to the mains Connecting to the mains This monitor is set to operate at a mains supply of 100-240 volts AC, ±10%, 50-60 Hz. If the mains voltage in your home is different from this, consult your dealer. Connect one end of the mains cord to the mains socket at the rear of monitor, and the other end to the mains supply. -
Page 9: Control Locations And Functions
Control locations and functions (descriptions are from right to /eft) POWER • Press this knob, the green LED lights and the power is ON. • Press this knob, the green LED disappears and the power is OFF. DEGAUSS. • Press this knob to eliminate the colour impurity. CONTR. - Page 10 (Descriptions are from left to right) "D-SUB" f "BNC" • Switch to "D-SUB" position, when the monitor is connected with a D-sub interface cable. • Switch to "BNC" position, when the monitor is connected with a BNC interface cable. SELECT •...
- Page 11 Adjustment This monitor is pre-set with 12 modes as indicated in the following table: (factory pre-set mode table) Frequency Sync Polarity Mode. Resolution H(KHZ) V(HZ) 640x352 31.5 V G A 640x480 31.5 V G A 800x600 35.2 S V G A 640x480 37.5 S V G A...
-
Page 14: Technical Information
Technical information (I) General: Picture tube : 17 inch, 90° deflection, neck diameter 29.1 mm, Tinted screen glass, black matrix, with AGRAS coating, light transmission 52%, phosphor EBU medium short, dotted pitch 0.27 mm.DAF gun. Display area : 315 mm (H) x 232 mm (V) Line (Horizontal) frequency : 30 - 82 KHz (automatically) Raster (Vertical) frequency : 50 - 120 Hz (automatically) Mains voltage... - Page 15 (II) Pin assignment: The 15-pin D-sub connector (male) of the signal cable: Pin No. Assignment Pin No.Assignment Red video input No pin Green video input Logic ground Blue video input Identical output Identical output - connected to pin 10 - Connected to pin 10 No pin Ground H.
- Page 16 3138 105 29321...
