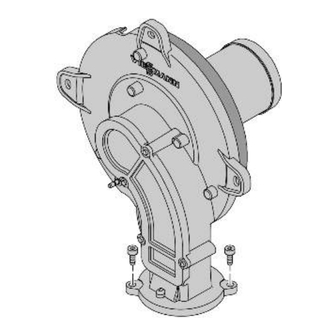

Radial fan replacement

Advertisement

Installation instructions

for contractors
Radial fan replacement
for the Vitodens 100-W, type WB1B

Safety instructions

Please follow these safety instructions closely to prevent accidents
and material losses.
Safety instructions explained
Danger
This symbol warns against the
risk of injury.
Note
Details identified by the word "Note"
contain additional information.
Installation, initial start-up, inspection,
maintenance and repairs must only be
carried out by a competent person
(heating engineer/installation contrac-
tor).
Opening the Vitodens and removing the burner
Installation and service instruc-
tions
5355 081 GB
2/2008
VIESMANN
Before working on the equipment/
heating system, isolate the power
supply (e.g. by removing a separate
mains fuse or by means of a mains
isolator) and safeguard against
unauthorised reconnection.
When using gas as fuel, also close
the main gas shut-off valve and safe-
guard against unauthorised reopen-
ing.
Repairing components which fulfil a
safety function can compromise the
safe operation of your heating sys-
tem.
For replacements, use only original
spare parts supplied or approved by
Viessmann.
Dispose after installation.
