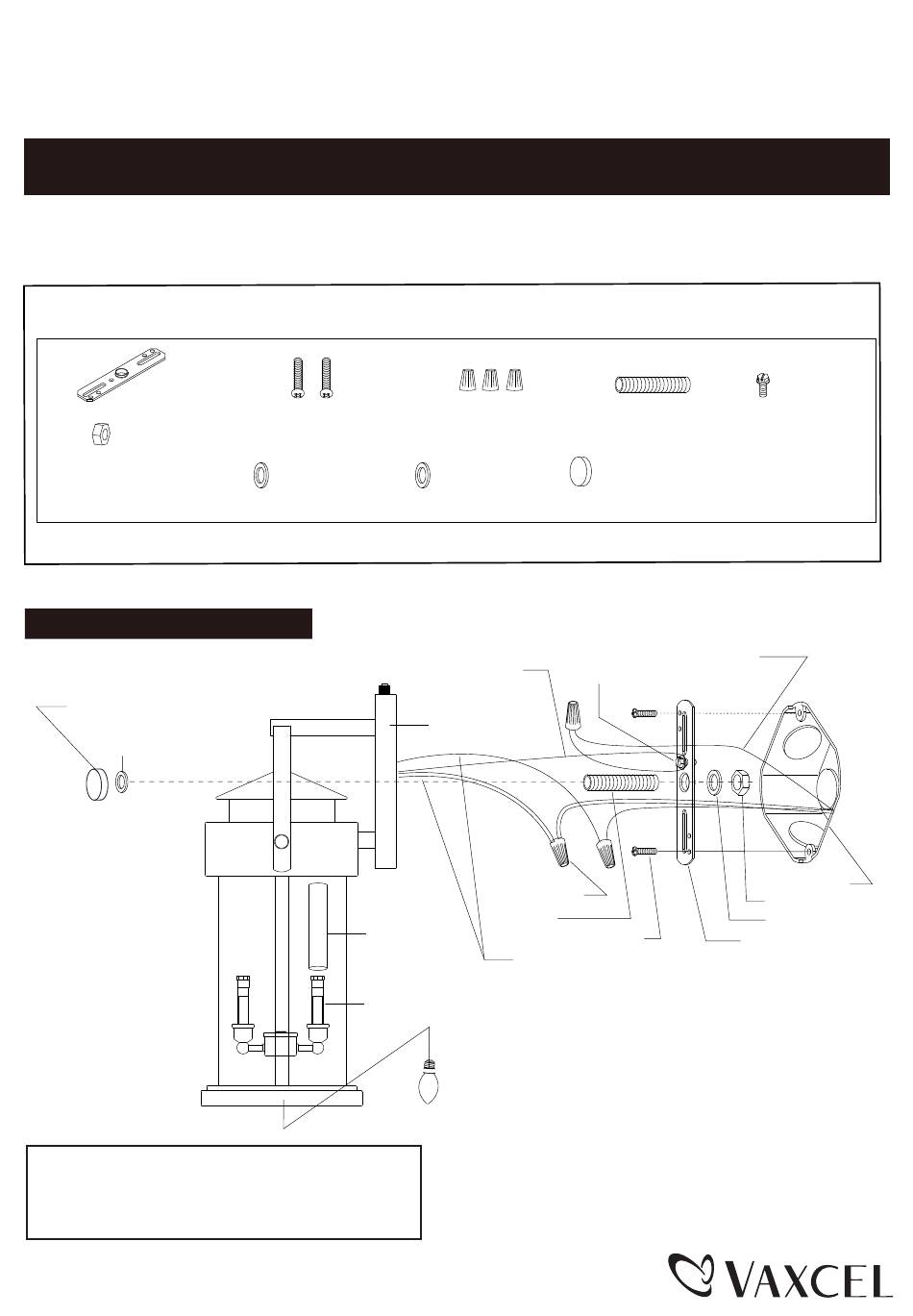

ASSEMBLY AND INSTALLATION
T0287
WARNING:
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THESE INSTRUCTIONS.
Hardware Package (inculded):
Mounting Strap (A)
Hex Nut (F)
Installation Steps
Turn off the power at fuse or circuit box.
End Cap (I)
Rubber Pad (H)
IMPORTANT:
The sensor has an excellent photocell function
to enable the light to turn on at dusk and off at
dawn automatically.
INSTRUCTIONS
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
Mounting Screw (B)
Washer (G)
Rubber Pad (H)
Fixture Grounding Wire
Socket Tube
Socket
Wire Nut (C)
End Cap (I)
House Grounding Wire
Green Grounding Screw (E)
Back Plate
Wire Nut (C)
Nipple (D)
Mounting Screw (B)
Fixture Wire
Bulb Type B MAX 60W
(not included)
Nipple (D)
Green Grounding
Screw (E)
Outlet Box
Hex Nut (F)
Washer (G)
Mounting Strap (A)
161006
Advertisement
Table of Contents
Related Manuals for Vaxcel T0287
Summary of Contents for Vaxcel T0287
- Page 1 ASSEMBLY AND INSTALLATION INSTRUCTIONS T0287 WARNING: TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE. POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
- Page 2 1. Attach the nipple to the mounting strap, then secure it with a washer and hex nut. 2. Attach the mounting strap to the outlet box by using two mounting screws. 3. Pull out the outlet wires and house grounding wire from the outlet box. Make wire connections using the wire nuts: ---The black wire from the fixture to the black wire from the power source.
