Summary of Contents for LANGER EMV-Technik ICS 105

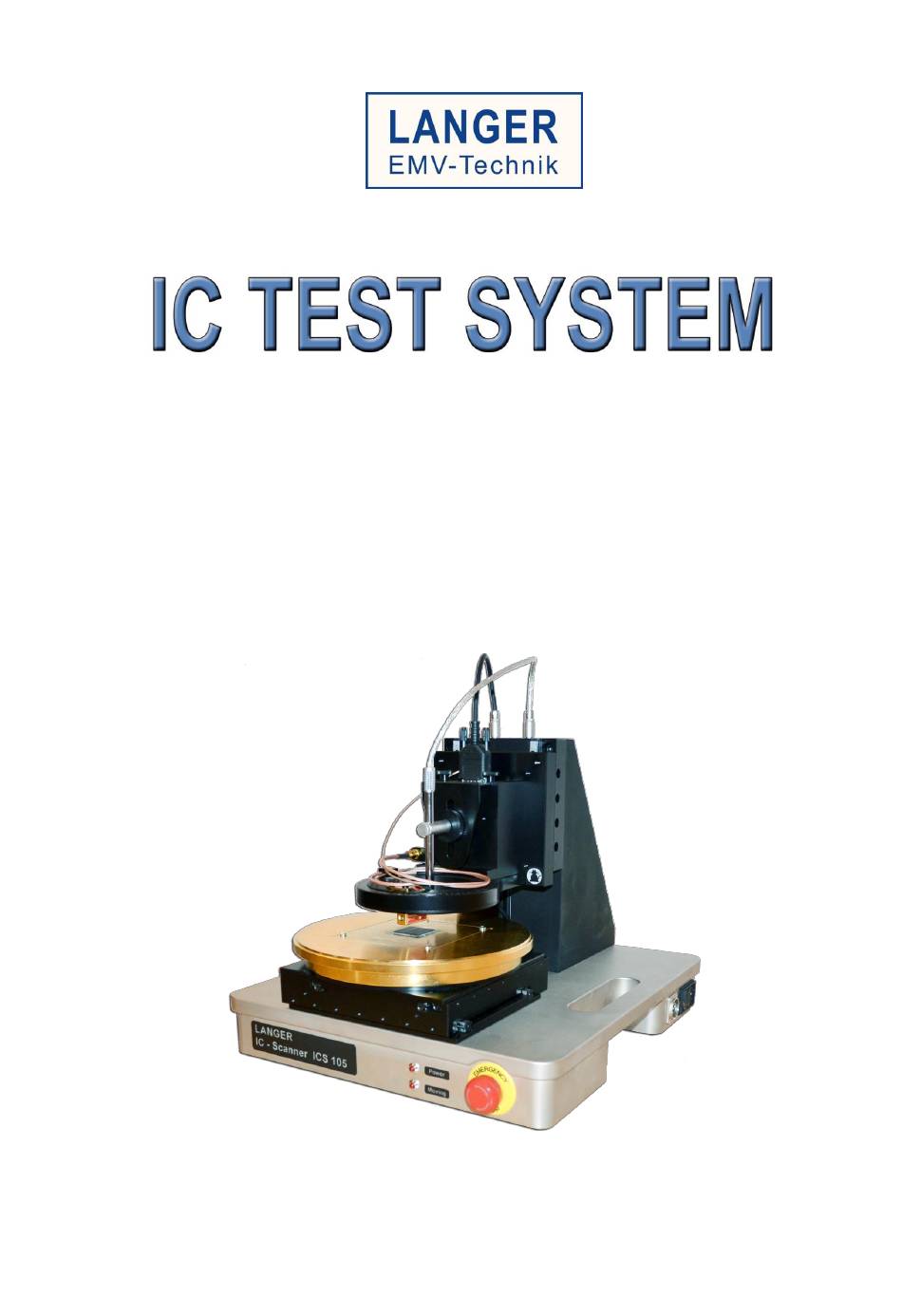

- Page 1 User manual ICS 105 set IC Scanner 4-Axis Positioning System Copyright © November 2013 LANGER EMV-Technik GmbH 2018.09.18 User manual ICS 105 IC scanner_en...
-
Page 2: Table Of Contents
DE-01728 Bannewitz LANGER mail@langer-emv.de ICS 105 IC Scanner set EMV-Technik www.langer-emv.com Content: Page Safety Instructions ....................3 Scope of Delivery ...................... 4 Technical Parameters ....................5 Intended Use ......................7 Measurement Set-up ....................8 Installing the GND 25 holder ...................... 8 Installing the Groundplane GND 25 ................... -
Page 3: Safety Instructions
105. - Do not touch any moving parts while the ICS 105 is running to avoid injury. - Loading and unloading of parts and material must be done when the ICS 105 is not running. - Changing of fixtures or tooling must be done with the power source disconnected. -
Page 4: Scope Of Delivery
DE-01728 Bannewitz LANGER mail@langer-emv.de ICS 105 IC Scanner set EMV-Technik www.langer-emv.com 2 Scope of Delivery Item Designation Type Qty. 4-Axis Positioning System ICS 105 Ground Plane GND 25 ChipScan-Scanner Software CS-Scanner Digital Microscope Camera DM-CAM Accessories ICS 105 acc User Manual... -
Page 5: Technical Parameters
+/- 1° Speed 2 mm/s 2 mm/s 2 mm/s 45°/s Table 2: Technical parameters of the four axes of the ICS 105 Operating system Windows 7 64-bit (latest service packs) Monitor resolution (1280 x 1024) px HD space 1 GB... - Page 6 DE-01728 Bannewitz LANGER mail@langer-emv.de ICS 105 IC Scanner set EMV-Technik www.langer-emv.com Diameter 218 mm Depth of the recess 1.7 mm Opening (103 x 103) mm Weight 2 kg Height 24 mm Table 5: Technical parameters of GND 25 ground plane...
-
Page 7: Intended Use
EMV-Technik www.langer-emv.com 4 Intended Use The ICS 105 is a 4-axis positioning system. It uses probes of Langer EMV-Technik GmbH for IC tests and measurements. Following Probes, among others, are supported: - ICR near-field micro probes - passive near-field probes... -
Page 8: Measurement Set-Up
DE-01728 Bannewitz LANGER mail@langer-emv.de ICS 105 IC Scanner set EMV-Technik www.langer-emv.com 5 Measurement Set-up 5.1 Installing the GND 25 holder The GND 25 holder (Figure 1a) is installed directly onto the XY stage. Insert the appropriate screws to the four holes in the middle of the holder and secure them to the XY stage. Next, insert the anti-rotation protection screw (Figure 1b), as needed, in one of the four outer holes of the holder. -
Page 9: Installing The Dm-Cam Holder.3 Camera Holder
5.4 Installing the DM-CAM Digital Microscope Camera Screw the DM-CAM digital microscope camera into the DM-CAM holder.3 with the knurled screw. Figure 4: Installed DM-CAM digital microscope camera Connect the DM-CAM digital microscope camera cable to the ICS 105 IC scanner - 9 / 25... -
Page 10: Installing An Icr-Probe
The angular SMA connector of the SMA-SMA RA measurement cable is fixed to the SMA socket of the ICR probe (Figure 8) and the other ending is subsequently fixed to the SMA socket (measurement input) of the ICS 105 (Figure 9). Fix both cables to the rotary unit as shown in Figure 10. - Page 11 DE-01728 Bannewitz LANGER mail@langer-emv.de ICS 105 IC Scanner set EMV-Technik www.langer-emv.com Figure 7: SSMB-SSMB cable attached to the connector of the rotary unit Figure 8: Attached SMA-SMA RA measurement cable - 11 / 25...
- Page 12 DE-01728 Bannewitz LANGER mail@langer-emv.de ICS 105 IC Scanner set EMV-Technik www.langer-emv.com Figure 9: SMA-SMA RA measurement cable attached to the ICS 105 IC scanner Figure 10: The cables fixed on the rotary unit - 12 / 25...
-
Page 13: Installing A Passive Near-Field Probe
DE-01728 Bannewitz LANGER mail@langer-emv.de ICS 105 IC Scanner set EMV-Technik www.langer-emv.com 5.6 Installing a Passive Near-Field Probe To use a near-field probe the SH 01 probe holder has to be installed first. Screw the SH 01 onto the rotary unit with the help of the small knurled screws (Figure 11). Next, put the near-field probe into the metal tube of the SH 01 and carefully tighten the screw by hand (Figure 12). - Page 14 DE-01728 Bannewitz LANGER mail@langer-emv.de ICS 105 IC Scanner set EMV-Technik www.langer-emv.com Figure 12: Near-field probe attached to the SH 01 probe holder Figure 13: Attached measurement cable - 14 / 25...
- Page 15 DE-01728 Bannewitz LANGER mail@langer-emv.de ICS 105 IC Scanner set EMV-Technik www.langer-emv.com Figure 14: Attached SSMB-SSMB cable for collision control Figure 15: SSMB cable for collision control attached to the connector of the rotary unit - 15 / 25...
-
Page 16: Connecting A Measurement Device For Near-Field Scans Using The Example Of A Spectrum Analyzer
5.8 Connecting a Computer To connect a computer to the ICS 105 IC scanner a USB type A to type B cable is used. Put the USB type A connector into a USB port of the computer and put the USB type B connector into the USB type B port of the ICS 105 (Figure 17). -
Page 17: Connecting The Power Cable
ICS 105 IC scanner cannot be operated. Before starting the ICS 105 check if the emergency stop button is pushed, in that case, turn the red button in the direction of the imprinted arrows (Figure 19). -
Page 18: Software Installation
DE-01728 Bannewitz LANGER mail@langer-emv.de ICS 105 IC Scanner set EMV-Technik www.langer-emv.com 6 Software Installation Before the software installation the set-up of the entire system hardware needs to be completed in accordance to chapter 5. To start the installation process of the ChipScan-Scanner software, please insert the delivered installation CD-ROM into your CD-ROM drive. - Page 19 DE-01728 Bannewitz LANGER mail@langer-emv.de ICS 105 IC Scanner set EMV-Technik www.langer-emv.com Figure 21: Select ‘Update Driver‘ in the properties window of ‘Trinamic Stepper Device’ 5) In the following dialog choose the option to manually search for the driver in your computer.
- Page 20 DE-01728 Bannewitz LANGER mail@langer-emv.de ICS 105 IC Scanner set EMV-Technik www.langer-emv.com Figure 23: Browse the computer to find the CD-ROM drive with the driver 7. The driver is installed and it should appear in the Windows Device Manager as follows.
-
Page 21: Setting Up And Commissioning
Please be sure to have completed chaper 5 and chapter 6 from this manual. To confirm the proper operation of the ICS 105 IC scanner please follow the following instructions. Details on specific steps can be found in the ChipScan-Scanner user manual which can be opened from within ChipScan-Scanner by clicking on the menu Help entry Manual... - Page 22 ICS 105 IC Scanner set EMV-Technik www.langer-emv.com 3. Connect ChipScan-Scanner software to the ICS 105 IC scanner - within ChipScan-Scanner click on the menu Devices and then on the entry Show Device Manager - within the Device Manager dialog press the ‘Detect Devices’ button - After the detection finishes the following entries appear in the section ‘Identified devices...
-
Page 23: Operational Notes
8 Operational Notes 8.1 Connecting the IC Scanner to your PC When connecting the ICS 105 IC scanner to the computer, make sure to use a USB cable with a ‘Hi-Speed USB’ certification (USB 2.0) and a maximum length of 2 meters. -
Page 24: Determine The Duration Of A Measurement With The Ic Scanner
8.3 Determine the Duration of a Measurement with the IC Scanner The duration of a measurement with the ICS 105 IC scanner will increase linearly with the number of measurement points. In addition the duration mainly depends on the following three properties: ... -
Page 25: Warranty
EMV-Technik www.langer-emv.com 9 Warranty Langer EMV-Technik GmbH will remedy any fault caused by defective materials or defective manufacture during the statutory warranty period, either by repair or replacement. The warranty is only granted on condition that: - the information and instructions in the user manual have been observed.
