REMINDER
CALL 1-888-755-4497
BEFORE RETURNING TO STORE.

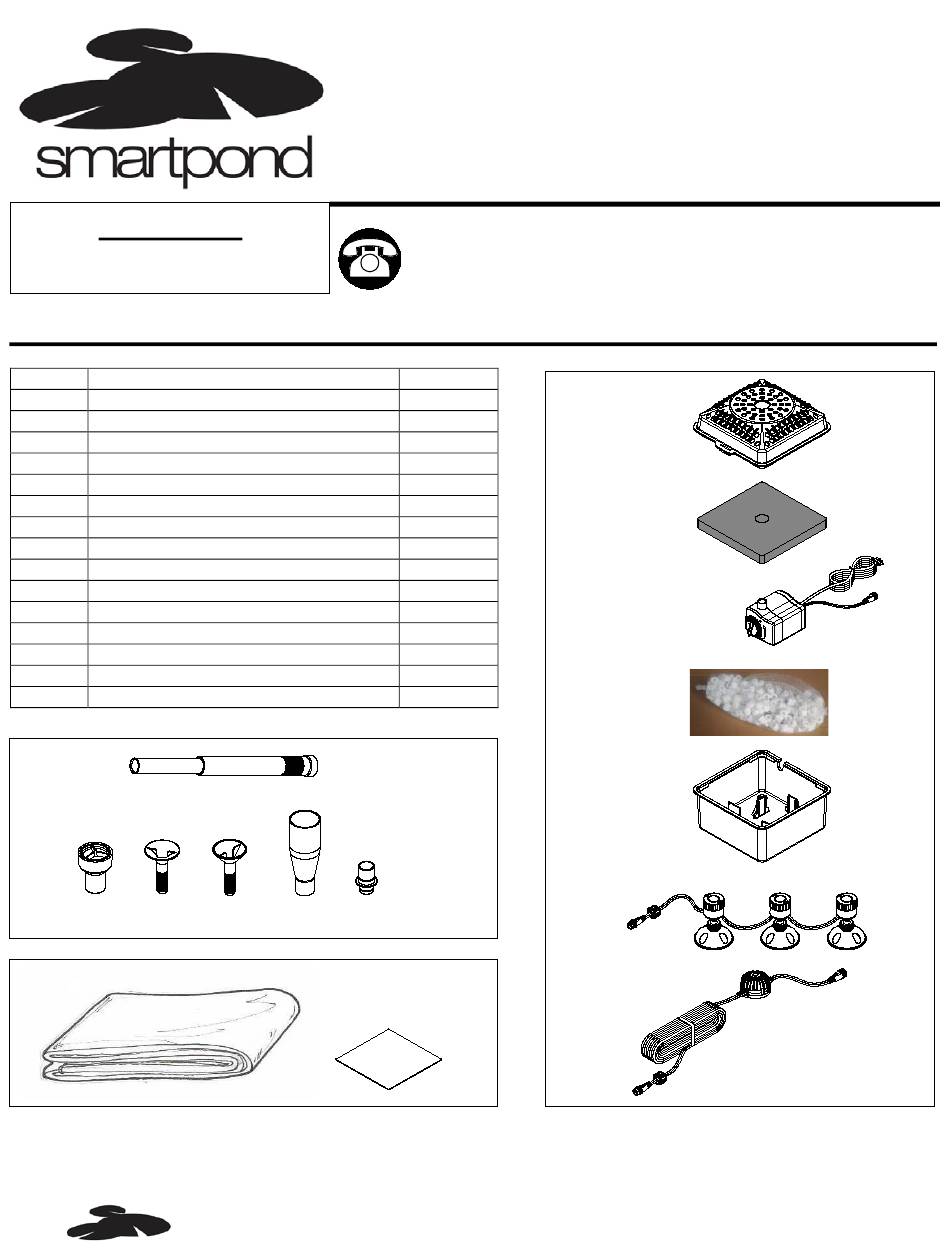

PACKAGE CONTENTS
Part
A
Filter box cover
B
C
D
E
Filter box base
F
Mini LED lights
G
H
Extension tubes
I
Waterspray nozzle
J
Waterbell nozzle insert
K
Trumpet nozzle insert
L
Lower fountain head nozzle
M
Adapter (with o-ring)
N
Liner (7 ft. X 10ft.)
P
H
I
J
N
PLEASE CALL 1-888-755-4497 BEFORE RETURNING TO THE STORE.
WWW.SMART-POND.COM
Complete Pond Kit
®
Description
Filter pad
Pump
Bio ball
Sensor
Liner patch
K
L
M
Questions, problems, missing parts? Before returning
to your retailer, call our customer service department at
1-888-755-4497, 8 a.m.-6 p.m., EST, Monday-Friday, or
email us at customercare@smart-pond.com.
Quantity
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
P
MODEL #CPK500
A
B
C
D
E
F
G
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Smartpond CPK500
Summary of Contents for Smartpond CPK500
- Page 1 Complete Pond Kit ® MODEL #CPK500 REMINDER Questions, problems, missing parts? Before returning to your retailer, call our customer service department at CALL 1-888-755-4497 1-888-755-4497, 8 a.m.-6 p.m., EST, Monday-Friday, or BEFORE RETURNING TO STORE. email us at customercare@smart-pond.com. PACKAGE CONTENTS...
- Page 2 WARNINGS AND CAUTIONS - PUMP WARNING • Risk of electrical shock. This pump is supplied with a grounding conductor and grounding–type attachment plug. To reduce the risk of electric shock, be certain that it is connected only to a properly grounded, grounding-type receptacle.
- Page 3 2. Dig out your pond and remove any debris or rocks that might damage your liner. Add approximately 2 in. of sand to the pond area. The sand functions as a cushion beneath your pond liner. Spread the sand over the entire area and compact it.
- Page 4 ASSEMBLY INSTRUCTIONS – POND KIT 1. Connect the light to the sensor by pushing the plug into the sensor socket until it is firmly seated. Hand tighten the nut from Sensor the plug to the socket. Fig. 5 Plug from lights Fig.
- Page 5 6. Install the filter pad and filter box cover. It should snap closed. Fig. 10 Filter box cover Filter pad Fig. 10 7. Choose a fountain head for the desired water effect, and assemble your choice as shown in Fig. 11. Fig.
- Page 6 CARE AND MAINTENANCE – FILTER BOX • Occasional cleaning of the filter pads will be necessary to ensure the proper functioning of the system. Filter pads should be removed and washed with clean water when they are visibly soiled. • Filter pads should be replaced annually.
- Page 7 REPLACEMENT PARTS LIST For replacement parts, call our customer service department at 1-888-755-4497, 8 a.m.-6 p.m., EST, Monday-Friday. Part Description Filter box cover Filter pad Pump Filter box base Mini LED lights Sensor Extension tubes Waterspray nozzle Waterbell nozzle insert Trumpet nozzle insert Lower fountain head nozzle Adapter (with o-ring)
- Page 8 This warranty period begins on the date of purchase by the original purchaser. Unless otherwise specified all smartpond® electrical products are warranted to the user against defective material and workmanship, under normal working conditions for 1 year from the date of purchase.
