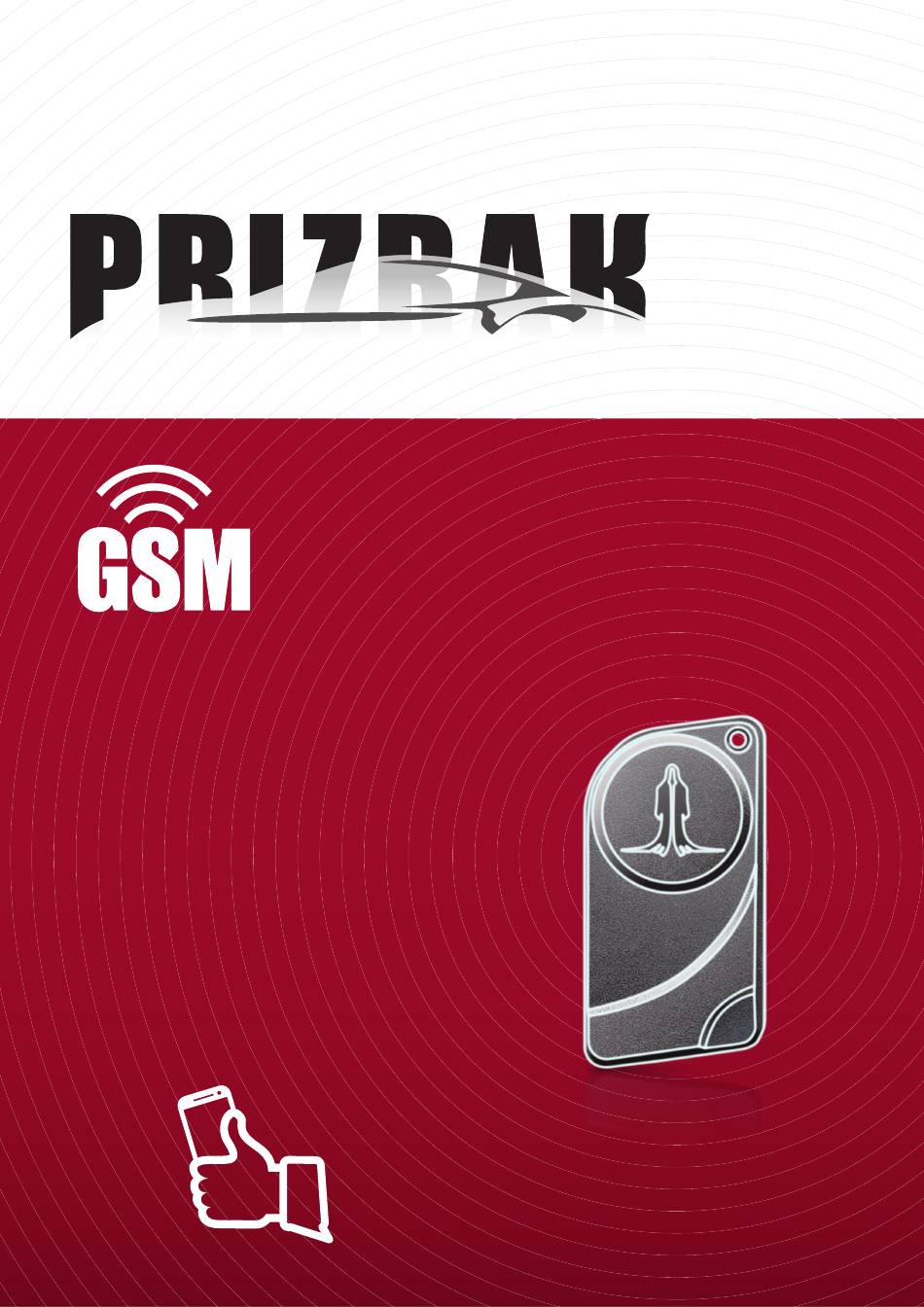

- Page 1 T E C H N I C A L M A N U A L Comfort and innovation – no remote controls Car Alarm System For modern day vehicles and drivers...
-
Page 2: Table Of Contents
The Alarm has an integrated GSM module, to control security and Differences between security systems: the vehicle. The system can be operated via mobile phone with a user- Prizrak-810 – basic system. friendly voice interface (only Russian and English languages icurrently Prizrak-830 – RFID tag and second circuit of protection. -
Page 3: Control By Mobile Phone
Control via mobile phone It is possible to control the Alarm via mobile phone, for example: arm Control via text messages and disarm the Alarm, schedule tasks, start the heater, etc. It is possible to control your Alarm via text messages: Options of the phone control include the smart voice menu (Russian Access code * Command№... -
Page 4: The Alarm Operation Algorithms
Alarm operation algorithms Arming/disarming different influences on the vehicle. Optional sensor can be connected To arm the alarm press the lock button of the remote, or close the if required. The alarm can be connected to multiplex sensors and doors with keyless system or lock the door with the key. Alarm will standard sensors. -
Page 5: Immobilizer Feature
Installing electromechanical door locks CAN bus lock Electromechanical locks controlled with "Close No additional connections required. For support of a specific electromechanical door locks" and "Open electromechanical door vehicle check "Integrator". locks” outputs. Pulse to close locks will be formed after arming the Commutation of central lock control circuits, with alarm (condition being: doors, trunk and hood are closed). -
Page 6: Rfid Tag
RFID tag RFID tag is an electronic key that must be with the driver at all times during the vehicle operation. Before the vehicle starts moving, the system will automatically identify the RFID tag and deactivate all security functions. When the RFID tag is identified, the system will emit a trill. Battery replacement If the battery needs to be replaced, the system will trigger 5 short audio signals after the RFID tag is identified. -
Page 7: Puk Code
PIN code PIN code is a secret combination of presses on one or more PIN code can be easily changed many times by both technical original buttons in the vehicle. Please refer to the Integrator files for the specialists during installation of the system or by user during day-to- list of original buttons that can be recognized by the system in a specific day use of the vehicle. -
Page 8: Other Options
Warning signals after authentication Additional sound signals after verification usually call for certain actions. Table 3. Warning signals after authentication Warning signal Source of a signal Actions to take The default PIN code was not changed Change the default PIN code The maintenance mode is on Disable the Maintenance mode Long audio... -
Page 9: Connection
Connection Inputs/outputs of the Alarm Inputs/outputs of the Alarm are described in the following tables. Contact numbers are shown in Fig. 1. Configuration of inputs/outputs is programmed (see Programming the Alarm hardware features). Fig. 1. Numbers of port connector pins from wiring viewpoint Table 4. -
Page 10: Programming The Alarm
Description of pins in the Alarm main port Description of pins in the Alarm main port Description of pins in the Alarm main port Pins #1, 10, 11. Pin #2. Pin #1. Heater control (Webasto, Eberspacher) For TEC-810/830. Used only for additional (optional) Used only for additional (optional) modules Pin #9. -
Page 11: Programming - Stage One
Programming – Stage one The Alarm is programmed by using the Programming button. Identifying the vehicle model Vehicles supported by the system are divided into groups, each of Programming sequence: which is divided into subgroups. All groups and subgroups are assigned Power the Alarm, wait for an intermittent sound. -
Page 12: Programming - Stage Two
Programming – Stage two Programming the Alarm configuration At stage two the Alarm hardware functions and user settings are changed, and a new PIN code is programmed. Table 6. Programming menu Number of Name of the menu Menu code Designation audio signals Hardware features Configuration of the Alarm hardware settings... - Page 13 Used to convert fuel level from percent to liters. Fuel tank volume 1-30 1 – not defined. Fuel is measured in percent 2 - 10 liters..30-150 liters. Step is five liters Alert delay if perimeter 1 - disabled; 2 - 0.5s; 3 - 1.0-s; 4 - 2.0s; 5 - 3.0s; was breached 1 - enabled;...
- Page 14 Table 9. Functions of programmable outputs Function Description Security state Emitting a constant level signal while the Alarm is in Security mode Arming pulse Emitting 0.8 sec pulse when entering the Security mode or triggering AntiHiJack feature. Disarming pulse Emitting 0.8 sec pulse when leaving the Security mode. Emitting 0.8 sec pulse after PIN code is entered or in Maintenance mode (1 second after the ignition has Authentication pulse been turned on).
- Page 15 Function Description Immobilizer bypass Function to enable remote launch on vehicles equipped with start/stop button (without remote start module) module (remote start) Output operates exactly as corresponding output of ESM-250 Start/Stop button Function to enable remote launch on vehicles equipped with start/stop button (without remote start module) control (remote start) Output operates exactly as corresponding output of ESM-250 Brake pedal press...
-
Page 16: Configuration Of Integrated Sensors
Programming sequence Turn on the ignition. button, it will stop emitting irregular signals and go back Enter PIN-code, wait for confirmation. to indicating option status by series of 10 signals. Release To enter Menu 1 press the Programming button 10 times, the the brake pedal, and the Alarm goes back to displaying the Alarm will emit three audio and three LED signals. -
Page 17: Heater Configuration
Heater configuration Table 12. Heater configuration Factory Setting Function default Description range settings Accept/Decline operation of 1 – on an aftermarket heater 2 – off 1 – on Heater operation in preheating mode 2 – off 1 – Webasto Heater management protocol –... - Page 18 18 Battery voltage to launch engine by voltage 1 – 15 1 – 10.6 V; 2 – 10.7 V; ... 8 – 11.3 V; 15 – 12 V 19 Engine runtime to charge the battery 1 – 6 1 – 10 min.; ... 3 – 30 min.; ... 6 – 60 min. 1 –...
-
Page 19: Registration Of New Rfids
Programming sequence Turn the ignition on. Go to option setting by pressing and holding the brake pedal. The Alarm will notify of the option status by a series of audio Enter PIN code, wait for confirmation. signals of a changing duration. If the vehicle has passed 10 km after installation, and the Adjust option settings by pressing the Programming button the factory set PIN code remained unchanged, it is allowed to use... - Page 20 Programming example Example 1 Example 2 Objective: You would like to change the factory settings of the Objective: You would like to change the factory settings of the Alarm and set output #2 Engine lock to control the normally open relay. Alarm and increase AntiHiJack distance from 100 to 300 meters Sequence: Sequence:...
-
Page 21: Arranging The Alarm Units In The Vehicle
Arranging the Alarm units in the vehicle Use the picture to draw arrangement of the Alarm units. This can help to find the alarm units. Keep this sketch out of the reach of third parties. TEC-61231-23 Technical Manualе PRIZRAK... -
Page 22: Standard Delivery Package
Standard delivery package Designation Quantity, pc Central unit RFID Tag A set of wiring harness Siren Reminder card User manual Warranty certificate Connection diagram Unit package Specifications and operating conditions Parameter Value Power supply voltage, V 9 … 15 Maximum current draw in standby mode, mA Maximum current draw in operating mode, A Operating temperature, °C –... - Page 23 Comfort of modern technology Endorse if you like it!
