Connecting Computers to the AutoView 200
9. Locate your first input cable. It will have a 25-pin "D" connector at one end. Plug this cable into any lettered
channel port on the rear of the AutoView 200. The other end of the input cable will have five connectors: a 15-
pin "HDD" connector for your video, a 5-pin DIN/6-pin miniDIN connector for an AT or PS/2 keyboard connec-
tion, and a 9-pin serial/6-pin miniDIN connector for a serial or PS/2 mouse connection. The PS/2 mouse
connector is designated by a yellow band or mouse icon.
Use only the keyboard and mouse connectors that are appropriate for your PC, and leave the others unconnected.
Use only the keyboard and mouse connectors that are appropriate for your PC, and leave the others unconnected.
Use only the keyboard and mouse connectors that are appropriate for your PC, and leave the others unconnected.
Use only the keyboard and mouse connectors that are appropriate for your PC, and leave the others unconnected.
Use only the keyboard and mouse connectors that are appropriate for your PC, and leave the others unconnected.
Plug these connectors into the matching ports on your computer.
10. Locate your next input cable. Repeat step 4 until all computers are properly attached to the AutoView 200.

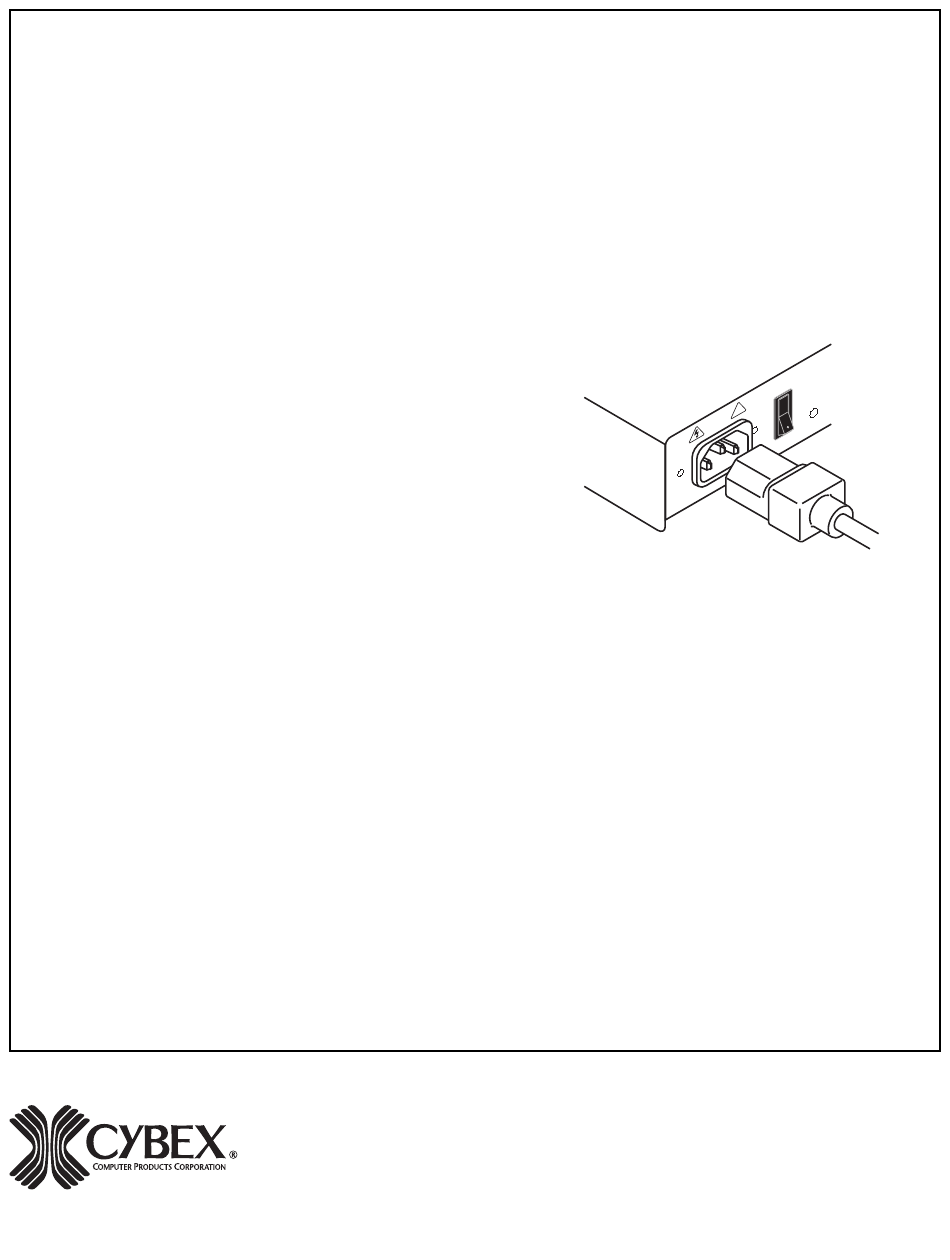

11. Locate the power cord that came with your AutoView 200 unit.
Plug it into the IEC power connector on the AutoView 200. Make
sure that the AutoView 200 power switch is off, then plug the
other end of the power cord into an appropriate AC wall outlet.
This outlet must be near the equipment and easily accessible to
allow for unplugging prior to any servicing of the unit.
12. Power-up your AutoView 200 unit first, then power-up all at-
tached computers.
The AutoView 200 and all attached computers should be powered-
The AutoView 200 and all attached computers should be powered-
The AutoView 200 and all attached computers should be powered-
The AutoView 200 and all attached computers should be powered-
The AutoView 200 and all attached computers should be powered-
down before servicing the unit. Always disconnect the power cord
down before servicing the unit. Always disconnect the power cord
down before servicing the unit. Always disconnect the power cord
down before servicing the unit. Always disconnect the power cord
down before servicing the unit. Always disconnect the power cord
from the wall outlet.
from the wall outlet.
from the wall outlet.
from the wall outlet.
from the wall outlet.
AutoView 200
AutoView 200
AutoView 200
AutoView 200
4991 Corporate Drive
Huntsville, Alabama 35805-6201 USA
256-430-4000 (Fax) 256-430-4030
www.cybex.com
1
!
0
H z
/ 6 0
5 0
A ,
, . 1
0 V
2 4
0 -
1 0
Cybex Computer Products International Ltd.
Cybex House, Shannon Free Zone
Shannon, Co. Clare, Ireland
Tel: 00353 61 471 877
Fax: 00353 61 471 871
www.cybex.ie
590-076-001 Rev. A
