Summary of Contents for Alfresco ARTISAN
-
Page 2: General Safety Precautions
Artisan Artisan Professional Grills by Alfresco ™ A division of Superior Equipment Solutions, Inc. ™ 1085 Bixby Drive City of Industry, CA. 91745 3020914 Ph.: (888) 383-8800 Fax: (323) 726-4700 GENERAL SAFETY PRECAUTIONS: This instruction manual contains important information necessary for the proper assembly and safe ... - Page 3 WARNING WARNING FLAMMABLE GAS ELECTRICAL PARTS AND COMPONENTS DISCONNECT ALL PROPANE OR NATURAL GAS DISCONNECT ALL POWER SUPPLIES AND BATTER- SUPPLIES TO THIS UNIT BEFORE SERVICING. IES BEFORE SERVICING. AVERTISSEMENT AVERTISSEMENT GAZ INFLAMMABLE PIÈCES ÉLECTRIQUES ET COMPOSANTS. DÉBRANCHER TOUS LES BLOCS D'ALIMENTA- DÉBRANCHER TOUS LES GAZ PROPANE OU TION ET LES PILES AVANT DE LES RÉPARER.

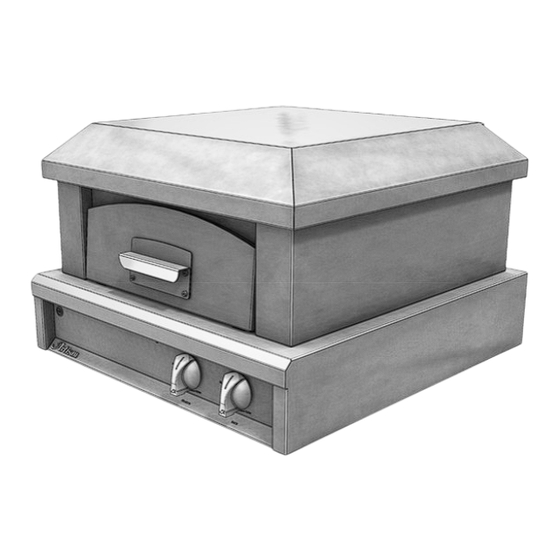

- Page 4 READ THIS CARE AND USE MANUAL CAREFULLY AND COMPLETELY BEFORE USING YOUR PIZZA OVEN TO REDUCE THE RISK OF FIRE, BURN HAZARD OR OTHER INJURY. KEEP THIS MANUAL FOR FUTURE REFERENCE. Artisan When properly cared for, your Pizza Oven will give safe, reliable service for many years.
- Page 5 For proper lighting and performance of the burners keep the ports clean. It is necessary to clean them periodically for optimum performanceClean the oven with caution. Avoid steam burns; do not use a wet sponge or cloth to clean the oven while it is hot. Some cleaners produce noxious fumes or can ignite when applied to a hot surface.
- Page 6 LOCATING AND ASSEMBLING THE PIZZA OVEN: Artisan When determining a suitable location for your Pizza Oven, take into account concerns such ™ as exposure to wind, rain, sprinklers, proximity to traffic paths and keeping any gas supply line runs as short as possible.
- Page 7 WARNING: To prevent harm and ensure proper operation of your oven, the hearth (bottom) burner must be properly installed with respect to the gas orifices. Be certain that the orifice is inserted completely into the burner’s inlet and that the burner rests firmly on its support screw. It should not move. The burner should not rock side-to-side nor top-to-bottom if properly installed.
- Page 8 HEARTH STONE AND TOP STONE INSTALLATION: Artisan After unpacking the Pizza ™ Oven and before using for the first TOP COVER time, several items need to be proper- ly installed for the oven to operate cor- rectly. EXHAUST ASSEMBLY The Hearth Stones as well as the Top...
- Page 9 FRONT COVER HEARTH STONE SUPPORT BAR HEARTH STONE Figure # 4 Artisan Your Pizza Oven is now fully assembled and ready for its gas connection. ™ GAS CONNECTION—LIQUID PROPANE (LP) NEVER CONNECT THE PIZZA OVEN TO AN UNREGULATED GAS SUPPLY.
- Page 10 QCC1 (CGA-791 or ACME threads) in the standard for compressed gas cylinder valve outlet and inlet connections ANSI/CGA V-1. LP GAS CONNECTION TO LP TANKS: Artisan Your Pizza Oven for use with LP gas comes ™...
- Page 11 RECOMMENDED APPLIANCE AND CYLINDER PLACEMENT: Artisan Pizza Oven should be placed on a non-combustible countertop surface suitable for its ™ operation. (see page 6 for this information). The LP supply cylinder or tank should never be placed on the counter next to the oven as radiated heat from the oven could possibly create a hazardous condition and risk of explosion.
- Page 12 AVERTISSEMENT STORED INDOORS, THE CYLINDER MUST BE DISCONNECTED AND REMOVED FROM THE APPLIANCE. VOTRE RÉGULATEUR DE PRESSION DE ARTISAN PROFESSIONAL GRIL A UNE PRESSION D'ENTRÉE MAXIMALE DE 14" WC (OU ENVIRON 0,5 PSI), ET UNE LIM- MISE EN GARDE ITE DE SÉCURITÉ DE 69" WC (2,5 PSI).
- Page 13 17. This shall be accompanied by one of the following: a. One side of the enclosure shall be completely open; or b. For an enclosure having four sides, a top and a bottom (at least two) ventilation openings at cylinder valve level shall be provided in the side wall, equally sized, spaced at 180 degrees (3.14 rad), and unobstructed.
- Page 14 Ensure that the service pipe supplying the oven is fitted with a shut off valve conveniently positioned and easily accessible as an emergency gas shutoff. Artisan Your Pizza Oven for use with Natural Gas comes equipped with its own regulator which ™...
-
Page 15: Leak Testing
Refer to the ARTP-PZA Specification sheet for additional information. Artisan It is recommended to install an access door such as double sided doors, in order to reach ™... -
Page 16: Lighting Instructions
Do not use the Pizza oven until all connections have been checked and do not leak. Only those parts recommended by the manufacturer should be used on the oven. Substitution Artisan can void the Pizza Oven’s warranty. ™... - Page 17 OVEN IF THE ODOR OF GAS IS PRE- SI L'ODEUR DU GAZ EST PRESENTE. SENT. CALL FOR SERVICE. APPELER LE SERVICE. Artisan TO LIGHT, OPEN THE DOOR COVER. Your Pizza Oven is equipped with an automatic ™ burner lighting system. When the knob is pushed and turned, the automatic lighting system is active.
-
Page 18: Burner Adjustments
NOTE: If the Back Burner is left ON to provide a warm and appealing glow while cooking, please do so at a low setting with minimal flames to prevent the Top Stone from overheating. BURNER ADJUSTMENTS: Artisan NOTE: The Pizza Oven Burners do not require any primary air-mix adjustment as they have ™... -
Page 19: Adjustment Steps
BACK BURNER LOW HEAT SETTING ADJUSTMENT: NOTE: THE LOW HEAT SETTING ON YOUR OVEN IS PRESET AT THE FACTORY. ADJUST ONLY IF ALTI- TUDE OR ENVIRONMENTAL FACTORS ARE CAUSING POOR, LOW HEAT, PERFORMANCE. ADJUSTMENT STEPS: 1. Follow lighting instructions and set the control knob on “HIGH” and allow the burner to preheat for 5 minutes. - Page 20 3. Turn the control knob to “MIN” and wait for the burner temperature to drop and stabilize. 4. Insert a small blade screwdriver into the LOW SETTING screw of the gas valve to begin the Hearth Burner adjustment. 5. Turn counter-clockwise to INCREASE the low heat flame, Clockwise to DECREASE. 6.
-
Page 21: Cooking With Your Pizza Oven
COOKING WITH YOUR PIZZA OVEN: Artisan Your Pizza Oven has been designed to provide very fast heat-up times as well as a broad ™ rage of operating temperatures for cooking different foods. In principle, the oven’s heat sources function as follows: (See Figure # 14) The Hearth Burner directly heats the Hearth Stones and this heat makes its way into the ov-... -
Page 22: Stainless Steel Care
However, some care is required to ensure that the stainless steel can live up to this reputation. DAY TO DAY CARE: Artisan To maintain the original appearance of your Pizza Oven , a regular cleaning routine should ™... -
Page 23: Stainless Steel
Bleaches: Most common domestic bleaches & sterilizing solutions contain chlorine in the form of sodium hypochlorite. If used in concentrated form, bleaches can attack the stainless steel, causing pitting of the surface. They should always be used to the strengths prescribed by the manufacturer and should be thoroughly rinsed off with clean water immediately after use. -
Page 24: Additional Considerations
Visually check flame characteristics and compare to description on page 18 to 20. Adjust if needed. Clean appliance after each use, and check for blockages, especially at the burner orifices, after periods of prolonged non-use. Artisan To maintain the appearance of your Pizza Oven for many years, keep it covered when not in ™... - Page 25 OVEN WON’T LIGHT: First determine if the Spiral Hot Surface Igniters are functioning properly. They should be glowing Yellow -White when operating and should do so within 5 to 10 seconds after turning the knob to “MAX”. If no glow is seen when turning either knob, Is the power cord connected? Has the GFCI tripped? If power supply is okay, then ensure that the knob is properly turned to the “HIGH”...
-
Page 26: Light Bulb Replacement
LIGHT BULB REPLACEMENT: Artisan NOTE: Disconnect all power to your Pizza Oven before any service or light bulb replacement ™ is performed. A Light bulb is located on the front right side of the oven cavity above the Hearth Stone cooking area. - Page 27 Replace the light cover by inserting it into the light fixture at a slight angle until it “SNAPS” into place with the galss cover spring clip. Artisan Power up your Pizza Oven and verify the light bulb operation by turning on the light switch.
- Page 28 Figure # 20 fore re-assembly of all components. ACCENT LIGHT PANEL ASSEMBLY ADDITIONAL IMPORTANT CLEANING AND STORAGE CONSIDERATIONS: Artisan In order to maintain your Pizza Oven in clean working order, it will be necessary, under cer- ™ tain conditions, to take additional precautions.
-
Page 29: How To Obtain Service
Date of installation A brief description of the problem. For all other Artisan™ Grills product inquiries please contact: Artisan™ Professional Grills . Customer Service Department. 1085 Bixby Drive City of Industry, CA. 91745 (888) 383-8800 or (323) 722-7900 (323) 726-4700. - Page 30 NOTES:...
-
Page 31: Service & Replacement Parts
This warranty gives you specific legal rights and you may have other rights, which vary from state to state. 6. No one has the authority to add to or vary Artisan’s warranty, or to create for Artisan any other obligation or liability in connection with the sale or use of its products.
