- Page 1 Barecode configurator em bisphere 85 rue du Molinel 59700 MARCQ-E N-BAROEUL - FRANCE www.embispher e.com Tél: +33(0) 3 20 28 86 00...
-
Page 2: Revision History
HOW TO CONFIGURE THE EMBISCAN ? REVISION HISTORY Date Author Description Tristan Finet 21/05/2015 First draft Modification after internal approval Tristan Finet 05/06/2015 comments Add of the GTIN configuration (§4.16) Tristan Finet 20/07/2015 Add of the keyboard QWERTZ (§4.2) -
Page 3: Laser Safety Information
Your device is an electronic product that needs to be treated with care. Do not subject it to unnecessary shock or vibration. Keep your EmbiScan and its cable away from water, rain and excessively humid areas. Do not disassemble it. There are no user-serviceable parts inside. Opening will void your warranty. -
Page 4: Table Of Contents
HOW TO CONFIGURE THE EMBISCAN ? contents Product description ........................... 4 Hardware configuration ..........................4 Country configuration ..........................5 Others configuration ..........................6 Locking / unlocking ..............................6 Configuration of the keyboard ..........................6 Comparison mode ..............................7 Current configuration ............................. 7 Reset .................................. -

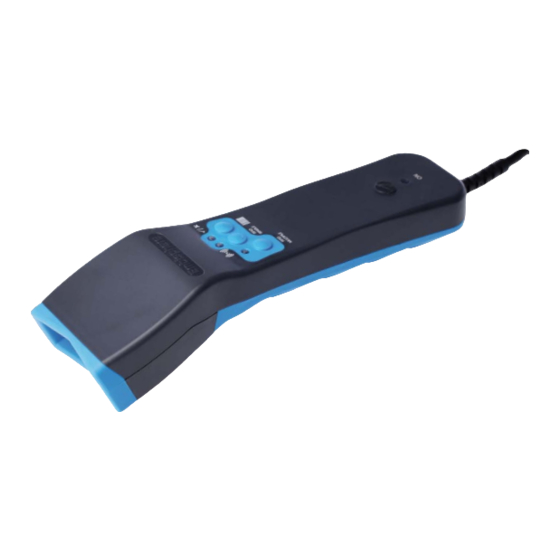

Page 5: Product Description
* Barcode must be used following an update of the embiScan firmware After an update of the embiScan, it’s necessary to scan the Barcode which corresponding to the hardware used. While the hardware configuration is not done, the embiScan blinks in red with bip. -
Page 6: Country Configuration
* Barcode must be used following an update of the embiScan firmware Regarding of the country configuration, after the hardware configuration, you must scan the Barcode of the country where you use the embiScan. Without this configuration, the product emits fast bips and flashing in orange. -
Page 7: Others Configuration
4 O t h e r s c o n f i g u r a t i o n The embiScan default value is « Locked ». It’s means that some parameter can’t be modified. For that, you need to unlocked the embiScan. -
Page 8: Comparison Mode
COMPARISON MODE COMPARISON Current configuration The following barcode return the current configuration of the embiScan. This one is displayed on the PC Screen (see the user manual for more information on how to display information on the PC). FUNCTION BARCODE... -
Page 9: Tag Encryption
HOW TO CONFIGURE THE EMBISCAN ? Tag Encryption The embiScan product can read the barcode data and write it (EAN data) in the tag memory (EPC bank). For that, there is two way of use the embiScan : « Manual » encryption of the tag |... -
Page 10: Epc Company Prefix
HOW TO CONFIGURE THE EMBISCAN ? EPC company prefix The following barcode let you choose the company prefix to use for the read/write in the tag memory bank. This settings depends of the GS1 declaration. The default setting is the 6. -
Page 11: Configuration Of The Sound
Allow to only read the user memory area from the nearest tag WARNING - This function can only be used in RFID SINGLE MODE WARNING – when you read one tag without DATA USER, a reset of the embiScan is automatically done ! BARCODE MODE... -
Page 12: Full Mode
BANK DATA USER (1) (2) WARNING - This function can only be used in RFID SINGLE MODE WARNING – when you read one tag without DATA USER, a reset of the embiScan is automatically done ! FULL mode FULL mode give the possibility to read several informaiton in a tag. For that, you can select or unselect the required information (information that you want to read). - Page 13 FULL DATA USER OFF WARNING - This function can only be used in RFID SINGLE MODE WARNING – when you read one tag without DATA USER, a reset of the embiScan is automatically done ! E m b i s p h e r e C o n f i d e n t i a l & P r o p e r t y...
-
Page 14: Configuration Of The Separator
HOW TO CONFIGURE THE EMBISCAN ? Configuration of the separator Information are displayed on the PC screen and separated by a punctuation. The default settings to separate the words is a comma. But you can change it at any time with the following barcode :... -
Page 15: Application Identifier Code Configuration
HOW TO CONFIGURE THE EMBISCAN ? Application Identifier Code configuration This configuration gives the possibility to manage the display of the Application Identifier Code. If the Application Identifier Code is activated, the data will be displayed as below: <EPC>(01)<EAN>(21)<SERIAL_NUMBER>separator<TID> separator <DATA_USER> separator If the Application Identifier Code is deactivated, the data will be displayed as below: <EPC>separator<EAN>separator<SERIAL_NUMBER>separator<TID>separator<DATA_USER>separator... -
Page 16: Configuration Of The Delay To Scan
HOW TO CONFIGURE THE EMBISCAN ? Configuration of the delay to scan When you keep pushed the scan barcode button of the embiScan, there is a delay between two read (laser activation). This delay can be configurated. Default settings is 400ms. -
Page 17: Configuration Of The Power
HOW TO CONFIGURE THE EMBISCAN ? Configuration of the power You can modify the power to read a Tag in RFID single mode. FUNCTIONS BARCODE MINIMUM POWER RFID SINGLE MODE MINIPOWER_RFID_SINGLE_USE MIDDLE POWER RFID SINGLE MODE MIDDLEPOWER_RFID_SINGLE_USE MAXIMUM POWER... -
Page 18: Configure The Gtin
HOW TO CONFIGURE THE EMBISCAN ? Configure the GTIN The EPC schema to encode a GTIN is the SGTIN which consists of the GTIN plus a unique product or serial number. The SGTIN scheme has different encodings like 64, 96, or 198 bits. The following barcode let you the possibility to configure the length of the GTIN that you used in conformity with the GS1 declaration. -
Page 19: Configure The Epc Size
HOW TO CONFIGURE THE EMBISCAN ? Configure the EPC size With the following barcode, you can configure the maximum size for the EPC stored in buffer. The EPC size has incidence on the EPC buffer size. More the EPC is short, the more you can keep tags in the buffer.
