Ecom CN Manual page 4

Particulate filter
(located below
water trap cap)
Electrical
connection
to analyzer
Note: The CN constantly monitors the level of water in the water trap.
When the condensate filter has fully expanded, the electrodes touch
the electrode plate. This signals the pump to stop, protecting the
sensors from harmful exposure. When this happens, it is time to
change the expandable filter.
Scroll Up
Save Snapshot to
Internal Memory
OK / Press to
Confirm
Escape / Return
to Previous Screen
Power ON/OFF

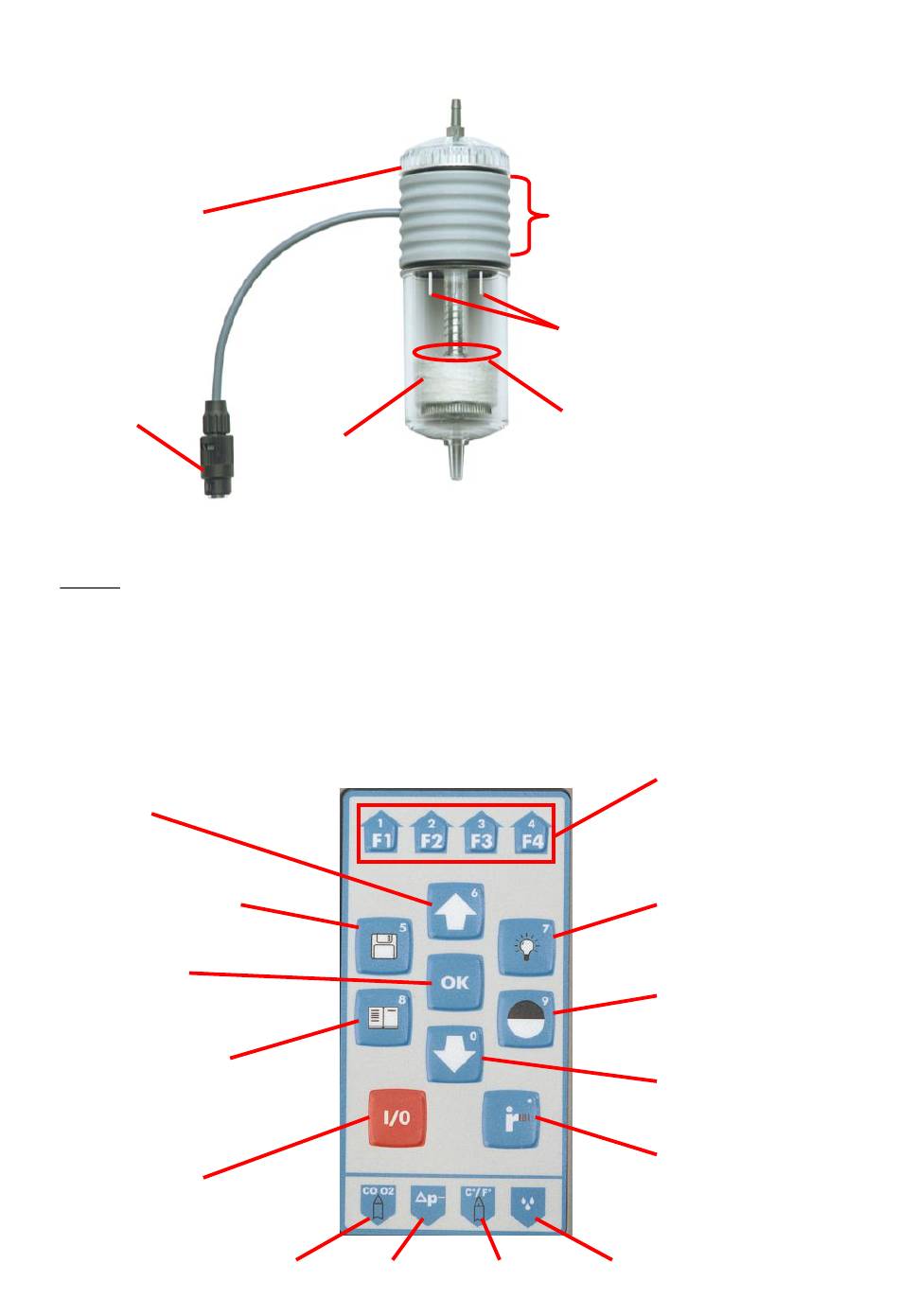

Water Trap Assembly
Expandable
condensate
filter
Keypad
Gas
Draft/
Pressure
Dispersive cooler
with spiraling
gas path
Condensate
monitoring
electrodes
Electrode plate
(located on top of
expandable filter)
Condensate
Gas
Monitoring
Temp.
Function keys
Display backlight
ON/OFF
Contrast
Scroll Down
Print to IR Printer
