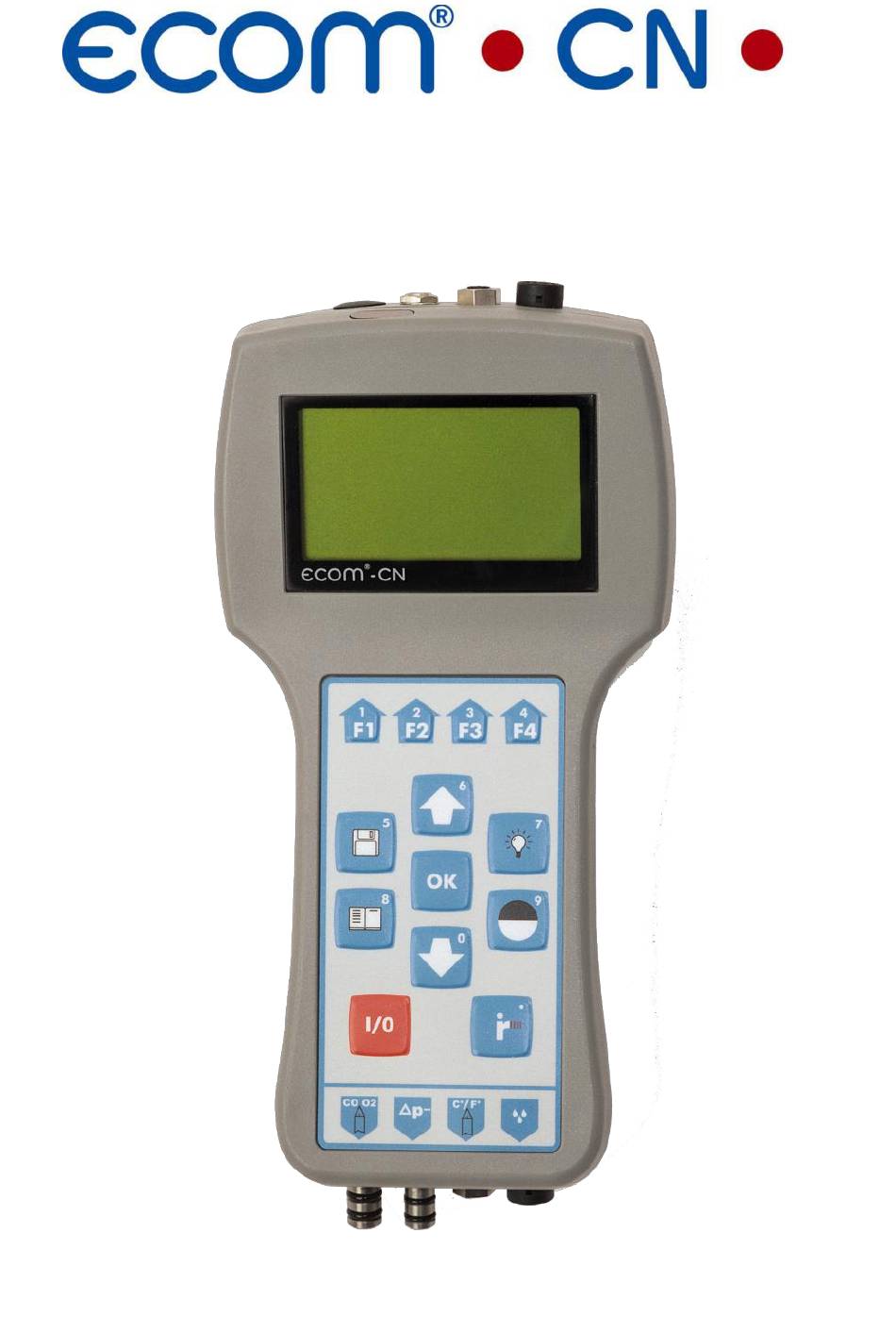

A supplement to the CN manual
w ww . e c o mus a . c o m

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CN and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ecom CN

Summary of Contents for Ecom CN

  • Page 1 A supplement to the CN manual w ww . e c o mus a . c o m...

  • Page 2: Important Things To Remember

    In order to receive accurate measurements, please allow reading to stabilize for at least 2 minutes. The CN is not suitable for continuous emission testing. Please allow at least 10 minutes of fresh air purge for each hour of testing.
  • Page 3 Connections Infrared sensor (for IR printer) Auxiliary temperature connection Pressure (optional) Ambient Charging connection temperature socket (optional) sensor Bottom Thermocouple Connection Gas Connection Condensate Monitoring Connection Draft/Pressure Connection...
  • Page 4 Note: The CN constantly monitors the level of water in the water trap. When the condensate filter has fully expanded, the electrodes touch the electrode plate. This signals the pump to stop, protecting the sensors from harmful exposure. When this happens, it is time to change the expandable filter.

  • Page 5: Calibration Procedure

    Calibration Procedure For best results, the gas concentration should be as close to the expected levels of emissions as possible. Because each sensor is linear through a nominal range, one calibration gas concentration can be used for a reasonably wide range of emission levels. For applications with extremely low or extremely high levels of emissions, the sensors should be calibrated as close as possible to expected concentration levels.
  • Page 6 Calibration Procedure (continued) 2. Swipe calibration magnet over the silver Cal Magnet sticker, located left of the display screen (look under protective cover). The calibration screen should appear with title Adjustment. 3. The analyzer is now in calibration mode. Calibrate your analyzer: 1.

  • Page 7: Data Logging

    This allows you to view the data only. If you want to upload the data to a computer, you will need to send your CN to ECOM for Bluetooth installation. You may also use an IR printer to print snapshots on-the-spot.
  • Page 8 4. Scroll down to select Look At –> Scroll down again to see data 5. Repeat steps 1-5 to retrieve other data snapshots For simpler data logging, you can use Bluetooth to view real-time data on a computer. If you are interested in this feature, please call ECOM at 1-877-ECOM-411.

  • Page 9: Frequently Asked Questions

    Frequently Asked Questions In the Control screen, all important instru- Where do I find important in- ment information is shown (e.g. battery volt- strument information? age, sensor values, serial number, next ser- vice date, operation hours, etc.). The life span depends on the operating hours How long is the life span of the and the instrument equipment.
  • Page 10 Hint: If you have several CN analyzers, you can find the source of an error by exchanging the ac- cessories (probe, hose, temperature sensor, etc.)
  • Page 11 Calculations Carbon Dioxide (CO2) Range=0-CO2max (21 – O measured) = CO Combustion Efficiency (Eta) Range=0-99.9% (A2 + B) – T Efficiency = 100 – 21 – O measured Excess Air (Lambda) Range=1-infinity 1 + O measured Excess air 21 – O measured Losses Range=0-99.9%...

  • Page 12: Technical Data

    Base Unit Battery 6V/2.0 AH NiMH Display Screen LCD Display with Backlight Dimensions (LxHxD) 115mm x 250mm x 77mm Weight 1500g ECOM America Ltd. 1628 Oakbrook Drive Gainesville, GA 30507 Toll Free (877) 326-6411 Phone (770) 532-3280 Fax (770) 532-3620 www.ecomusa.com...
