Expansion PSTN Box CPN10
Quick Start Guide
PSTN box CPN10 is used to connect CP860
conference phones to the PSTN (Public Switched
Telephone Network). It is a cost-effective solution
for PSTN office. Up to 2 cascaded PSTN Boxes can
be installed to an IP conference phone, which allows
you to experience the local three-way conference
conveniently in excellent speech quality with PSTN.
You can also record the calls with a USB flash drive
when using the PSTN box.
Packaging Contents

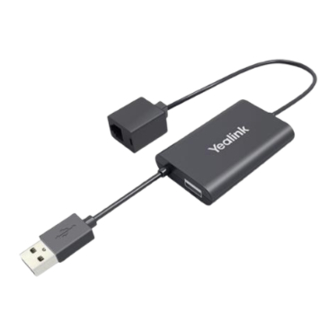

PSTN Box
3m PSTN
Double-side
Quick Start Guide
CPN10
Cable
Tape
1
Advertisement
Table of Contents
Related Manuals for Yealink Expansion PSTN Box CPN10
Summary of Contents for Yealink Expansion PSTN Box CPN10
- Page 1 Expansion PSTN Box CPN10 Quick Start Guide PSTN box CPN10 is used to connect CP860 conference phones to the PSTN (Public Switched Telephone Network). It is a cost-effective solution for PSTN office. Up to 2 cascaded PSTN Boxes can be installed to an IP conference phone, which allows you to experience the local three-way conference conveniently in excellent speech quality with PSTN.
- Page 2 Hardware Component Instructions The following figure shows the primary hardware components of CPN10: USB Plug PSTN Port USB Port Installing the Expansion PSTN Box Installing a PSTN box , as shown below: PSTN Port Optional USB flash drive CP860 Conference Phones Note: USB flash drive should be purchased separately.
- Page 3 Configuring the PSTN Account When one PSTN box is connected successfully, the LCD screen prompts “Connect PSTN1 Go to Setting?”. When the second PSTN box CPN10 is connected successfully, the LCD screen prompts “Connect PSTN2 Go to Setting?”. Configuring the PSTN account: 1.
- Page 4 Viewing the PSTN Account Status 1. Press when the phone is idle, and then press More->Accounts. You can also press Menu->Status->More-> Accounts. The LCD screen displays the connected PSTN account status: Default Account Registered Unregistered Disabled...
- Page 5 PSTN转接盒CPN10快速入门指南 PSTN转接盒CPN10实现了CP860会议话机与PSTN （公共交换电话网络）网络的自由连接，为只有PSTN 接口的中小型会议室，提供高效便捷的解决方法。一台 会议话机最多支持2个转接盒级联，你可以使用这种级 联方式在PSTN网络中进行三方会议通话。PSTN转接 盒带有U盘接口，你可以在通话中连接U盘进行录音。 包装清单 PSTN转接盒 3米 PSTN 线 双面胶 快速入门指南 CPN10...
- Page 6 硬件介绍 CPN10主要硬件结构说明如下： USB 插头 USB 接口 PSTN 接口 连接转接盒 连接PSTN转接盒，如下所示： PSTN 接口 U盘（可选） CP860 会议话机 说明：U盘需要另外购买。 PSTN转接盒级联（实现PSTN三方会议），如下所示： CP860 会议话机 你可以使用附带的双面胶固定两个转接盒。...
- Page 7 设置PSTN账号 PSTN转接盒连接成功后，话机液晶界面提示“连接 PSTN1 进行设置？”。当第二个PSTN转接盒连接成 功时，话机液晶提示“连接PSTN2 进行设置？” 设置PSTN账号： 1. 按确定软键进入账号设置界面。 2. （可选项）按 或 选择相应的PSTN账号。 3. 按进入软键。 4. 按 或 从账号状态区域中选择启用或禁用。 5.（可选）在标签区域中输入显示在液晶界面的标签。 6. 按保存软键保存操作。 PSTN账号配置也可以通过路径：菜单->设置->高级 设置（默认密码：admin）->账号。 设置默认账号： 1. 按菜单->设置->高级设置(默认密码：admin)-> 账号。 2. 按 或 选择相应的PSTN账号。 3. 按默认软键。...
- Page 8 查看PSTN账号状态 1. 在待机界面按 ，然后按更多->账号。 你也可以按菜单->状态->更多->账号。 话机液晶界面显示已连接的PSTN账号状态： 默认账号 注册上 注册失败 禁用...
