X-ray Tube Stator Cable

The X-ray stator cable is the cable connecting between the X-ray generator and the X-ray tube. Although
CPI does not supply this cable, CPI requires the cable to meet the following requirements:
1. The cable must be shielded.
2. The cable must meet 600 VAC-voltage rating.
The following two procedures will guide the connection of the X-ray stator cable for the low-speed starter
and the dual-speed starter.
Connecting the X-ray Tube Stator Cable for Low-speed Starter
The J7 connector is designed for connecting the X-ray tube stator cable for the low-speed starter. It is
located on the HV auxiliary board as shown in Figure 2-5.

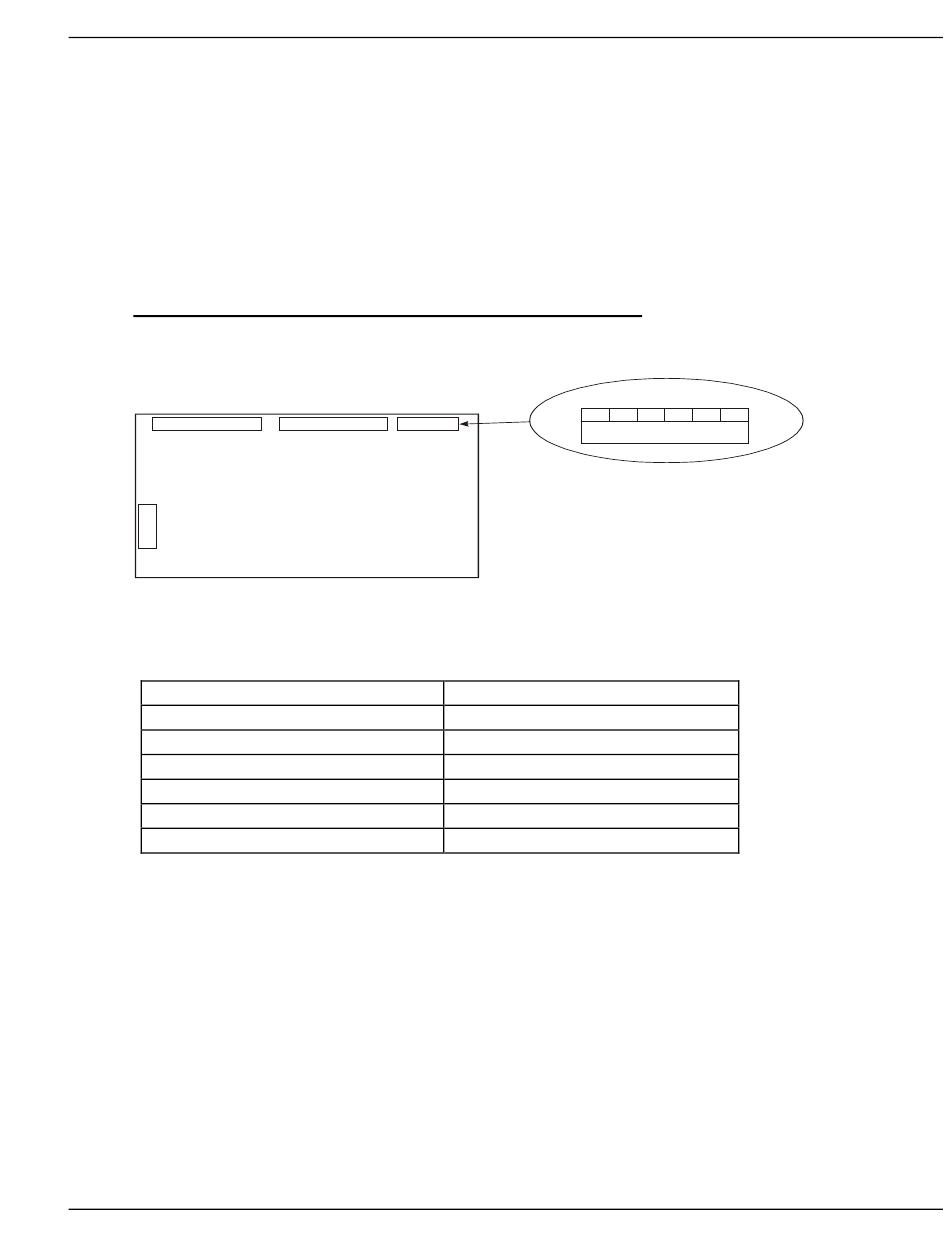

High Voltage Auxiliary Board
Figure 2-5: the connector of the X-ray tube stator cable for the low-speed starter
The next table shows the pin information of the J7 connector.
FUNCTION
SHIFT
MAIN
COMMON
GROUND
THERMAL SWITCH (Term 1)
THERMAL SWITCH (Term 2)
To connect the X-ray tube stator cable for the low-speed starter:
1. Route the X-ray tube stator cable towards the J7 connector on the HV auxiliary board as shown in
Figure 2-5.
THE SHIELD FOR THE STATOR CABLE MUST BE PROPERLY GROUNDED AT BOTH THE
TUBE END AND THE GENERATOR END OF THE CABLE.
2. Connect the shield ground of the stator cable to J7-3 on the HV auxiliary board.
3. Connect the X-ray tube stator cable to J7 on the HV auxiliary board as per the table above.
4. Perform the procedure, Checking the Connection of the X-ray Tube Stator Cable, described in the
following section.
