Bose ControlSpace ESPLink Manual

CAUTION: Installation should only be performed by trained service personnel.
CAUTION: Make no modification to the system or accessories. Unauthorized alterations may compromise safety, regulatory compliance and system performance.
CAUTION: ESD sensitive device. Handle with care.
1. Turn off and unplug the ESP.
2. Detach the top cover by removing the 8 screws.
3. Remove a bracket from an empty slot from slots 5-8 by removing the 2 screws (save these screws). The ESPLink Output Card will replace this bracket.
4. Position the card in the chassis. Be sure to align the card's LEDs with the holes in the front of the chassis, and make sure the connector on the side of the card is aligned
with the connector on the motherboard. Use the black guide on the bottom of the case to direct the card using the grooves. See Figure 1.
5. When the connector on the card is aligned above the connector on the motherboard, press gently to mate the connectors. See
6. Screw the card into place.
7. Reattach the top cover and fasten the 8 screws.
8. Plug in the power supply and turn on the ESP.

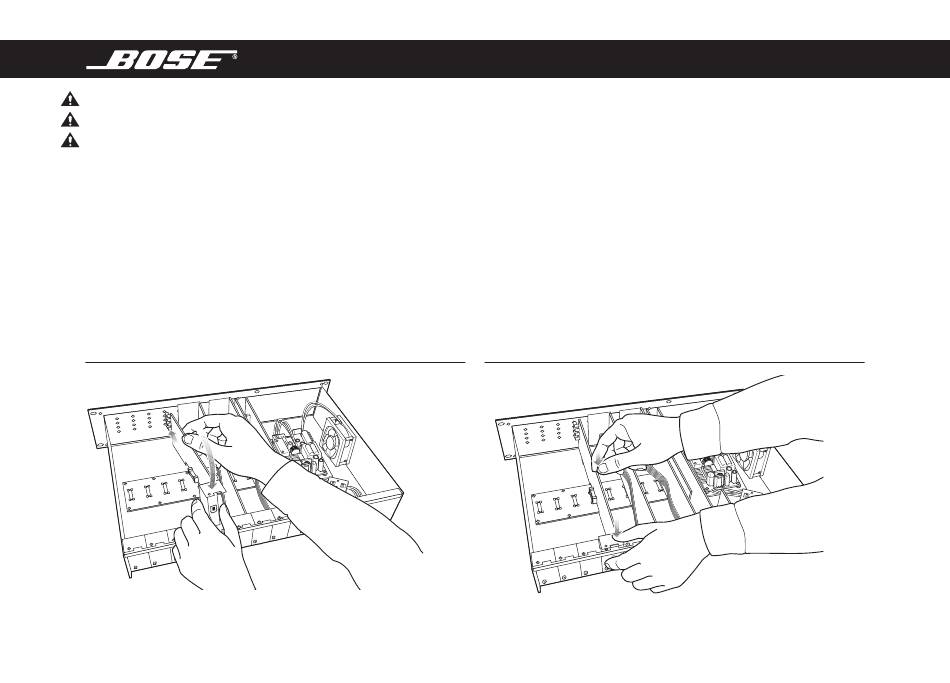

Figure 1
ControlSpace ESPLink Output Card
®
Figure 2
Figure 2.
