Bose ControlSpace CobraNet Quick Start Manual

Installation should only be performed by trained service personnel.
To comply with raditated emissions standards, shieled cat-5 cable is required.
IMPORTANT NOTE: The ControlSpace CobraNet expansion card can only be installed in an ESP capable of accepting the CobraNet card. To identify if the ESP is
compatible locate the serial number on the rear of the unit, and note the first six digits of the serial number.
A compatible ESP-88 will have the first six digits of 050137, and a compatible ESP-00 will have 050138.
1. Turn off and unplug the ESP, and detach the top cover by removing the 8 screws.
2. Remove the two screws from an available expansion card blank panel. (Save the screws)
3. Be sure to align the card's LEDs with the holes in the front of the chassis, and make sure the connector on the side of the card is aligned with the connector
on the motherboard. Use the black guide on the bottom of the case to direct the card using the grooves. See Figure 1.
4. When the connector on the card is aligned above the connector on the motherboard, press gently to mate the connectors. See Figure 2.
5. Screw the card into place using the two screws from the blank panel.
6. Reattach the top cover and fasten the 8 screws. Plug in the power supply and turn on the ESP-88.

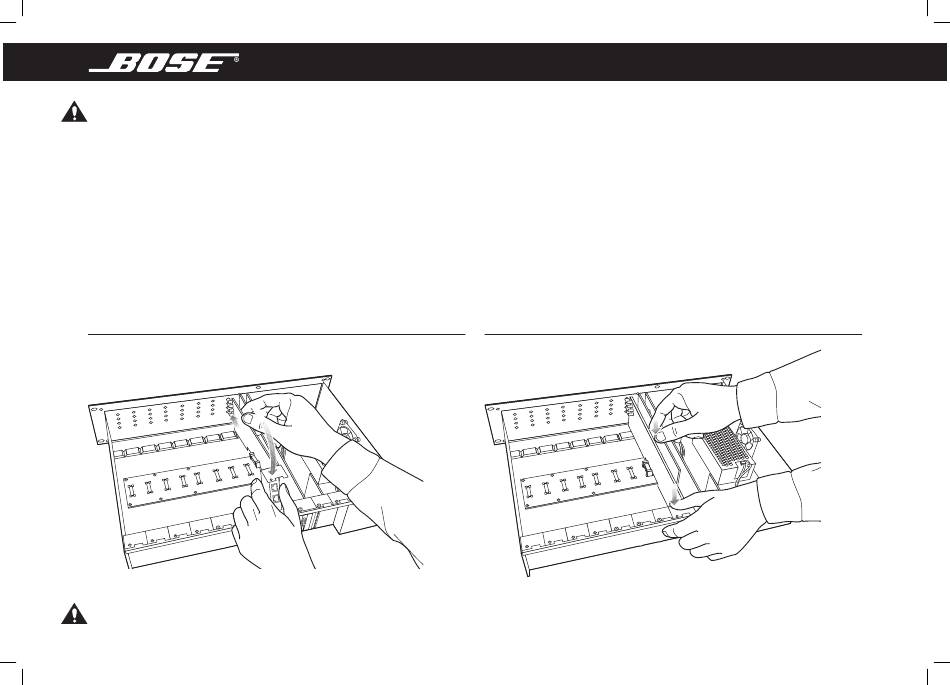

Figure 1
CAUTION: ESD sensitive device. Handle with care.
ControlSpace CobraNet
®
Digital Audio Interface Card
®
Figure 2
