Di-LOG DL9205 Operating Manual

Autoranging multimeter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

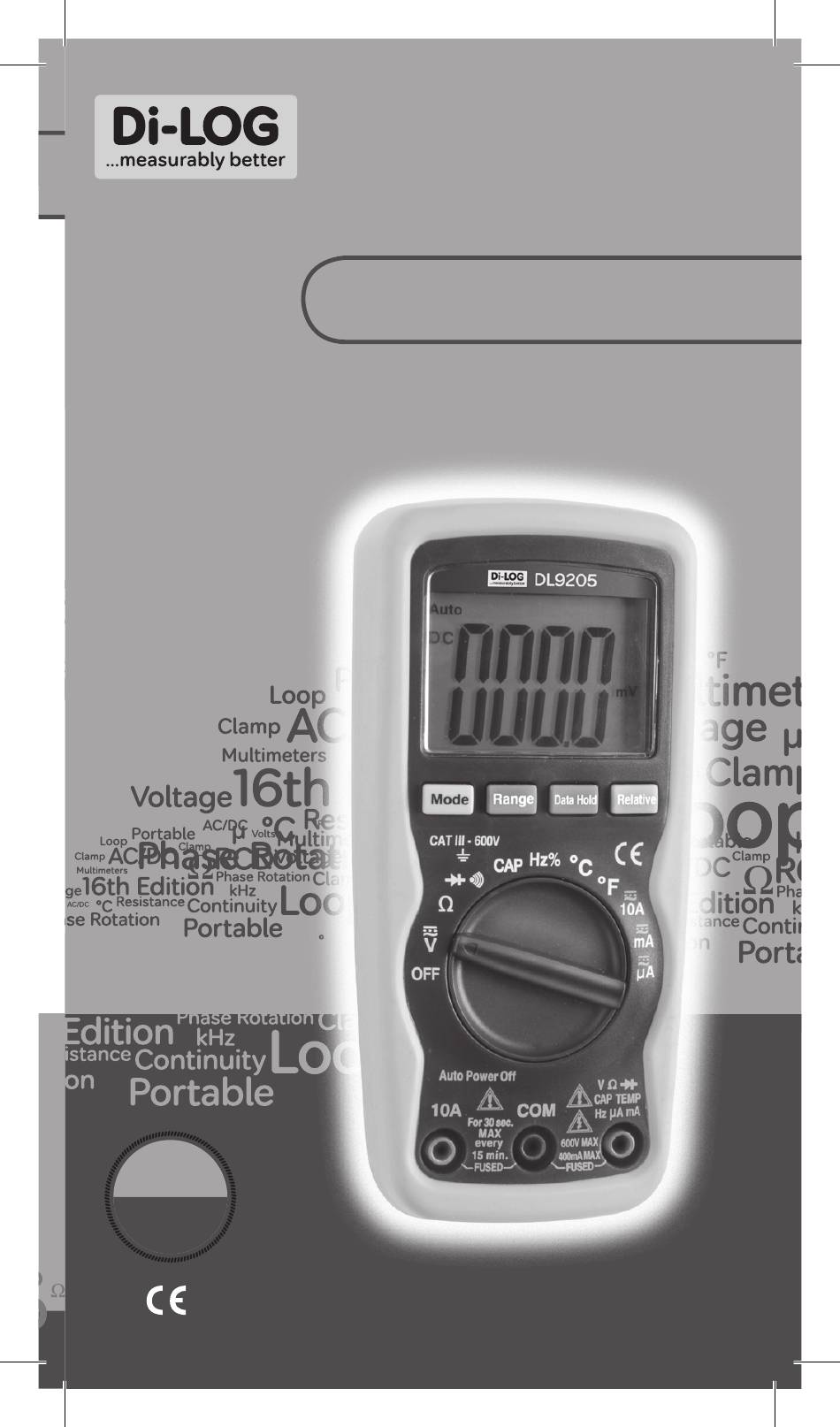

operating manual
DL9205
AUTORANGING
MULTIMETER
EN
61010-1
CAT III
600V

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DL9205 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Di-LOG DL9205

Summary of Contents for Di-LOG DL9205

  • Page 1 DL9205 AUTORANGING MULTIMETER 61010-1 CAT III 600V...

  • Page 2: Safety Information

    Safety Information This manual contains information that must be followed for operating the meter safely and maintaining the meter in a safe operating condition. If this meter is not used in the manner specified, the protection provided may be impaired. Warning! Warns of potential danger, refer to the instruction manual to avoid personal injury or damage to the meter.
  • Page 3 Replace damaged leads with identical model or specification before using the meter. Where applicable use GS38 approved leads (not supplied) these are available from Di-Log. When using test leads keep fingers behind the finger guards. Do not apply more than the rated voltage, as marked on the meter between the terminals or between any terminal and ground.
  • Page 4 Safety Information Before making a measurement ensure that the rotary switch is set to the appropriate range. Do not turn the rotary switch whilst making a measurement. Use the appropriate terminals, function and range for your measurements. If the value to be measured is not known use the maximum measurement position and reduce the range step by step until a satisfactory reading is obtained.
  • Page 5 Safety Information Replace the battery as soon as the low battery indicator appears. If the battery is low the meter may give false readings. Turn the meter power off when not in use,. Remove the battery if the meter is in use for a long period. Constantly check the battery as it may have leaked.

  • Page 6: Input Limits

    Input Limits Never apply voltage or current to the meter that exceeds the specified maximum: Function Maximum V DC or V AC 600V DC, 600V AC mA DC/AC 400mA DC/AC A DC/AC 10A DC/AC (30 seconds max every 15 minutes) Frequency, Resistance, 250V DC/AC Capacitance, Duty Cycle,...

  • Page 7: Controls And Inputs

    Controls and Inputs 1. 4000 count Liquid Crystal Display with symbolic signs. 2. Function rotary switch. 3. 10A (positive) input jack for 10A DC or AC measurements. 4. COM (negative) input terminal. 5. Positive input terminal. 6. MODE pushbutton. 7. Range pushbutton. 8.

  • Page 8: Specifications

    Specifications The instrument complies with: EN61010-1. Insulation: Class2, Double insulation. Overvoltage category: CATIII 600V. Display: 4000 counts LCD display with function indication. Polarity: Automatic, (-) negative polarity indication. Overrange: “OL” mark indication. Low battery indication: The “BAT” is displayed when the battery voltage drops below the operating level.
  • Page 9 Specifications DC Voltage (Auto-ranging) Range Resolution Accuracy 400.0mV 0.1mV ±0.5% of rdg + 2 dgts 4.000V 40.00V 10mV ±1.2% of rdg + 2 dgts 400.0V 100mV 600V ±1.5% of rdg + 2 dgts Input Impedance: 7.8MΩ. Maximum Input: 600V dc or 600V ac rms. AC Voltage (Auto-ranging except 400mV) Range Resolution...
  • Page 10 Specifications AC Current (Auto-ranging for uA and mA) Range Resolution Accuracy 400.0uA 0.1uA ±1.5% of rdg + 5 dgts 4000uA 40.00mA 10uA ±1.8% of rdg + 5 dgts 400.0mA 100uA 10mA ±3.0% of rdg + 7 dgts Overload Protection: 0.5A / 250V and 10A / 250V Fuse. Frequency Range: 50 to 400 Hz.

  • Page 11: Duty Cycle

    Specifications Frequency (Auto-ranging) Range Resolution Accuracy 9.999Hz 0.001Hz 99.99Hz 0.01Hz ±1.5% of rdg + 5 dgts 999.9Hz 0.1Hz 9.999kHz ±1.2% of rdg + 3 dgts 99.99kHz 10Hz 999.9kHz 100Hz 9.999MHz 1kHz ±1.5% of rdg + 4 dgts Sensitivity: >0.5V RMS while ≤ 1MHz ; Sensitivity: >3V RMS while >1MHz ;...

  • Page 12: Specification

    Specification Diode Test Range Resolution Accuracy 0.3mA typical 1 mV ±10% of rdg + 5 dgts Open circuit voltage: 1.5V dc typical. Overload protection: 250V dc or ac rms. Audible continuity Audible threshold: Less than 150Ω; Test current: <0.3mA Overload protection: 250V dc or ac rms.

  • Page 13: Operation

    Operation Warning: RISK OF ELECTROCUTION. HIGH-VOLTAGE CIRCUITS, BOTH AC AND DC, ARE VERY DANGEROUS AND SHOULD BE MEASURED WITH GREAT CARE. 1. ALWAYS turn the function switch to the OFF position when the meter is not in use. This meter has Auto OFF that automatically shuts the meter OFF if 15 minutes elapse between uses.
  • Page 14 Operation Range Button When the meter is first turned on, it automatically goes into AutoRanging. This automatically selects the best range for the measurements being made and is generally the best mode for most measurements. For measurement situations requiring that a range be manually selected, perform the following: 1. P ress the RANGE button. The “AUTO” display indicator will turn off. 2. P ress the RANGE button to step through the available ranges until you select the range you want. 3. P ress and hold the RANGE button for 2 seconds to exit the ManualRanging mode and return to AutoRanging.(If backlight is turned on, please press BACKLIGHT button it will turn off). Data Hold Button The Data Hold function allows the meter to “freeze” a measurement for later reference. 1. P ress the DATA HOLD button to “freeze” the reading on the indicator. The indicator “HOLD” will be appear in the display. 2. P ress the DATA HOLD button to return to normal operation.
  • Page 15 Operation Relative Button The relative measurement feature allows you to make measurements relative to a stored reference value. A reference voltage, current, etc. can be stored and measurements made in comparison to that value. The displayed value is the difference between the reference value and the measured value. P erform any measurement as described in the 1. operating instructions. P ress the RELATIVE button to store the reading 2. in the display and the “REL” indicator will appear on the display. T he display will now indicate the difference be- 3. tween the stored value and the measured value. P ress the RELATIVE button to return to normal 4. operation.

  • Page 16: Dc Voltage Measurements

    DC Voltage Measurements Caution: DO NOT MEASURE DC VOLTAGES IF A MOTOR ON THE CIRCUIT IS BEING SWITCHED ON OR OFF. LARGE VOLTAGE SURGES MAY OCCUR THAT CAN DAMAGE THE METER. 1. S et the function switch to the V DC position (“mV” will appear in the display). 2. I nsert the black test lead banana plug into the negative (COM) terminal and the red test lead banana plug into the positive (V) terminal.

  • Page 17: Ac Voltage Measurements

    AC Voltage Measurements Warning: RISK OF ELECTROCUTION. THE PROBE TIPS MAY NOT BE LONG ENOUGH TO CONTACT THE LIVE PARTS IN- SIDE SOME 240V OUTLETS FOR APPLIANCES BECAUSE THE CONTACTS ARE RECESSED DEEP IN THE OUTLETS. AS A RESULT, THE READING MAY SHOW 0 VOLTS WHEN THE OUTLET ACTUALLY HAS VOLTAGE ON IT.

  • Page 18: Dc Current Measurements

    DC Current Measurements Caution: DO NOT MAKE CURRENT MEASUREMENTS ON THE 10A SCALE FOR LONGER THAN 30 SECONDS. EXCEEDING 30 SECONDS MAY CAUSE DAMAGE TO THE METER AND/OR THE TEST LEADS. 1. I nsert the black test lead banana plug into the negative (COM) terminal. 2. F or current measurements up to 4000μA DC, set the function switch to the μA position and insert the red test lead banana plug into the (μA) terminal.
  • Page 19 DC Current Measurements 6. R emove power from the circuit under test, then open up the circuit at the point where you wish to measure current. 7. C onnect the black test probe tip to the negative side of the circuit. Connect the red test probe tip to the positive side of the circuit. 8. A pply power to the circuit. 9. R ead the current in the display. The display will indicate the proper decimal point, value and symbol.

  • Page 20: Ac Current Measurements

    AC Current Measurements Warning: T O AVOID ELECTRIC SHOCK, DO NOT MEASURE AC CURRENT ON ANY CIRCUIT WHOSE VOLTAGE EXCEEDS 250V AC. Caution: DO NOT MAKE CURRENT MEASUREMENTS ON THE 10A SCALE FOR LONGER THAN 30 SECONDS. EXCEEDING 30 SECONDS MAY CAUSE DAMAGE TO THE METER AND/OR THE TEST LEADS.
  • Page 21 AC Current Measurements 6. R emove power from the circuit under test, then open up the circuit at the point where you wish to measure current. 7. C onnect the black test probe tip to the negative side of the circuit. And connect the red test probe tip to the positive side of the circuit. 8. Apply power to the circuit. 9. R ead the current in the display. The display will indicate the proper decimal point, value and symbol.

  • Page 22: Resistance Measurements

    Resistance Measurements Warning: TO AVOID ELECTRIC SHOCK, DISCONNECT POWER TO THE UNIT UNDER TEST AND DISCHARGE ALL CAPACITORS BEFORE TAKING ANY RESISTANCE MEASUREMENTS. REMOVE THE BATTERIES AND UNPLUG THE LINE CORDS. 1. S et the function switch to the Ω position. 2. I nsert the black test lead banana plug into the negative (COM) terminal and the red test lead banana plug into the positive Ω terminal.

  • Page 23: Continuity Check

    Continuity Check Warning: TO AVOID ELECTRIC SHOCK, NEVER MEASURE CONTINUITY ON CIRCUITS OR WIRES THAT HAVE VOLTAGE ON THEM. 1. Set the function switch to the position. 2. I nsert the black lead banana plug into the negative (-) terminal (COM) and the red test lead banana plug into the positive (+) terminal (Ω). 3. P ress the button until the symbol appears in the display. 4. C onnect the test probe tips to the circuit or wire you wish to check. 5. I f the resistance is less than approximately 30Ω, the audible signal will sound. The display will also show the actual resistance.

  • Page 24: Diode Test

    Diode Test Warning: TO AVOID ELECTRIC SHOCK, DO NOT TEST ANY DIODE THAT HAS VOLTAGE ON IT. 1. Set the function switch to position. 2. P ress the button until the symbol appears in the display. 3. I nsert the black test lead banana plug into the negative (-) terminal (COM) and the red test lead banana plug into the positive (+) terminal(Ω). 4. C onnect the test probe tips to the diode or semiconductor junction you wish to test. Note the meter reading 5. R everse the probe polarity by switching probe position. Note this reading. 6. The diode or junction can be evaluated as follows: A. I f one reading shows a value and the other reading shows OL, the diode is good.

  • Page 25: Frequency Measurements

    Frequency Measurements 1. Set the function switch to the FREQ position. 2. I nsert the black test lead banana plug into the negative (-) terminal (COM) and the red test lead banana plug into the positive (+) terminal (F). 3. Connect the test probe tips to the circuit under test. 4. R ead the frequency in the display. The digital reading will indicate the proper decimal point, symbols (Hz, kHz) and value.

  • Page 26: Capacitance Measurements

    Capacitance Measurements Warning: TO AVOID ELECTRIC SHOCK, DISCONNECT POWER TO THE UNIT UNDER TEST AND DISCHARGE ALL CAPACITORS BEFORE TAKING ANY CAPACITANCE MEASUREMENTS. REMOVE THE BATTERIES AND UNPLUG THE LINE CORDS. 1. S et the function switch to the CAP position. (“nF” and a small value will appear in the display). 2. I nsert the black test lead banana plug into the negative (-) terminal (COM) and the red test lead banana plug into the positive (+) terminal(CAP). 3. C onnect the test leads to the capacitor to be tested.

  • Page 27: Temperature Measurement

    Temperature Measurement Warning: TO AVOID ELECTRIC SHOCK, DISCONNECT BOTH TEST PROBES FROM ANY SOURCE OF VOLTAGE BEFORE MAK- ING A TEMPERATURE MEASUREMENT. 1. I f you wish to measure temperature in ˚F, set the function switch to the ˚F range. If you wish to measure temperature in ˚C, set the function switch to the ˚C range. 2. I nsert the type K thermocouple probe black test lead banana plug into the negative COM terminal and the red test lead banana plug into the positive Temp terminal. 3. C onnect the Temperature Probe head to the part whose temperature you wish to measure. Keep the probe connected to the part under test until the reading stabilizes (about 30 seconds). 4. R ead the temperature in the display. The digital reading will indicate the proper decimal point and value.

  • Page 28: Replacing The Battery

    Replacing the Battery Warning: TO AVOID ELECTRIC SHOCK, DISCONNECT THE TEST LEADS FROM ANY SOURCE OF VOLTAGE BEFORE REMOVING THE BATTERY DOOR. 1. W hen the batteries become exhausted or drop below the operating voltage, “BAT” will appear in the right-hand side of the LCD display. The battery should be replaced. 2. D isconnect the test leads from the meter. 3. O pen the battery door by loosening the screw using a Phillips head screwdriver. 4. I nsert the battery into battery holder, observing the correct polarity. 5. P ut the battery door back in place. Secure with the two screws.

  • Page 29: Replacing The Fuses

    Replacing the Fuses Warning: TO AVOID ELECTRIC SHOCK, DISCONNECT THE TEST LEADS FROM ANY SOURCE OF VOLTAGE BEFORE REMOVING THE FUSE DOOR. 1. D isconnect the test leads from the meter and any item under test. 2. O pen the fuse door by loosening the screw on the door using a Phillips head screwdriver. 3. R emove the old fuse from its holder by gently pulling it out. 4. I nstall the new fuse into the holder. 5. A lways use a fuse of the proper size and value (0.5A/250V fast blow for the 400mA range, 10A/250V fast blow for the 10A range).
  • Page 30 Notes...
  • Page 31 Notes...

  • Page 32: Warranty & Maintenance

    Warranty & Maintenance 24 Month Warranty Di-Log instruments are subject to stringent quality controls. If in the course of normal daily use a fault occurs we will provide a 24 month warranty (only valid with invoice). Faults in manufacture and materials defect will be rectified by us free of charge, provided the instrument has not been tampered with and returned to us unopened.
