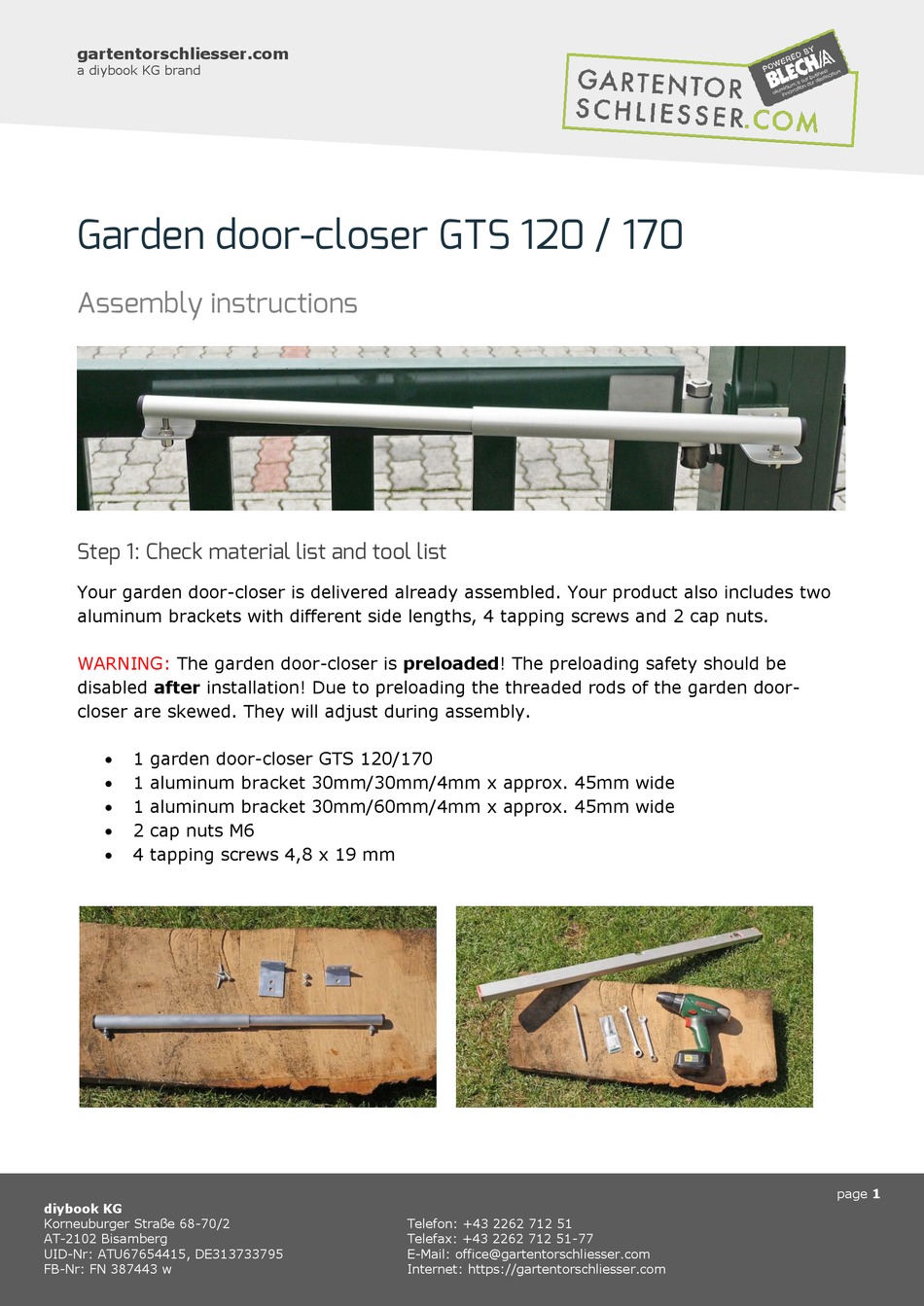

Garden door-closer GTS 120 / 170

Assembly instructions

Step 1: Check material list and tool list

Your garden door-closer is delivered already assembled. Your product also includes two
aluminum brackets with different side lengths, 4 tapping screws and 2 cap nuts.
WARNING:
The garden door-closer is preloaded! The preloading safety should be
disabled after installation! Due to preloading the threaded rods of the garden door-
closer are skewed. They will adjust during assembly.
1 garden door-closer GTS 120/170
1 aluminum bracket 30mm/30mm/4mm x approx. 45mm wide
1 aluminum bracket 30mm/60mm/4mm x approx. 45mm wide
2 cap nuts M6
4 tapping screws 4,8 x 19 mm
diybook KG
Korneuburger Straße 68-70/2
AT-2102 Bisamberg
UID-Nr: ATU67654415, DE313733795
FB-Nr: FN 387443 w
Telefon: +43 2262 712 51
Telefax: +43 2262 712 51-77
E-Mail: office@gartentorschliesser.com
Internet: https://gartentorschliesser.com
page 1
