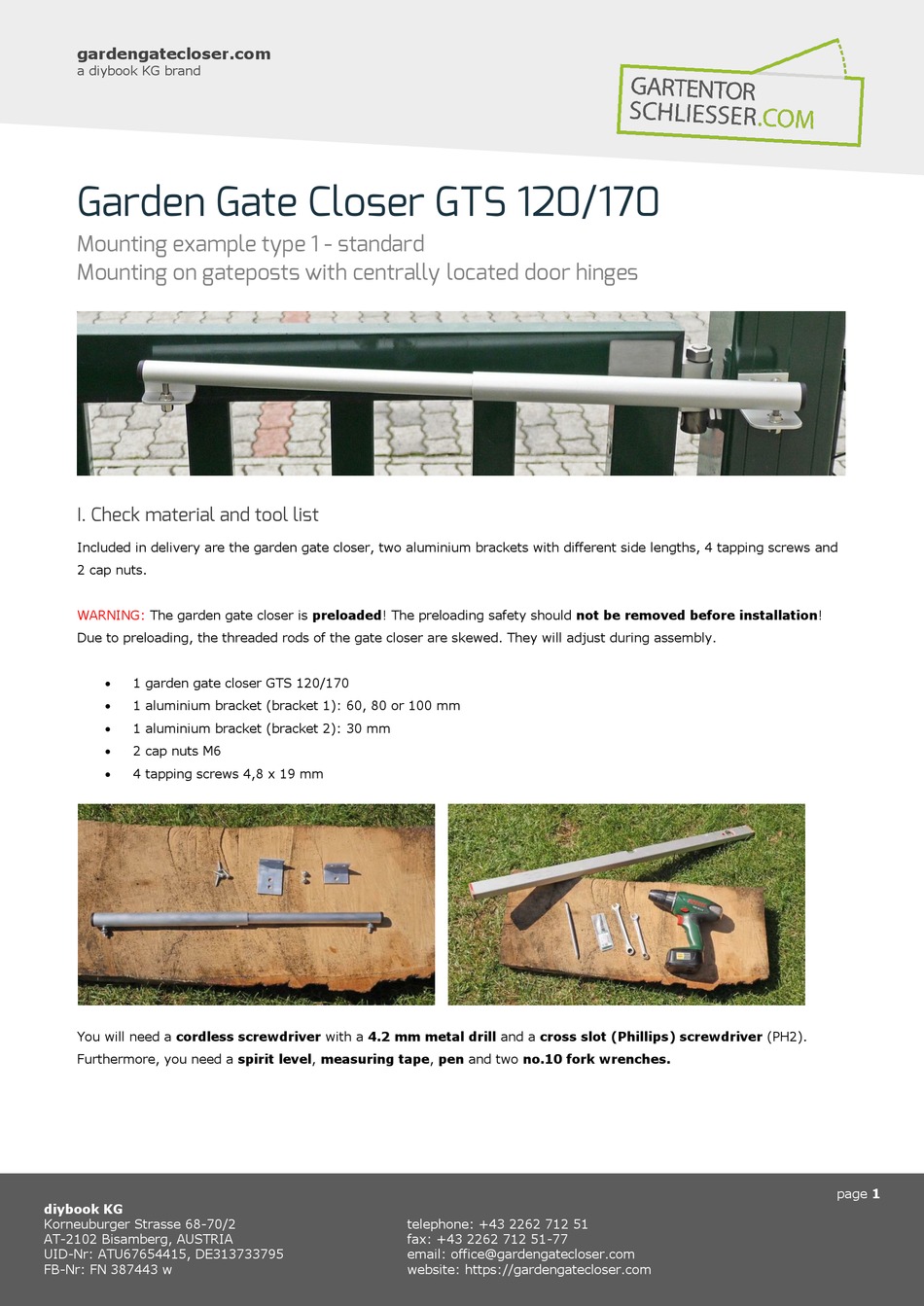

Garden Gate Closer GTS 120/170
Mounting example type 1 - standard
Mounting on gateposts with centrally located door hinges
I. Check material and tool list
Included in delivery are the garden gate closer, two aluminium brackets with different side lengths, 4 tapping screws and
2 cap nuts.
WARNING:
The garden gate closer is preloaded! The preloading safety should not be removed before installation!
Due to preloading, the threaded rods of the gate closer are skewed. They will adjust during assembly.
1 garden gate closer GTS 120/170
1 aluminium bracket (bracket 1): 60, 80 or 100 mm
1 aluminium bracket (bracket 2): 30 mm
2 cap nuts M6
4 tapping screws 4,8 x 19 mm
You will need a cordless screwdriver with a 4.2 mm metal drill and a cross slot (Phillips) screwdriver (PH2).
Furthermore, you need a spirit level, measuring tape, pen and two no.10 fork wrenches.
diybook KG
Korneuburger Strasse 68-70/2
AT-2102 Bisamberg, AUSTRIA
UID-Nr: ATU67654415, DE313733795
FB-Nr: FN 387443 w
telephone: +43 2262 712 51
fax: +43 2262 712 51-77
email: office@gardengatecloser.com
website: https://gardengatecloser.com
page 1
