Summary of Contents for Geneinno TITAN
- Page 1 TITAN USER MANUAL V1.0.0 2018.08...
-
Page 2: Table Of Contents
CONTENT I. Users tips II. Product Overview Titan graphic Connect Titan Bluetooth controller Charging III. APP operation App main page App operation interface APP system settings APP photos and video IV. Brief Troubleshooting V. Appendixes Product parameter list Product warranty... -
Page 3: Users Tips
5.After the end of use, please rinse with fresh water and dry , especially keep the insertion dry.Reduce corrosion of sea water and store in dry ventilation 6.Titan is designed for positive buoyancy. It is recommended to be used in clean water so as not to stick sediment to affect buoyancy balance. -
Page 4: Product

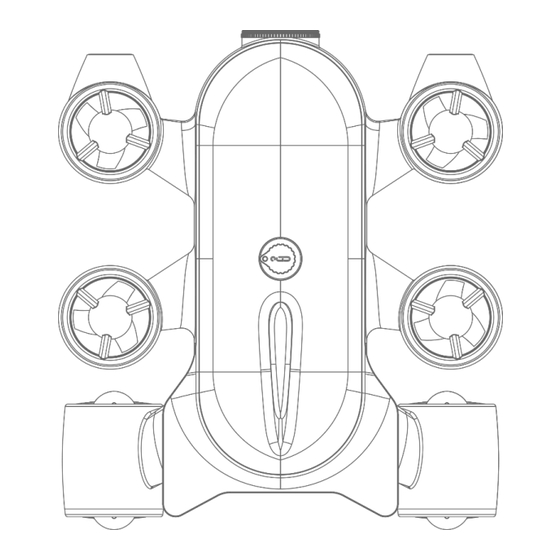

II. Product Overview： Titan is a consumer level underwater intelligent robot, equipped with A17/A7 dual- core CPU, supporting H265, 4K video encoding and decoding. Equipped with professional deep-sea starlight level 4k camera, front 3000lm led light, and built-in special image processing DSP, At the same time, the whole machine adopts industrial-grade waterproof scheme, with a maximum diving depth of 150m.The maximum speed is 2m/s, 2 high-power... -
Page 5: Connect Titan
2. App connect: when Titan gets to work(about 1 minute after connection), the LED light on ,Titan will flash twice every several seconds, it means the Titan is ready to connect to your phone, pad and PC devices, search the Wi-Fi hotspot named GENEINNO_XXXX, connect your device to it, the default passwords is 88886666, then get to the app control interface. -
Page 6: Bluetooth Controller
B：Quit Charge 1. Titan battery info will be seen at APP operation interface, battery signal light info will be seen at wireless relay; Please charge Titan when battery is low using standard charger and plug; charge Titan for 3 hours, wireless relay for 2 hours; signal lights on charger is red when it’s charging, turn into green when fully charged. -
Page 7: App Operation
2. Battery information consists of current, voltage, electric quantity, water pressure, internal humidity and internal temperature data. 3.The motor speed information can display the current motor speed in real time 4. Version information displays the current device firmware version information. Copyright © 2018 GENEINNO All Rights Reserved. -
Page 8: App Operation Interface
[12] ：Shot/Film mode ：Shot/Film [13] ：photos/Videos [14] ： Attitude control [15] ：LED [16] ：3D real-time attitude [17] ：Lock Down Depth [18] ：Motion Switch [19] ：Lock Down Direction [20] ：Restore 0 pitch angle [21] Copyright © 2018 GENEINNO All Rights Reserved. -
Page 9: App System Settings
The device enters the self-stabilizing mode after turn on, greatly optimizing the operation experience of the motion. The equipment will not automatically adjust its attitude after turn off. 6. Restore to factory setting. Copyright © 2018 GENEINNO All Rights Reserved. -
Page 10: App Photos And Video
Check the wireless relay battery indicator, if the battery is low. 2. Connected to the GENEINNO WIFI hotspot, but can't see the real-time picture, can't control: Check if Titan LED flashes, such as flashing 3, 4 or 5 times, the internal fault of the host, please contact after-sales customer service. -
Page 11: Appendixes
Depth Sensor +/- 0.2m Temp. Sensor +/-0.5℃ Battery Chemical Lithium 10.8V/9000mAh/97.2Wh（Titan） Capacity 10.8V/3200mAh/34.56Wh (Wireless Relay) Run time 4 hours(Titan)/6 hours(wireless relay) Charge time 3 hours(Titan)/2 hours(wireless relay) Platform IOS 9.0 and Android 5.0 Copyright © 2018 GENEINNO All Rights Reserved. -
Page 12: Product Warranty
4. For after-sale service, please visit our official website for instructions: Address: www.geneinno.com or you could email us directly to our after-sale support: Email: support@geneinno.com We welcome your valuable comments on our product quality and after-sale service. Copyright © 2018 GENEINNO All Rights Reserved. - Page 13 TITAN USER MANUAL Facebook YouTube Wechat Weibo 深圳市吉影科技有限公司 www.geneinno.com...
