- Page 1 Poseidon I User Manual V1.0 2017.7 Product Name:Underwater Robot Model Name:Poseidon I Manufacture:Shenzhen Geneinno Technology Co., Ltd.
-
Page 2: Table Of Contents
Catalog： Using tips Packing list Download address Product Profile Introduction Key features Drone Buoy Charger and remote controller How to Poseidon 1 6 How to charge Notice 7 Home Page PC home page PC system setting PC function button App home page App system setting Malfunction and Troubleshooting Common malfunction Troubleshooting Appendix Product parameters Contact us... -
Page 3: PackingList
一、USING TIPS ：PACKING LIST 、DOWNLOAD ADDRESS Packinglist： 1.Poseidon 1 User Manual 2.Drone 3.Buoy 4.Tether (30m/100m) 5.Charger 6.Remote Controller (Optional) 7.VR Google(Optional) DownloadAddress： 1. The user can obtain and view the documentation in the following ways to ensure the correct and safe use of the product http://www.geneinno.com/Poseidon1/user-manual Note : All technical parameter and operation details are subject to change without notice, please go to official website to get the latest user manual. 2. The user can download Geneinno App here: http://www.geneinno.com © 2015-2017 GENEINNO All Rights Reserved... -
Page 4: Introduction

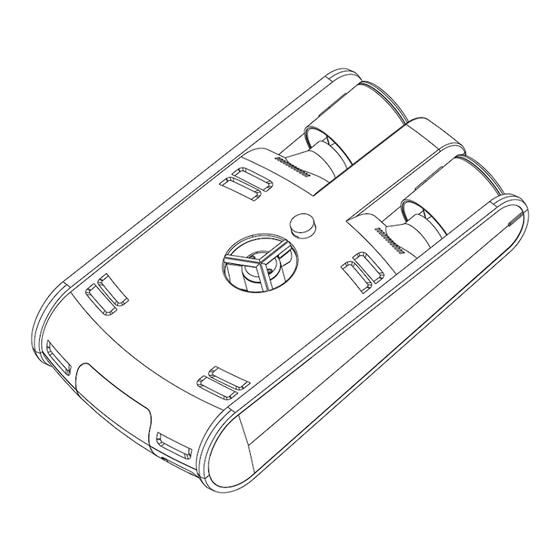

二、ProductProfile： Introduction： Poseidon 1 mainly includes a drone and a buoy and provides remote controller and VR goggle for selection。The control system is integrated in the drone，users can operate Poseidon 1 through app or browser to stream real time video. KeyFeatures： Poseidon 1 is integrated with full HD (1080P) camera which provides 5 million pixels for underwater photography and videography. It can dive as deep as 120m at fastest speed 2m/s underwater in saltwater or freshwater with LED lights. Users can operate Poseidon to stream real time video and capture the wonderful moments underwater. Drone： Head Body ① Camera ② LED lights ⑥ Buoyancy block ③ Thruster Body ⑤ Outlet ③ Thruster ④ Charging port Tail ⑤ Outlet ③ Thruster © 2015-2017 GENEINNO All Rights Reserved... -
Page 5: Buoy
Buoy： ⑤ Tether buckle ①Handle ① ②Power indicator ② ⑥Signal indicator ⑥ ③ Bobbin ④Signal/charging port ④ Charger： ① Plug ② AC adapter ③ Charging port RemoteController：App only（ANDRIOD和IOS） LT：Record X: Speed Y: LED LB：Phot Up/down/left/right A: Confirm B: Quit Direction control Selection key Down Full screen © 2015-2017 GENEINNO All Rights Reserved... - Page 6 HowtoUsePoseidon1： PC：Google Chrome Only ( Support flash ) Mobile：Android and IOS App ② ④ ① ③ Drone ⑤ Buoy Steps： ①Open the package, you can find drone、buoy、charger、user manual； ②Taking out the buoy, send out the cable with related length, smear the moderate sealing grease on the one waterproof plug, then insert to the plug of the drone, tighten to the designated location forcibly; Smear the moderate sealing grease on the other plug, tighten plug on the buoy, the drone and buoy will be working simultaneously when power supplying. ③After Poseidon 1 power on, the head LED light will twinkle 3 times from dark to luminous. The LED light will twinkle 4 times slow continuously and hint the user to connect if there is no operational terminal to be connected; Please re-insert and extract the buoy plug or contact the service person if the LED light twinkle 3 times slow continuously that means System connection failure. ④Take out your operated device (smartphone, PC, laptop etc), connect wifi on your operated device, you will find a network name of GENEINNO_XXX, click it and input the password: 88886666. Open Google browser or Geneinno App on your device (input 192.168.8.1) after connected, the Poseidon 1 information will be shown on the operated interface. ⑤ Take out the Poseidon 1, put it into related depth water area (up 1 meter), the Poseidon 1 can be used by operating. The buoy is waterproof, however we advise to put it on the land or boat and fixed in order to prevent Smurfs 1 drag the buoy into water and it is difficult to recycle. © 2015-2017 GENEINNO All Rights Reserved...
-
Page 7: Notice
Charging: The power info of the drone will be shown on the operated interface, the power indicator light info will be shown on the buoy; Please charge with standard chargers and plug when low power, the drone charging around 2 hours, the buoy charging around 3 hours. It’s needed to charge on the dry area, do not touch the water; There’s red light shown when charging and green light shown after fully charged. Charger Charger ① ② Drone Buoy ①Drone charge：open the charging port and get connected with the charger ②Buoy charge：open the charging port and get connected with the charger Notice: Poseidon 1 is designed by neutral buoyancy, we advise to use in the clean water area in order to avoid buoyancy balance when attaching the silt. Please control the running speed when using, in order to avoid crashing with the rocks and lens scratched or equipment broken in fast running; Plsease contact the service person if any query during using. Please operate to the short distance before take Smurfs 1 back, then pull the cable back to avoid block underwater. Please unscrew the buoy plug and unplug the cable after taken back, then save. © 2015-2017 GENEINNO All Rights Reserved... -
Page 8: Home Page
[14][15] [17] [12] [16] [11] [18] [19] [13] ：Battery life (Drone) ：Running time (Drone) ：Signal transport network delay between drone & PC ：Depth ：Temperature ：Drone compass angle ：Explore mode； ：Sports mode； ：Left thruster fault ：Middle thruster fault ：Right thruster fault [10] ：Rotate to left/right [11] ：Pitch angle [12] ：Depth-keeping [13] ：Drone info setting [14] ：Full-screen [15] ：Speed level [16] ：LED [17] ：Photo/video mode [18] [19] ：Take photo/video © 2015-2017 GENEINNO All Rights Reserved... -
Page 9: Pc SystemSetting
PCoperatinginterface： 2.PC： Functionkeyssheet Shortcut key Function Number key 1 Change to 1 gear Number key 2 Change to 2 gear Number key 3 Change to 3 gear Number key 4 Change to 4 gear Number key 5 Change to 5 gear Direction key front Go forward Direction key back Retreat Direction key left Turn left Direction key right Turn right Ctrl Diving Shift Come‐up I Light ON/OFF PC SystemSetting： System setting including info, setting mode. Photo, video and help. 1. Info © 2015-2017 GENEINNO All Rights Reserved... - Page 10 2.PC Setting PC settings by the photo setting, Record settings, Compass calibration, Water type and Motor pattern five settings. Figure: ：There are two kinds of models, respectively, single shot, continuous shooting : it can be set to record video time (1-30 minutes) : Start the compass correction There are two modes: seawater, fresh water (affecting the depth of the water sensor) : There are two modes: exploratory mode, movement mode Explore mode: Slow mode, suitable for underwater slow moving observation Movement mode: fast mode, suitable for fast moving scenes without obstructions © 2015-2017 GENEINNO All Rights Reserved...
-
Page 11: How To Charge
3. Photo: Save to download to the local; Delete; Select all . Figure： 4. Video: Save to download to the local; Delete; Select all. Figure: 5. Help: how to use Smurfs 1, how to browse photos and videos, then operate Poseidon 1, how to charge the drone and buoy, how to handle common faults and contact us. Figure: © 2015-2017 GENEINNO All Rights Reserved... - Page 12 [10] [13] [14] [15] [16] [19] [17] [18] : Battery life (Drone) ：Running time (Drone) ：Signal transport network delay between drone & PC ：Depth ：Temperature ：Drone compass angle ：Explore mode； ：Sports mode； ：Left thruster fault ：Middle thruster fault ：Right thruster fault [10] ：Depth-keeping [11] ：Full-screen [12] ：Speed level [13] ：LED [14] ：Photo/video mode [15] [16] ：Take photo/video [17] ：Control the host forward and backward turn left turn the disc. ：3D posture real-time display. [18] [19] ：Control the host to rise, sink.. © 2015-2017 GENEINNO All Rights Reserved...
-
Page 13: App SystemSetting
App SystemSetting： The system settings consists of information, settings, photos, videos, help, and more. Figure: Appsystemsettingsinterface App settings consist of usage scenes, manipulation mode, camera mode, and burn settings. 1.App information from the water temperature, internal temperature, battery power, battery voltage, battery current, storage space, internal humidity, running time, firmware version, propeller speed, nine-axis data. Figure: App info : Water temperature : Host internal temperature : Host battery power Storage space: Host internal storage space. Battery voltage: host battery voltage Battery current: host battery current Internal humidity: host internal humidity Run time: host run time Firmware version: Host firmware version Propeller: propeller parameters Nine axis data: host 3D gesture © 2015-2017 GENEINNO All Rights Reserved... - Page 14 App setting： 2. App settings consist of usage scenarios, manipulation modes, Photo modes, and burn settings. Figure： App setting Usage scenarios: There are two modes: seawater, fresh water (affecting the depth of the water sensor) Manipulation modes: There are two modes: the exploration mode, the movement mode Exploration mode: Slow mode, suitable for underwater slow moving observation. Movement mode: fast mode, suitable for fast moving scenes without obstructions. Photo modes: There are two modes, single shot, continuous shooting Burn settings: you can set the recording video time (1-30 minutes) 3. App photos: divided into remote ROV directory and local directory, long press to select the photo to save, delete and select all. © 2015-2017 GENEINNO All Rights Reserved...
- Page 15 App SystemSetting： 4.App video is divided into remote ROV directory and local directory. Click the directory, long press to select the photo appears delete key and select all keys. 5.App Help: consists of connections, handles, faults, and composition. About the page by checking updates, sharing to friends, official microcredit, official website and business cooperation. © 2015-2017 GENEINNO All Rights Reserved...
-
Page 16: Troubleshooting
App SystemSetting： 6. App more: by the official microblogging and official forums. Figure: App more Ⅳ.TheFailureandTroubleshootingMethods 1. Can not search for GENEINNO WIFI hotspots after cable connection Check if the cable is tightly connected Check buoy power indicator, whether the buoy is low 2. Connected to the GENEINNO WIFI hot spots, but can not see the real-time picture, can not control A, Check whether the host flashing lights, such as flashing 2,3 or 5 times, the host internal failure, please contact customer service B, Do not blink, please confirm whether the host power shortage, try to re-use after charging; charge or can not be used, please contact customer service 3.Motor lock fault Please first power off, manually remove the obstacles, and then power to re-boot. © 2015-2017 GENEINNO All Rights Reserved... -
Page 17: Appendix
Image Sensor 1/2.9 inches CMOS Video Resolution 1080p Video Format H264 FLV Photo Fomat JPEG FOV 120° Lumen 600lm×2 Micro SD Tether Strength 500N(50KG) Length 98.43ft/328.08ft (30m/100m) Diameter 4.5mm/0.18 inch Sensors 3 axis gyro & accelerometer Depth Sensor +/- 0.2m Temp. Sensor +/-0.5℃ Battery Chemical Lithium Capacity Drone:9000mAh/Buoy:2900mAh Run time 5 hours Charge time 2 hours Platform IOS and Andriod © 2015-2017 GENEINNO All Rights Reserved... - Page 18 FCC Caution. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
