For safety and easy faucet replacement, San-Ei recommends the use of
the following helpful tools:
SAFETY GLASSES
ADJUSTABLE WRENCH
Keep Instructions for Future Reference
Thank you for purchasing San-Ei's quality faucet.
With simple care and maintenance, it will provide you with many years of reliable
performance.
Please read instructions before installation.
TIPS FOR REMOVAL OF OLD FAUCET
CAUTION: Always turn water OFF before removing existing faucet or
disassembling the faucet.
Open the faucet handles to relieve water pressure and ensure that
complete water shut-off has been accomplished.
(Complies with ASME A112.18.1 and ASSE 1016)
T o o l s
PIPE WRENCH
BASIN WRENCH
A b o u t T h i s M a n u a l
- 1 -
INSTALLATION INSTRUCTIONS
K987D-L-BW
THERMOSTATIC HANDLE
Thermostatic Roman Tub
Faucet
PLIERS
PHILLIPS SCREWDRIVER
BW-0BH
CHANNEL LOCKS
FLASHLIGHT
Advertisement
Table of Contents
Related Manuals for San-Ei K987D-L-BW
Summary of Contents for San-Ei K987D-L-BW

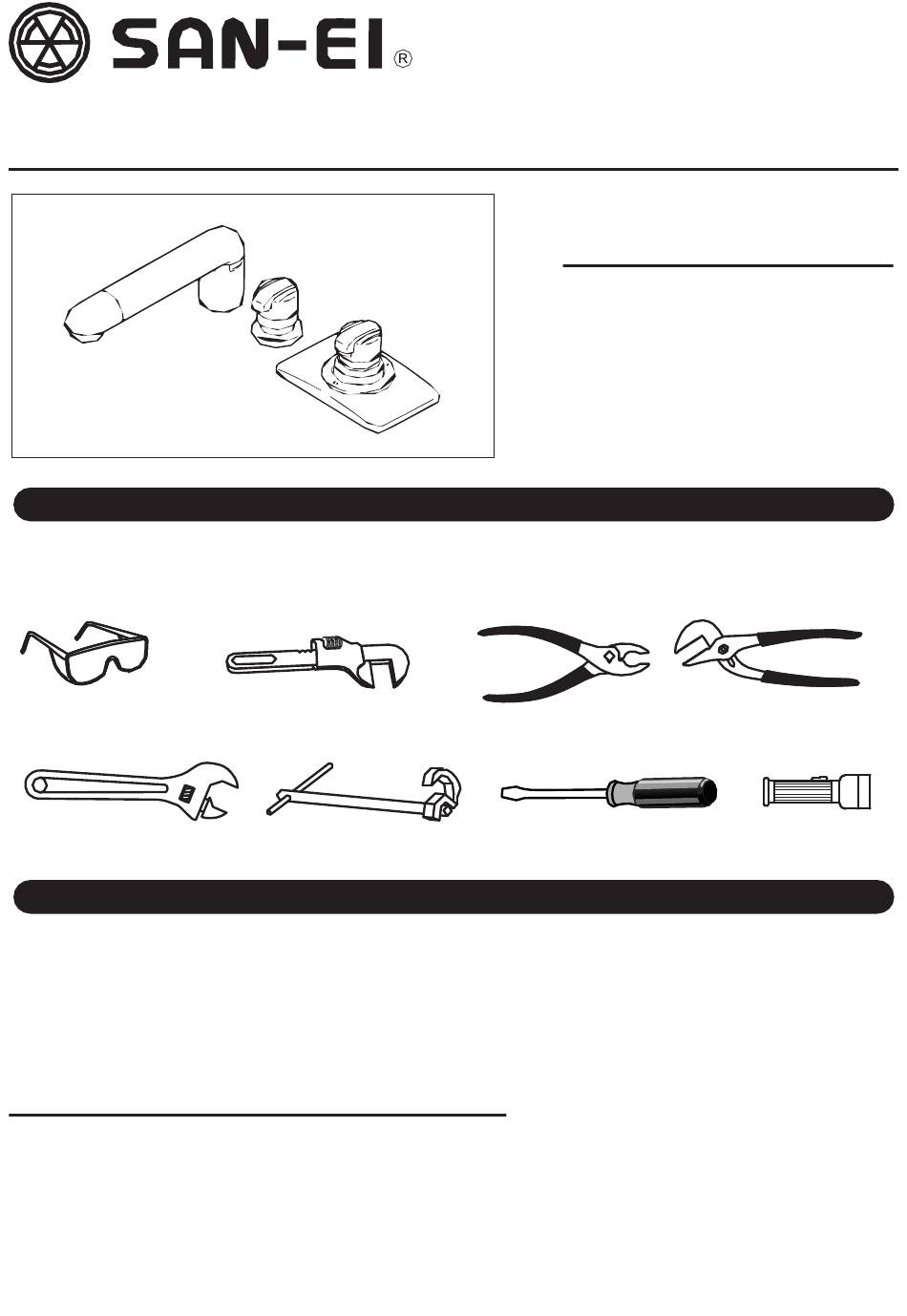

- Page 1 BW-0BH INSTALLATION INSTRUCTIONS K987D-L-BW THERMOSTATIC HANDLE Thermostatic Roman Tub Faucet T o o l s For safety and easy faucet replacement, San-Ei recommends the use of the following helpful tools: SAFETY GLASSES PIPE WRENCH PLIERS CHANNEL LOCKS ADJUSTABLE WRENCH BASIN WRENCH...
- Page 2 P A R T S L I S T The structure shown is an illustration. Please use this structure for better understanding. K987D-L-BW 27 24 General Description 1. Cap 2. Screw 3. Thermostatic Handle 4. Limit Stop Ring 5. Thermostatic Cartridge 6.
- Page 3 O P E R A T I O N Thermostatic Roman Tub Faucet K987D-L-BW Installation Dimension Please follow the installation dimensions carefully. Improper installation may result in the prevention of water flowing directly into the tub. Spout 9-2/5"(240mm) Rim Width Spout 9-2/5"...
- Page 4 Safety Lock Button Safety Lock Button Stop Flow I N S T A L L F A U C E T Cure Cap 1 , 2 SAN-EI Logo Upper Cure Cap Level Standard Level Bottom Level...
- Page 5 1. Installation (1) Connect water supply line with faucet body(10). (Tighten the union nut.) The SAN-EI logo on the faucet body(10) should face the inside of the bath tub. (If you install the opposite direction, faucet spout(25) can not be installed.) (2) The cure cap should be covered until the tiles are laid.
- Page 6 6. Assemble handles and faucet spout To protect water going to the cracked space of tiles, put the sealing material to the cracked space. Then, assemble handles(12) and spout(25), referring to the following indication. (Excess sealing should be removed perfectly.) Sealing T E M P E R A T U R E C A L I B R A T I O N Safety Lock...
- Page 7 F L U S H I N G I N S T R U C T I O N S IMPORTANT! : Pipe chips, sand, stones and other solid found in new and renovated plumbing can damage the cealing of the cartridge and cause leaks.
