For safety and easy faucet replacement, San-Ei recommends the use of
the following helpful tools:
SAFETY GLASSES
ADJUSTABLE WRENCH
Keep Instructions for Future Reference
Thank you for purchasing San-Ei's quality faucet.
With simple care and maintenance, it will provide you with many years of reliable
performance.
Please read instructions before installation.
TIPS FOR REMOVAL OF OLD FAUCET
CAUTION: Always turn water OFF before removing existing faucet or
disassembling the faucet.
Open the faucet handles to relieve water pressure and ensure that
complete water shut-off has been accomplished.
(Complies with ASME A112.18.1)
T o o l s
PIPE WRENCH
BASIN WRENCH
A b o u t T h i s M a n u a l
- 1 -
INSTALLATION INSTRUCTIONS
K8792J-BW
SINGLE HANDLE
Kitchen Faucet
PLIERS
PHILLIPS SCREWDRIVER
BW-0BH
CHANNEL LOCKS
FLASHLIGHT
Advertisement
Table of Contents
Related Manuals for San-Ei K8792J-BW
Summary of Contents for San-Ei K8792J-BW

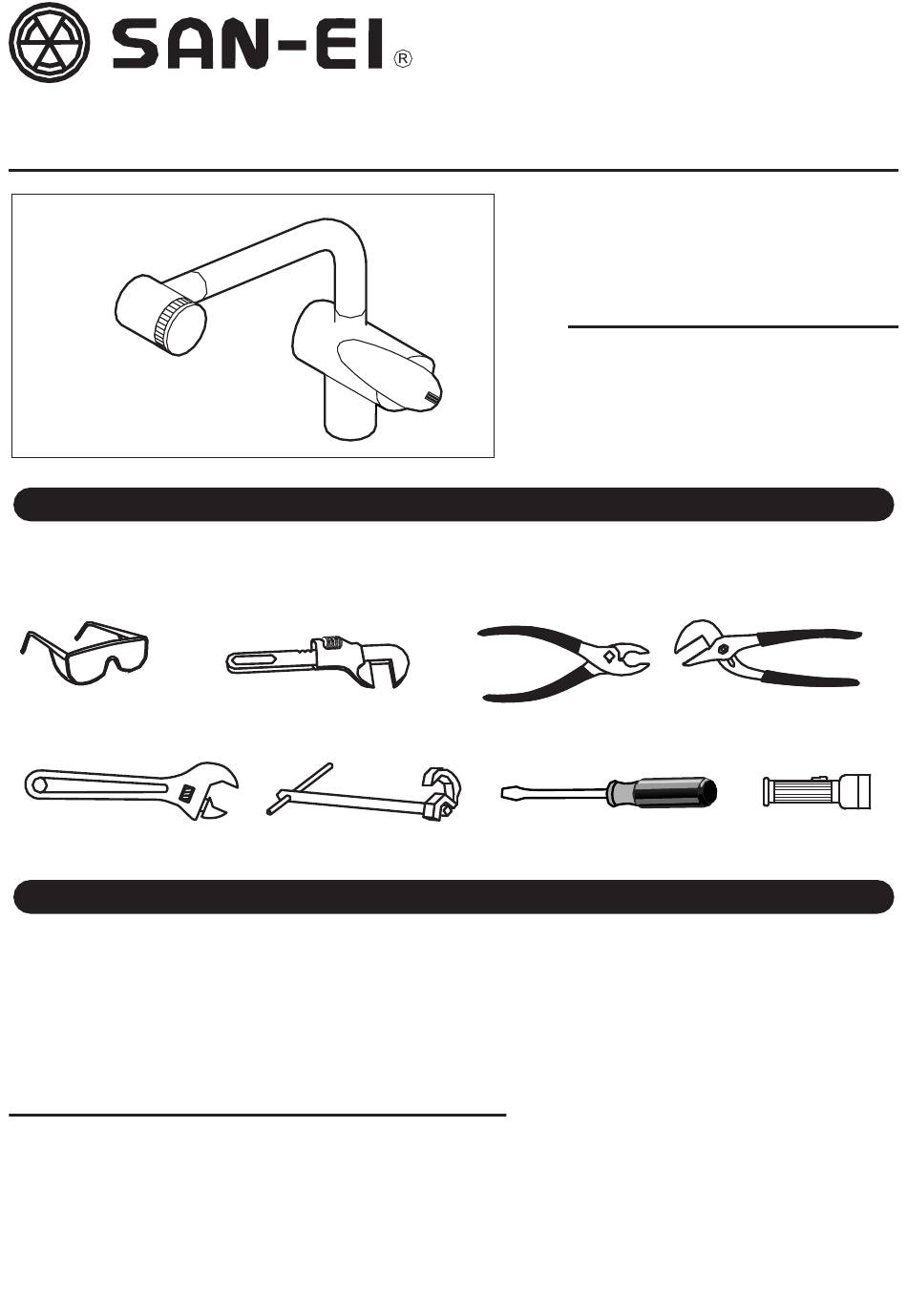

- Page 1 BW-0BH INSTALLATION INSTRUCTIONS K8792J-BW SINGLE HANDLE Kitchen Faucet T o o l s For safety and easy faucet replacement, San-Ei recommends the use of the following helpful tools: SAFETY GLASSES PIPE WRENCH PLIERS CHANNEL LOCKS ADJUSTABLE WRENCH BASIN WRENCH PHILLIPS SCREWDRIVER...
- Page 2 P A R T S L I S T The structure shown is an illustration. Please use this structure for better understanding. K8792J-BW General Description 1. Cap 2. Screw 3. Lever Cover 4. Screw 5. Lever 6. Cover 7. Cartridge Holder 8.
- Page 3 O P E R A T I O N Kitchen Faucet 9-4/5"(250mm) K8792J-BW K8792J-BW 1/2-14 NPSM Stop To hot water To cold water Flow Either ordinary flow or shower flow can be used. Shower Flow Ordinary Flow PRIOR TO INSTALLATION...
- Page 4 I N S T A L L F A U C E T 1-1/5"(30mm) Sink hole dia Between 1-2/5"(36mm) to 1-1/2"(38mm) To extend both cold water and hot water supply hoses. In case the supply hoses from the faucet cannot reach to the stop valves for connection, please use the fastener adaptor (male thread type) to extend the supply hose from the stop valves.
- Page 5 2. Install faucet Install the faucet body on the kitchen sink.The front side of the spout should face you.Then, make tightening the lock nut(13).(counterclockwise) Please don’t forget to put a seat packing(10), rubber packing(11), and metal washer(12) between unit body(9) and lock nut(13). 3.
- Page 6 C A R T R I D G E R E P L A C E M E N T Caution!: Always turn water OFF before removing the cartridge. Open the handle to relieve water pressure and ensure that water shut-off has been accomplished. 1.
- Page 7 F L U S H I N G I N S T R U C T I O N S IMPORTANT! : Pipe chips, sand, stones and other solid found in new and renovated plumbing can damage the cealing of the cartridge and cause leaks to avoid damage, DO NOT TURN ON SUPPLY VALVES until instructed below.
