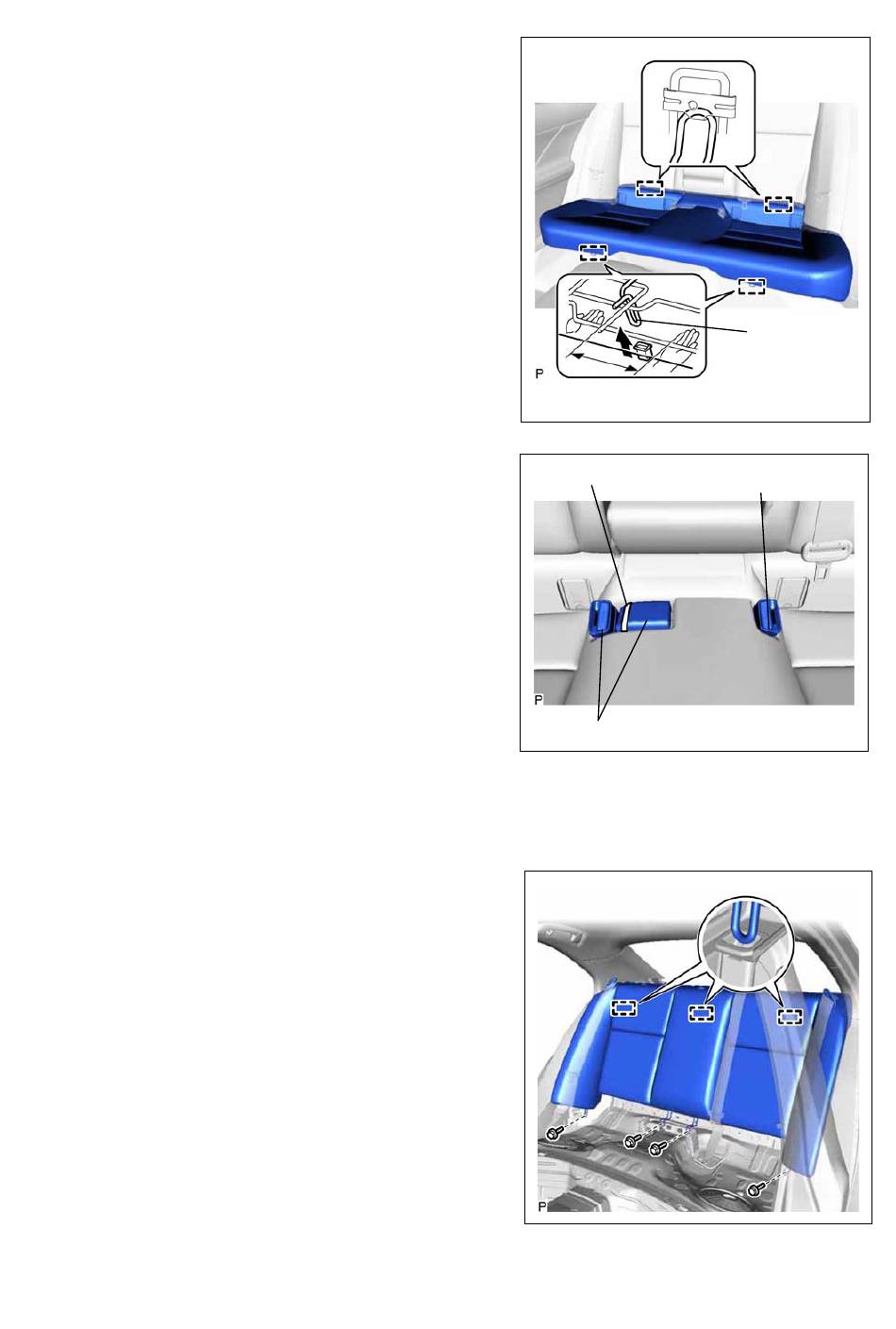

13. REMOVE REAR SEAT CUSHION
ASSEMBLY
(1) Lift up the front edge of the rear seat cushion
assembly as shown in the illustration and
disengage the 2 hooks on the front side of
the rear seat cushion frame from the rear seat
cushion lock hooks.
Notice:
Be sure to hold the part of the seat cushion
assembly directly next to the rear seat
cushion lock hooks when lifting it up.
Lifting a different part of the cushion may
deform the rear seat cushion frame.
(2) Disengage the 2 hooks on the rear side of the
rear seat cushion frame from the child
restraint seat anchor bracket hooks.
(3) Pass the rear seat inner belt assembly
through the rubber band of the rear seat
cushion assembly.
(4) Pass the 2 rear seat inner belts through the
rear seat cushion assembly and remove the
rear seat cushion assembly.
14. REMOVE REAR SEAT HEADREST
ASSEMBLY
(1) Remove the 2 rear seat headrest assemblies.
15. REMOVE REAR SEAT CENTER HEADREST ASSEMBLY
16. REMOVE REAR SEATBACK ASSEMBLY
(for Fixed Seat Type)
(1) Remove the 4 bolts.
(2) Disengage the 3 hooks.
a
a: 100 mm (3.94 in.) or less
Rubber Band
Rear Seat Inner Belt Assembly
24
Rear Seat
Cushion Frame
Hook
Rear No. 1 Seat Inner
Belt Assembly
