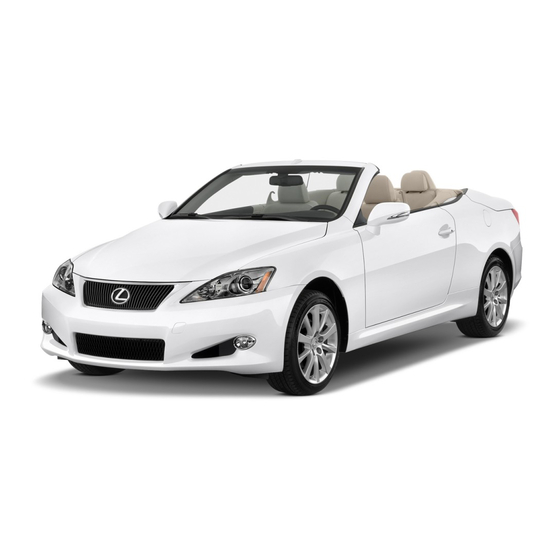

Lexus IS 350C 2014 Pds Manual

Hide thumbs Also See for IS 350C 2014:

Manual (624 pages)

Table Of Contents

Table of Contents

Quick Links

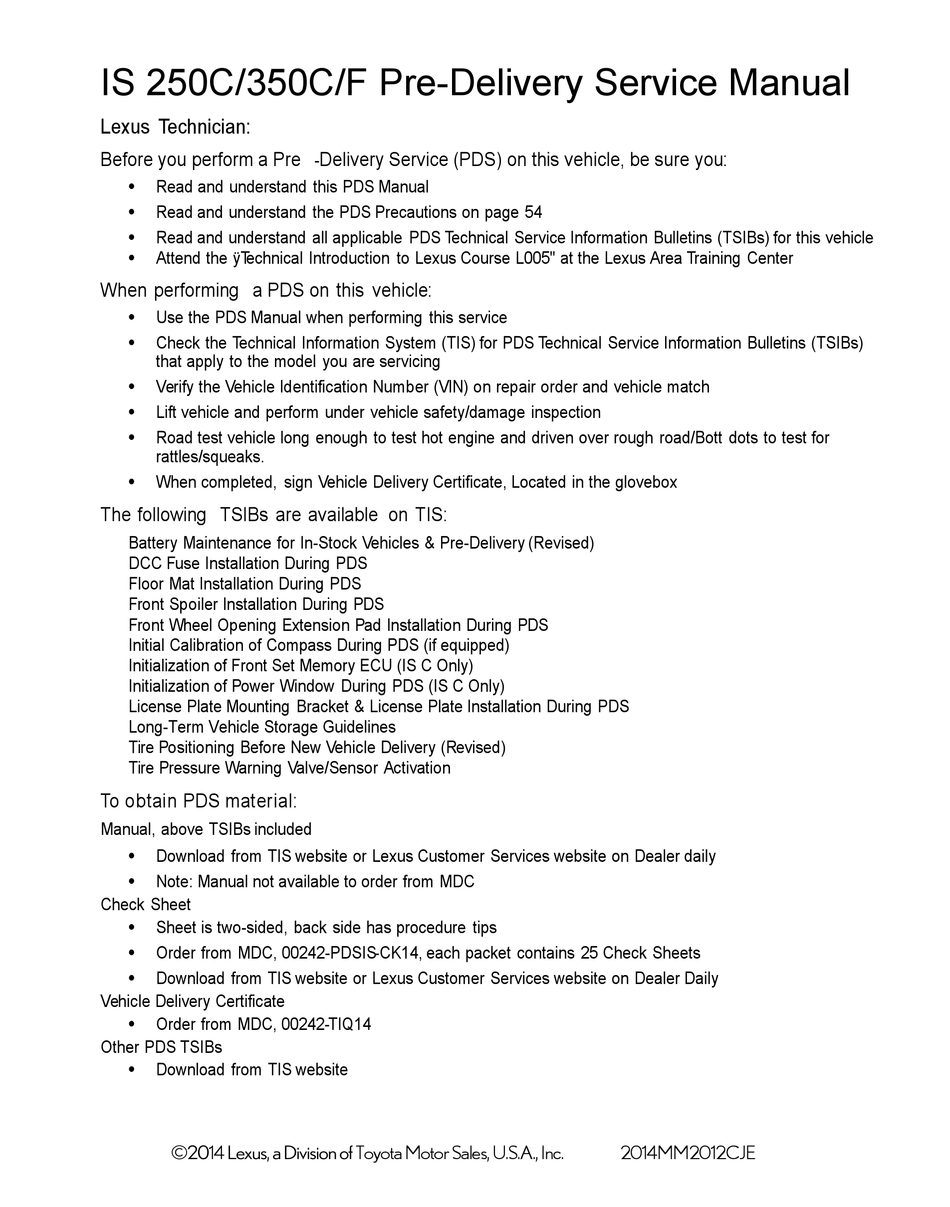

IS 250C/350C/F Pre-Delivery Service Manual

Lexus Technician:

Before you perform a Pre

Read and understand this PDS Manual

Read and understand the PDS Precautions on page 54

Read and understand all applicable PDS Technical Service Information Bulletins (TSIBs) for this vehicle

Attend the ÿT echnical Introduction to Lexus Course L005" at the Lexus Area Training Center

When performing a PDS on this vehicle:

Use the PDS Manual when performing this service

Check the Technical Information System (TIS) for PDS Technical Service Information Bulletins (TSIBs)

that apply to the model you are servicing

Verify the Vehicle Identification Number (VIN) on repair order and vehicle match

Lift vehicle and perform under vehicle safety/damage inspection

Road test vehicle long enough to test hot engine and driven over rough road/Bott dots to test for

rattles/squeaks.

When completed, sign Vehicle Delivery Certificate, Located in the glovebox

The following TSIBs are available on TIS:

Battery Maintenance for In-Stock Vehicles & Pre-Delivery (Revised)

DCC Fuse Installation During PDS

Floor Mat Installation During PDS

Front Spoiler Installation During PDS

Front Wheel Opening Extension Pad Installation During PDS

Initial Calibration of Compass During PDS (if equipped)

Initialization of Front Set Memory ECU (IS C Only)

Initialization of Power Window During PDS (IS C Only)

License Plate Mounting Bracket & License Plate Installation During PDS

Long-Term Vehicle Storage Guidelines

Tire Positioning Before New Vehicle Delivery (Revised)

Tire Pressure Warning Valve/Sensor Activation

To obtain PDS material:

Manual, above TSIBs included

Download from TIS website or Lexus Customer Services website on Dealer daily

Note: Manual not available to order from MDC

Check Sheet

Sheet is two-sided, back side has procedure tips

Order from MDC, 00242-PDSIS-CK14, each packet contains 25 Check Sheets

Download from TIS website or Lexus Customer Services website on Dealer Daily

Vehicle Delivery Certificate

Order from MDC, 00242-TIQ14

Other PDS TSIBs

Download from TIS website

Delivery Service (PDS) on this vehicle, be sure you:

2014MM2012CJE

Table of Contents

Need help?

Do you have a question about the IS 350C 2014 and is the answer not in the manual?

Questions and answers

Summary of Contents for Lexus IS 350C 2014

Page 1 Read and understand the PDS Precautions on page 54 Read and understand all applicable PDS Technical Service Information Bulletins (TSIBs) for this vehicle Attend the ÿT echnical Introduction to Lexus Course L005" at the Lexus Area Training Center When performing a PDS on this vehicle:...
Page 2 2014...
Page 3 ....On−board diagnostic system ..51 Door courtesy light ....Lexus PDS...
Page 4 Bott Dot Road Test Layout As part of the PDS road test, the vehicle must be driven over a rough road surface or over Bott Dots in order to check for squeeks and rattles. If a rough surface is not available for this road test, Bott Dots should be installed on the dealership property where vehicles can be safely driven 5 to 10 mph.
Page 5 ..........Lexus PDS...
Page 6 BEFORE STARTING PRE−DELIVERY SERVICE Lexus PDS...
Page 7 (make sure that the trim and floor carpet are not damp): a) Door glass weather strips b) Front cowl sides c) Around the front windshield ∗ d) Around the sliding roof area e) Around the rear window ∗ Optional equipment Lexus PDS...
Page 8: Dcc Fuse Installation
Refer to the provided Technical Service Information Bulletin. 4. SHIFT LOCK OVERRIDE BUTTON (ORB) COVER INSTALLATION ORB Cover Install the cover into the shift lock override button hole. Note: The cover is in a plastic envelope attached to the transmission shift lever. IS10005 Lexus PDS...
Page 9 INSPECTION OVERVIEW Lexus PDS...
Page 10 B10. Check power windows and door lock operation. B11. Check trunk and fuel lid opener operation. B12. Check turn signal, headlight, high beam and emergency flasher indicator lights, and horn operation. B13. Check wipers and washers operation. ∗ Optional equipment Lexus PDS...
Page 11 ∗ B14. Check headlight cleaner operation. B15. Check warning and indicator lights. B16. Check Multi-Information Display. B17. Check satellite switches operation. ∗ B18. Check Lexus Navigation System opera- tion. ∗ ∗ B19. Check seat heater and ventilator / heater operation.
Page 12 D09. Check engine operation (during / after warm-up). D10. Check electric cooling fans. D11. Inspect for fluid leaks. D12. Check headlight aim (if not correct). D13. Install front license plate bracket and license plate. Detail starts on page 52. Lexus PDS...
Page 13 E08. Check and tighten all chassis bolts of components that are replaced due to repairs. E09. Inspect exhaust system. E10. Install rubber body plugs. E11. Install front wheel opening extension pads. E12. Install front spoiler. Detail starts on page 58. IS20005 Lexus PDS...
Page 14 H01. Place the Quick Guide booklets in the glove box. Check that Owners Manual Portfolio contains the Owners Manuals and place in trunk. H02. Fill up the fuel tank. H03. Wash and clean the vehicle. Detail starts on page 71. ∗ Optional equipment Lexus PDS...
Page 15 III. INSPECTION DETAILS Lexus PDS...
Page 16: Paint Finish
Front and rear bumpers IS20006 b) Window moldings (front, side and rear) c) Lexus emblems (front and rear) d) Outside rear view mirrors e) Headlights, turn signal lights, side marker lights, fog lights and tail light lenses...
Page 17 IS3A003 ∗ c) Check first aid kit A03c Check that the first aid kit is properly installed inside the luggage or the rear console box. IS3A004 ∗ Optional equipment Lexus PDS...
Page 18 IS3A018 ing a mechanical or electrical key: Front interior light Rear interior lights Front foot well lighting (with the front interior lights OFF) Front door courtesy lighting ∗ Front scuff lighting ∗ Optional equipment Lexus PDS...
Page 19: Smartaccess
Check that the door unlocks. IS3A015 Note: The doors cannot be unlocked for 3 seconds after the doors are locked. d) Check that the trunk lid is unlocked by A05d pushing the trunk lid button. IS3A016 Lexus PDS...
Page 20 Push the button until the windows and sliding roof start to move. When the button is released, they stop opening. Note: When all the windows and the sliding roof start to open, one beep sounds. ∗ Optional equipment Lexus PDS...
Page 21: Emergency Flasher
Check that the security indicator light flashes when the engine switch is se- lected in the “OFF” mode. b) Check that the engine can be started using the keys. c) Check that the security indicator light turns off when starting the engine. IS3A013 Lexus PDS...
Page 22: Brake And Backup Lights
License plate lights h) Brake and high-mounted brake lights (when brake pedal is depressed) Tail Lights i) Back-up lights (when shift lever is Rear Turn Signal Lights placed in “R” with the engine switch in Buck-up Lights IS3B014 “IG-ON” mode) Lexus PDS...
Page 23 Security Indicator Trunk Lid Opener ..Light ..... ∗ Optional equipment Lexus PDS...
Page 24 Security Indicator Trunk Lid Opener ..Light ..... ∗ Optional equipment Lexus PDS...
Page 25 B. VEHICLE INTERIOR (Continued) Note: Inspect interior parts after removing the necessary factory in- terior protective covering. To prevent the battery from being discharged, the engine should be running when the electrical control switches are turned on. Lexus PDS...
Page 26 Pressed three times (from “OFF” mode): Power supply mode is in the “OFF” mode. c) In each mode, check that the power supply has changed properly. Note: If the engine switch illuminator blinks in amber, refer to the Repair Manu- Lexus PDS...
Page 27: Seat Belts
Check that the belts are not twisted. c) Check that the buckles lock securely and release smoothly. d) Check that the adjustable seat belt an- IS3B007 chors operate properly and that they securely lock in position. Lexus PDS...
Page 28: Seat Adjustments
Seat back reclining adjustment Seat vertical adjustment Seat cushion (front) angle adjust- Seat Cushion ment Angle Adjustment Head restraints adjustment Seat Back Reclining Adjustment Seat Vertical Adjustment IS3B010 b) Rear Seats B05b Head restraints adjustment Center armrest IS3B011 Lexus PDS...
Page 29 “OFF” mode, the steering column moves forward away from the driver and also tilts up. When the engine switch is se- lected in the “ACC” or “IG-ON” mode, the steering column re- IS3B014 turns to the previously set posi- tion. Lexus PDS...
Page 30: Outside Rearview Mirrors
’s side. The shift lever is moved out of the “P” position. Note: Check that the outer foot lights illuminate for 15 seconds and they will go off. ∗ Optional equipment Lexus PDS...
Page 31: Front Seat Position Memory
“1”, “2” or “3” until the beep sounds. c) Check all buttons (1, 2 and 3) to make sure that all memorized settings oper- ate correctly. IS3B018 B09. POWER WINDOW INITIALIZATION Refer to the provided Technical Service Information Bulletin. ∗ Optional equipment Lexus PDS...
Page 32: Power Windows
With the doors closed, check that the power windows can be fully operated after the engine switch has been se- Down lected in the “ACC” or “OFF” mode. Note: This feature is canceled after 45 seconds or if either front door is opened. IS3B021 Lexus PDS...
Page 33: Horn
30 seconds after any of the doors is opened and closed with the engine Headlight Flasher switch off. IS3B024 c) Check operation of the automatic light control function. d) Check that the high beam indicator light illuminates when the high beams are on. Lexus PDS...
Page 34: Wipers & Washers
With the wiper switch lever in the auto position, splash the water on the wind- shield around the windshield sensor and check that the wipers operate. Note: Add washer fluid up to the proper level. ∗ Optional equipment Lexus PDS...
Page 35: Headlight Cleaner
PCS (Pre−Collision System) warn- ∗ ing light Electric power steering system warning light Brake system warning light Charging system warning light Malfunction indicator lamp Refer to “Warning Lights, Buzzers and Warning Messages” on page 32 for de- tails. ∗ Optional equipment Lexus PDS...
Page 36: Warning Message
This light comes on when the engine switch is selected in Low Tire Pressure “IG−ON” mode. If the tire pressure warning system works Warning Light properly, and tire pressure is appropriate, the light goes off after a few second. Lexus PDS...
Page 37 Warning Lights, Buzzers and Warning Messages Light/Buzzer Function Open Door Warning This light remains on until all the doors are completely Light closed. Low Fuel Level Warning This light comes on when the fuel tank becomes nearly Light empty. Lexus PDS...
Page 38 If a malfunction of the dynamic laser cruise control is Cruise Control Warning detected, the message appears with the master warning light, Message warning tone and “CRUISE” indicator light when the dynamic laser cruise control is on. Lexus PDS...
Page 39 5000 miles, this message appears with the master warning Engine Oil Replacement light and a warning tone sounds when the engine switch is Reminder Message selected in the “IG−ON” mode. The message stays on with the engine switch is selected in the “IG−ON” mode. Lexus PDS...
Page 40 “P”, the engine switch in any mode other than “OFF” and the key outside of the detection area, the message appears with the master warning light flashes, an interior buzzer sounds once and an exterior buzzer sounds three times. Lexus PDS...
Page 41: Warning Message
If the steering lock is not unlocked due to the load applied to the steering wheel when pushing the engine switch, the Steering Lock System master warning light comes on, the engine switch indicator Warning Message light blinks green, and interior buzzer sounds once and the above message. Lexus PDS...
Page 42: Multi−Information Display
Note: Refer to the Multi-Information Dis- play section in the vehicle’s Owner ’s Manual for a comprehensive list of the system’s functions and displays. Lexus PDS...
Page 43: Satellite Switches
Vehicle speed indicator ON/OFF and speed setting Tacho indicator ON/OFF and engine speed (rpm) setting Note: Refer to the satellite switches section in the vehicle’s Owner’s Manual for a com- prehensive list of the system’s functions and displays. ∗ Optional equipment Lexus PDS...
Page 44: Navigation System
“CAUTION” screen only once after the engine switch is selected in the “ACC” or “IG-ON” mode. c ) XM NavWeather This service is active on all new Lexus vehicles with navigation systems. To confirm activation, press the "MENU" button, select "Info.Phone" then select "XM NavWeather".
Page 45: Seat Heater / Ventilator
Turn the switch again and the light goes off after testing. Seat Heater IS3B115 Indicator Light Seat Ventilator / Heater (Ventilator Side) Indicator Light Seat Ventilator / Heater (Heater Side) IS3B116 ∗ Optional equipment Lexus PDS...
Page 46: Air Conditioning
’s side cen- ter vent. k) Press the “DUAL” button (indicator off) and check that cool air flows out of both center vents. l) Check that cool air flows out of the side vents and the rear console box vent. Lexus PDS...
Page 47: Audio System
“PWR·VOL” knob on and check for proper operation of both AM and FM stations. b) Pre-set all the station selector buttons to local broadcast frequencies. c) CD player should be inspected for proper operation prior to delivery. IS3B037 Without Navigation System IS3B117 Lexus PDS...
Page 48 “R” or “N” position. When checking the front side, put the shift lever to the “N” position. When checking the rear side, put the shift lever to the “R” position. IS3B039 ∗ ∗ Optional equipment Optional equipment Lexus PDS...
Page 49 Full screen display Vehicles with rear view monitor ∗ system At the same time, mechanic A should check that the interval of the buzzer sound shortens and ultimately the buzzer sounds continuously. IS3B104 ∗ Optional equipment Lexus PDS...
Page 50: Cigarette Lighter
With the engine switch in the “ACC” or “IG-ON” mode, check the power outlet in the rear console box using an elec- trical accessory designed for this use. Power outlet IS3B102 Lexus PDS...
Page 51: Cupholders
Rear Console Box Glove Compartment Overhead Console Box Door Pocket IS3B111 B27. CUP HOLDERS Front Check that the cup holders (front and rear) operate smoothly and that they do not make any noise during operation. Front Rear IS3B112 Lexus PDS...
Page 52: Ashtray Lights
“ON”) j) Ashtray lights (illuminates only when engine switch is in “ACC” or “IG−ON” mode) k) Console box light (illuminates only when engine switch is in “ACC” or “IG−ON” mode) ∗ Optional equipment Lexus PDS...
Page 53 “ACC” or “OFF” mode. B29a−3/4 Note: Even if the engine switch is “OFF” mode, the sliding roof can be operated until one either front door is opened (or for about 45 seconds) IS3B055 ∗ Optional equipment Lexus PDS...
Page 54: Inside Rearview Mirror
TIS for trouble - shooting procedures. SOS Button Light indicator NOTE: Vehicles may arrive with hanger requesting inspection to Safety Connect system. If system is working properly and green light is illuminated, disregard hanger. ∗ Optional equipment Lexus PDS...
Page 55 Then check that the sunshade raises when the shift lever is shifted to other than “R” po- sition, and the vehicle travels at 9 mph (15 km/h) or more. IS3B058 IS3B113 IS3B060 Lexus PDS...
Page 56: Jack & Jack Handle
Check for proper operation of the manu- al fuel lid release lever located in the luggage compartment. C04. TRIM APPEARANCE AND TRUNK MAT FIT Inspect the luggage trim and luggage mat for proper installation and appear- IS3C003 ance. Lexus PDS...
Page 57 Tank ..... Electric Cooling Fans ..Note: Install protective fender covers prior to beginning the under hood inspection. Lexus PDS...
Page 58: Brake Fluid Level
The coolant level is suitable if the level is between the “FULL” and “LOW” lines on the tank. CAUTION: To prevent burning yourself, do not re- move the radiator cap when the engine IS3D022 is hot. Lexus PDS...
Page 59: Battery
O.K. case for leakage. Note: Maintenance-free PANASONIC batteries can be replenished with dis- tilled water only. Add Electrolyte IS3D007 b) Check that the battery terminals are D06c Terminals properly connected and that the clamp is firmly installed. IS3D009 Lexus PDS...
Page 60: Electric Cooling Fans
Look for fuel, oil, coolant or other fuel leaks around the following components: a) Engine (cylinder head and around the head cover) b) Transmission c) Brake lines and hoses d) Radiator and hoses e) Fuel lines and hoses Lexus PDS...
Page 61: Front License Plate Bracket
D. UNDER THE HOOD (Continued) D12. HEADLIGHT AIM If headlight aim is not correct, see Repair Manual for headlight aim procedure. D13. FRONT LICENSE PLATE BRACKET AND LICENSE PLATE Refer to the provided Technical Service Information Bulletin. Lexus PDS...
Page 62: Lug Nut Torque
Using a torque wrench, tighten all wheel lug nuts to the specified torque. Torque specifications: 103 N m (1050 kgf cm, 76 ft lbf) IS3E001 E02. ACTIVATING PROCEDURE OF TIRE PRESSURE SENSING TRANSMITTER Refer to the provided Technical Service Information Bulletin. Lexus PDS...
Page 63: Tires
Visually inspect all tires for damage and / or defects. If the wheels are replaced or refinished before vehicle delivery. Refer to the provided Technical Service Information Bulletin. E04. WHEEL CENTER CAPS Install the wheel center caps on the wheels. IS3E008 Lexus PDS...
Page 64: Transaxle Fluid
Visually and by hand check the follow- ing components for installation, clamp- ing, connection and damage: Brake lines, hoses and protectors Fuel lines, hoses and protectors Steering linkage and dust boots IS3E010 Drive shaft boots Parking brake cable Lexus PDS...
Page 65: Exhaust System
Propeller shaft d) Front / rear cross member e) Front / rear brakes f) Drive shaft IS3E011 E09. EXHAUST SYSTEM Visually check for leaks and damage to the exhaust pipes and mufflers. Ensure they are properly installed. IS3E024 Lexus PDS...
Page 66: Body Plugs
Note: Plugs are shipped with the vehicle and put in the glove compartment. IS3E013 E11. FRONT WHEEL OPENING EXTENSION PAD INSTALLATION Refer to the provided Technical Service Information Bulletin. E12. FRONT SPOILER Refer to the provided Technical Service Information Bulletin. Lexus PDS...
Page 67: Engine Operation
A comprehensive road test is vital to ensure that a perfect automobile is delivered to each Lexus customer. We recommend that you map out a specific road test course that includes a variety of road conditions including stop and go, highway speed and rough road surfaces.
Page 68: Transmission
Check the brake pedal free play. F04b Push in the pedal by hand and check that the pedal free play is within the Pedal Free Play specification. Pedal free play: 1 - 2 mm (0.04 - 0.08 in.) IS3F004 Lexus PDS...
Page 69 Check that the shift lever cannot be moved from the “N” without depress- ing the clutch pedal. c) Check for smooth shift operation over a broad position of driving conditions. Clutch Pedal IS3F007 Lexus PDS...
Page 70: Trac
“ETCS SNOW” indicator light illuminates. IS3F014 c) Traction Control System (TRAC) F06c Turn off the traction control system by pushing the “TRAC OFF” switch and check that the “TRAC OFF” indicator light illuminates. IS3F009 Lexus PDS...
Page 71: Cruise Control
Check that the vehicle to vehicle dis- tance setting is changed from “Long” to “Middle” to “Short” and then back to IS3F012 “Long” by pulling the distance switch on the steering wheel. Note: Always keep the sensor and grille cover clean. ∗ Optional equipment Lexus PDS...
Page 72: Compass
F10. SQUEAKS AND RATTLES Check for squeaks and rattles in the fol- lowing: a) Instrument panel b) Doors c) Trim d) Body e) Others ∗ F11. CALIBRATION OF COMPASS Refer to the provided Technical Service Information Bulletin. ∗ Optional equipment Lexus PDS...
Page 73: Checksheet
− ECU HEALTH CHECK PRINTOUT See back of PDS Check Sheet for printout examples. 2. COMPLETE AND SIGN THE PDS CHECK SHEET, AND FILE WITH THE PDS REPAIR ORDER 3. SUBMIT PRODUCT TECHNICAL RE- PORTS REGARDING QUALITY ISSUES AS APPLICABLE Lexus PDS...
Page 74: Delivery Certificate
Peel VIN number sticker off sticker sheet and apply to ”Vehicle Identification Number” line at inside top of certificate. The person performing PDS is required to sign their name over ”Dealership Service Representative” line and return certificate and VIN sticker sheet to glovebox. Lexus PDS...
Page 75: Fuel
Vacuum carpet and seats. Note: It is recommended that you wash the vehicle by hand. If mechanical brushes are used in an “automatic car wash”, the brushes may scratch the paint surface. Lexus PDS...
