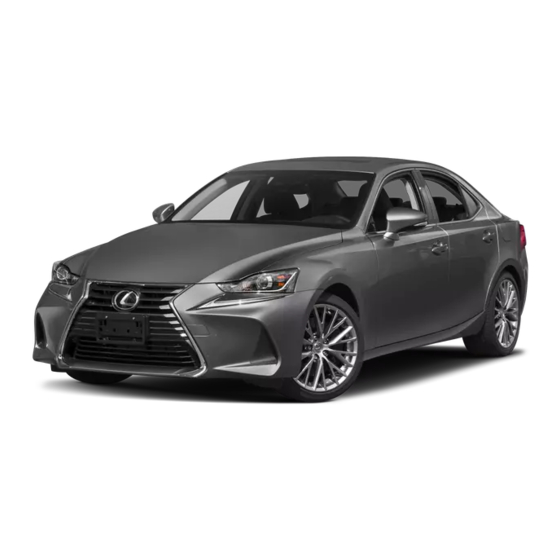

2017 IS200t/IS300/IS350 Pre-Delivery Service Manual
Lexus Technician:
Before you perform Pre-Delivery Service (PDS) on this vehicle, be sure you:
• Read and understand this PDS Manual
• Read and understand all applicable PDS Technical Service Information Bulletins (TSIBs) for this vehicle
• Read and understand the PDS Precautions in the TSIBs and on pages 4 and 45.
• Attend the "Technical Introduction to Lexus Course L005" at the Lexus Area Office
When performing PDS on this vehicle:
• Use the PDS Manual when performing this service
• Check Technical Information System (TIS) for updated PDS TSIBs and applicable Repair Manual information
• Verify that the Vehicle Identification Number (VIN) on repair order and vehicle match
• Lift vehicle and perform under-vehicle safety/damage inspection
• Road test vehicle long enough to test hot engine; drive over rough road (Bott dots) to test for rattles/squeaks
• When PDS is completed, complete Check Sheet, attach printouts, and file with PDS repair order
The following TSIBs are available on TIS:
Battery Maintenance for In-Stock Vehicles & Pre-Delivery
DCC Fuse Installation During PDS
Enform Apps & Data Services Download & Installation Process
Floor Mat Installation During PDS
Front License Plate & Mounting Bracket Installation
Front Wheel Opening Extension Pad Installation During PDS
Initial Calibration of Compass During PDS
Long-Term Vehicle Storage Guidelines
Tire Positioning Before New Vehicle Delivery
Tire Pressure Warning System Initialization
Wheel Film for Brake Rotor Rust Prevention
XM Activation Confirmation During PDS
To obtain PDS material:
Manual
• Download from TIS
Check Sheet
• Download and print from TIS
Other PDS TSIBs
• Download from TIS
Contact your District Service & Parts Manager if you have any questions.
© 2016 Lexus, a Division of Toyota Motor Sales USA, Inc.
TPWS Operation Verification
1. Connect Techstream to DLC3.
2. Adjust all tires (except the spare
tire) to the standard tire inflation
pressure as indicated on the tire and
loading information label on vehicle.
NOTE:
• To adjust tire pressure correctly when
outside temperature is significantly
colder or warmer than shop
temperature, perform a Health
Check using Techstream and select
the "Compensation Tire Pressure"
checkbox. Compensation pressures
will be displayed on the Health Check
results screen.
• Adjust the tire pressure when the tires
are cold.
MM/JBS 201608
Advertisement
Related Manuals for Lexus IS300 2017
Summarization of Contents
INSPECTION DETAILS - A. ENGINE COMPARTMENT
ENGINE HOOD RELEASE LEVER
Check the engine hood release lever operation for proper latch function.
DCC FUSE INSTALLATION
Refer to TSIB for DCC fuse installation.
ENGINE OIL LEVEL (ENGINE NOT RUNNING)
Check engine oil level using the dipstick; ensure it is between the marks.
BRAKE FLUID LEVEL
Visually check brake fluid level in reservoir; replenish if low.
BATTERY TERMINAL TIGHTNESS AND CHARGE
Check battery terminal tightness, connection, and charge voltage.
ENGINE COOLANT LEVEL
Check engine coolant level in the reservoir when the engine is cool.
INTERCOOLER COOLANT RESERVOIR
Check intercooler coolant level between 'F' and 'L' lines when engine is cold.
WASHER FLUID LEVEL
Check washer fluid level in the tank; ensure it is filled within 2 inches of the cap.
WIRING AND HOSES
Check hoses, connectors, and clamps for tightness and condition.
INSPECTION DETAILS - B. LOCKS AND LIGHTS
WIRELESS REMOTE CONTROL
Inspect the five functions of the wireless remote control system.
SMART ACCESS SYSTEM
Test the smart access system for proper locking and unlocking operations.
THEFT DETERRENT SYSTEM
Verify the theft deterrent system operates correctly when doors are locked.
IMMOBILIZER SYSTEM
Check immobilizer system indicator light function with engine off and on.
DOOR LOCK SYSTEM AND ILLUMINATED ENTRY
Check door lock operation, manual key control, and illuminated entry.
POWER SUPPLY CHANGEOVER AND START/STOP
Check proper activation of the ENGINE switch and power supply modes.
EXTERIOR LIGHTS
Walk around and check all exterior lights for proper illumination.
TURN SIGNAL, HEADLIGHT, HIGH BEAM LIGHTS
Check operation of turn signals, headlights, high beams, and flashers.
INSPECTION DETAILS - C. LEFT FRONT
INTERIOR PARTS CONDITION
Visually inspect interior parts for dirt, damage, and proper fit and alignment.
PRE-COLLISION SYSTEM*
Check that the Pre-Collision System (PCS) feature is turned on in the MID.
SYSTEMS CHECK & ENFORM DOWNLOAD
Check systems with Techstream, initialize TPWS, verify TPWS operation.
SEAT BELT OPERATION
Check seat belt operation for extension, retraction, and latching.
DRIVING POSITION MEMORY SYSTEM*
Test driver's seat and mirror memory settings, and recall function.
SEAT ADJUSTMENT
Check power seat adjustment for position, angle, and lumbar support.
HEAD RESTRAINT ADJUSTMENT
Check head restraint adjustment mechanism for up, down, and angle movement.
POWER WINDOWS AND DOOR LOCKS
Check power window operation and door lock switch functionality.
OUTSIDE REARVIEW MIRRORS
Check mirror adjustment, defogger operation, and smooth mirror movement.
WINDSHIELD WIPER DE-ICER*
Check windshield wiper de-icer operation with the ENGINE switch in ACCESSORY or IG-ON mode.
INTERIOR LIGHTS
Check operation of various interior lights including footwell and vanity lights.
INSTRUMENT PANEL CONTROLS
Check odometer/trip meter and instrument panel light controls.
BLIND SPOT MONITOR*
Check Blind Spot Monitor switch indicator illumination.
TRUNK OPENER BUTTON
Check operation of the trunk opener button.
WINDSHIELD WIPERS AND WASHER
Check wiper and washer operation, speed cycles, and auto mode.
WARNING LIGHTS AND INDICATOR LIGHTS
Check warning and indicator lights illuminate correctly on the instrument panel.
WARNING LIGHTS AND BUZZER DETAILS
Understand functions of various warning lights and buzzers for system malfunctions.
MULTI-INFORMATION DISPLAY
Check MID for driving conditions and warning messages; verify opening condition indicator.
TILT AND TELESCOPIC STEERING WHEEL
Check steering wheel adjustment operation for power and manual settings.
AIR CONDITIONING AND HEATER
Check HVAC system operation, modes, temperatures, and fan speeds.
AUDIO SYSTEM AND CLOCK
Check audio system, presets, and set the clock time.
STEERING WHEEL AUDIO SWITCHES
Check steering wheel audio controls for volume, mode, and media selection.
INTUITIVE PARKING ASSIST*
Test parking assist system with cones, check indicator and buzzer sounds.
INSPECTION DETAILS - D. LEFT REAR
CHILD PROTECTOR LOCK
Check that the rear door child protector lock functions correctly.
POWER WINDOW AND SEAT BELT
Check rear power window operation and seat belt function.
REAR SEAT HEAD RESTRAINTS
Check that the rear seat head restraints operate smoothly.
FOLDING REAR SEAT BACKS*
Check that the rear seat backs can be folded down.
ARMREST AND REAR CUP HOLDERS*
Check armrest and rear cup holders for smooth operation.
INSPECTION DETAILS - E. TRUNK
FUEL DOOR AND TRUNK OPERATION
Check fuel door and trunk unlock operation, security, and compartment light.
TOOLS, JACK, AND SPARE TIRE
Verify tools, jack, and spare tire are present and correctly installed.
TRIM APPEARANCE AND LUGGAGE CARPET FIT
Inspect luggage trim and carpet for proper installation and appearance.
LUGGAGE SECURITY SYSTEM*
Check that the luggage security system operates properly.
INSPECTION DETAILS - F. RIGHT REAR
POWER WINDOW AND SEAT BELT
Check rear power window operation and seat belt function.
CHILD PROTECTOR LOCK
Check that the rear door child protector lock functions correctly.
INSPECTION DETAILS - G. RIGHT FRONT
POWER WINDOWS AND DOOR LOCKS
Check power window and door lock switch functionality.
DRIVING POSITION MEMORY SYSTEM*
Test driver's seat and mirror memory settings, and recall function.
SEAT BELT OPERATION
Check seat belt operation for extension, retraction, and latching.
SUN VISOR AND GLOVE BOX
Check sun visor, vanity mirror, and glove box operation.
LUGGAGE SECURITY SYSTEM
Check that the trunk opener disable switch operates properly.
INSPECTION DETAILS - H. FRONT BUMPER
LICENSE PLATE INSTALLATION
Refer to TSIB for front license plate and bracket installation.
INSPECTION DETAILS - I. UNDER VEHICLE (SAFETY/DAMAGE)
WHEEL LUG NUT TORQUE
Ensure wheel lug nuts are torqued to specifications if wheels were removed.
WHEEL CENTER CAPS
Install wheel center caps on the wheels.
CHASSIS INSPECTION FOR LEAKAGE OR DAMAGE
Check chassis components for proper installation, connection, and fluid leaks.
FLUID LEAKS AND EXHAUST SYSTEM
Check for fluid leaks in various systems and inspect exhaust system.
INSPECTION DETAILS - J. ROAD TEST
BOTT DOT ROAD TEST LAYOUT
Drive vehicle over rough surface or Bott Dots to check for squeaks and rattles.
FILL UP FUEL TANK
Fill the fuel tank with unleaded fuel of 91 octane or higher.
ENGINE TRANSMISSION OPERATION
Check engine start, shift lever operation, and transmission shifts.
CRUISE CONTROL AND DRIVING MODES
Check cruise control, radar cruise, driving modes, and TRAC/VSC systems.
ABNORMAL NOISE OR VIBRATION
Check for vibration or abnormal noise while the vehicle is in motion.
COMPLETION
PDS CHECK SHEET AND REPORT FILING
Attach printouts to PDS check sheet and file with repair order.
