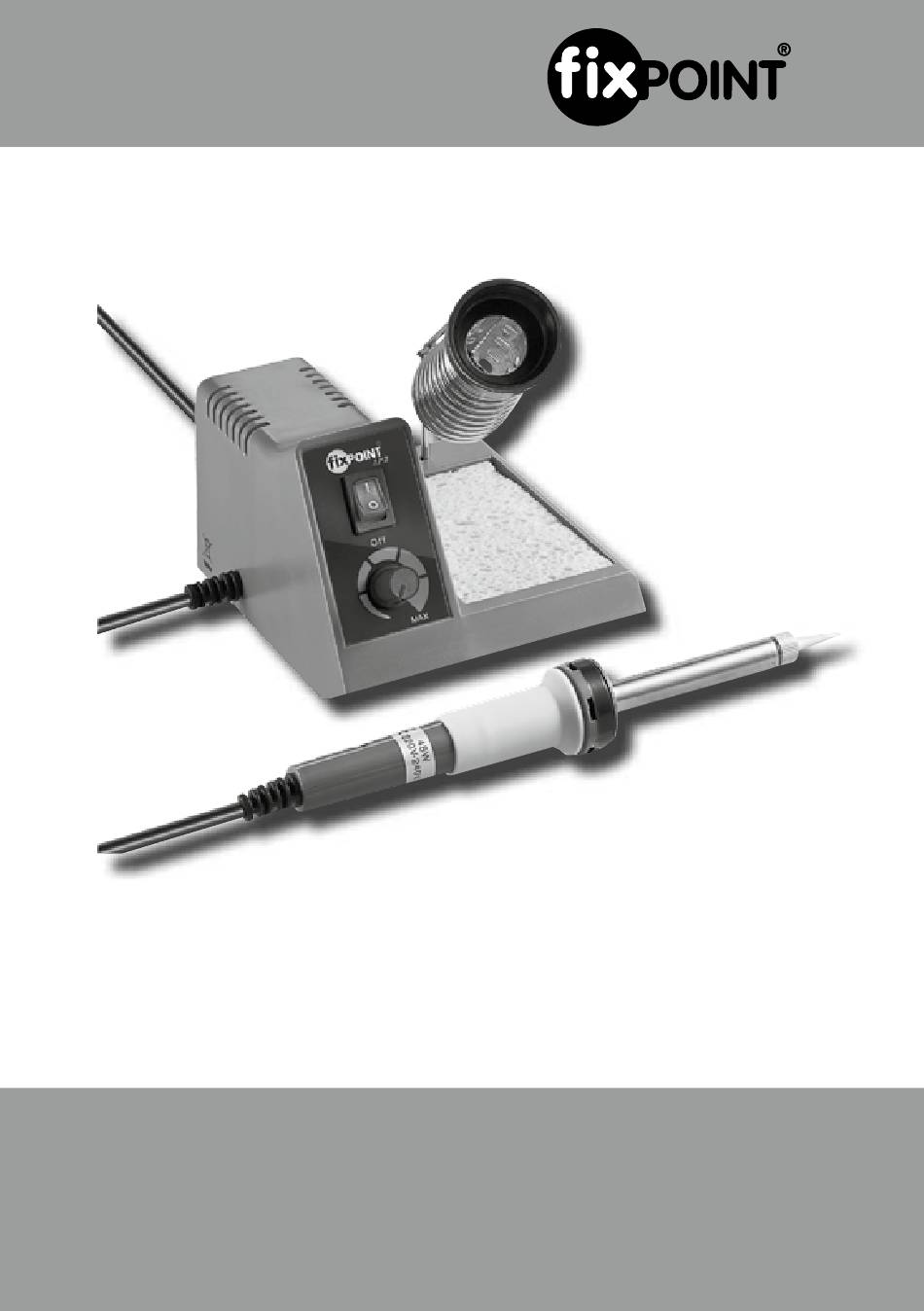

  • Page 1 Lötstation | soldering station AP 2 Art.No. 51091 Bedienungsanleitung Manual Notice d’utilisation Manual Istruzioni per l’uso...

  • Page 2: Table Of Contents

    12 CE-Declaration 1 Description and Function: The Soldering Station AP 2 is made for using in hobby-electronics, production and workshops. It comes with soldering iron, stand for the soldering iron with sponge tray and viscose-cleaning sponge, as well as an analog temperature adjustment. A compact, stabile and protective-insulated housing is included.

  • Page 3: Notes On Safety

    3 Notes on Safety: ATTENTION! Only skilled electricians may assemble and disassemble the housing of the product. There is a risk of electric shock, short circuit and burning! • Your product is not a toy and is not meant for children, because it contains small parts which can be swallowed and injured when used inappropriately! •...

  • Page 4: Parts Package

    • Please also observe the terms of use described in the Chapter “Intended Use”. 4 Parts Package: • 1 pc. soldering station AP 2 • 1 pc. soldering iron 40 - 48 Watts with solder tip • 1 pc. user‘s manual 5 Operating- and Adjusting Elements, Connecting: 1.

  • Page 5: Operating

    6 Operating: 6.1 Preparing: 1. Insert the spiral-shaped metal holder into the corresponding opening of the soldering iron stand. 2. Soak the viscose cleaning sponge with clean water and drain it well before replacing it in the sponge tray. 3. The soldering tip is mounted into the shaft and fixed by a safety socket to the soldering iron.

  • Page 6: Notes On Application

    Manual The most commonly applied electronics solder is the Fixpoint leadfree solder wire of ® Fixpoint solder wire L-SN 60 Cu 2 (DIN EN ISO 12224-1) with a tin content of 60% (60/40 ® solder). This solder is available in different wire diameters (0.56 - 1.5 mm). We recommend a solder wire diameter of 1 mm for electronics.

  • Page 7: Care, Maintenance, Storage And Transport

    7 Care, Maintenance, Storage and Transport: ATTENTION! There is a risk of electric shock, short circuit and burnings! • Always disconnect the mains plug from mains and let the device cool down! • Use a dry cotton cloth to clean your product, or use a slightly moist cloth for heavy stains.

  • Page 8: Specifications

    WEEE No.: 82898622 12 CE-Declaration: This device corresponds to EU directives 2004/108/EC and 2006/95/EC: With the CE sign Fixpoint , a registered trademark of the Wentronic GmbH ensures, ® that the product is conformed to the basic standards and directives. These standards can be requested online on www.wentronic.com.
