Smart Machine Smart Decision
C: AUX_ANT SMA connector.
D: GNSS_ANT SMA connector.
E: GNSS_ANT RF connector.
F: MAIN_ANT RF connector.
G: MAIN_ANT SMA connector.

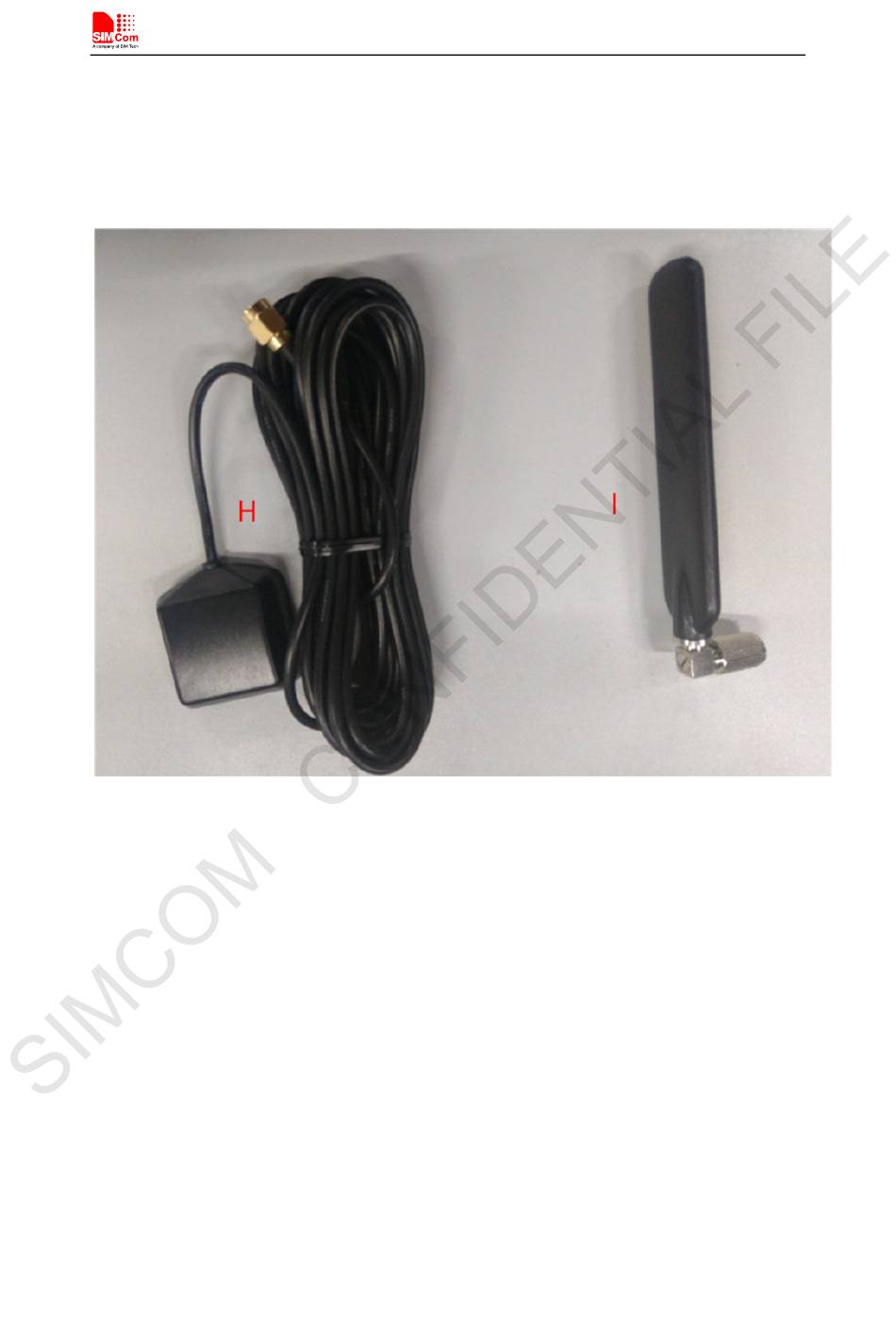

Figure 2: Antenna
H: GNSS Antenna
I: MAIN and AUX Antenna
Note: SIM7500A-TE kit do not have GNSS Antenna .
SIM7500A_SIM7500E_SIM7500JE_SIM7500JC_SIM7500S_SIM7500SA-TE kit_User Guide_V1.01
2016-10-25
7
