Smart Machine Smart Decision
2 SIM7500x –TE Overview
2.1 Detailed description of SIM7500x-TE
This chapter introduces the functions of each component. The components C/D/G are the
MAIN_ANT/ GNSS_ANT / AUX_ANT SMA connectors, and the connectors B/E/F are reserved
for dug.

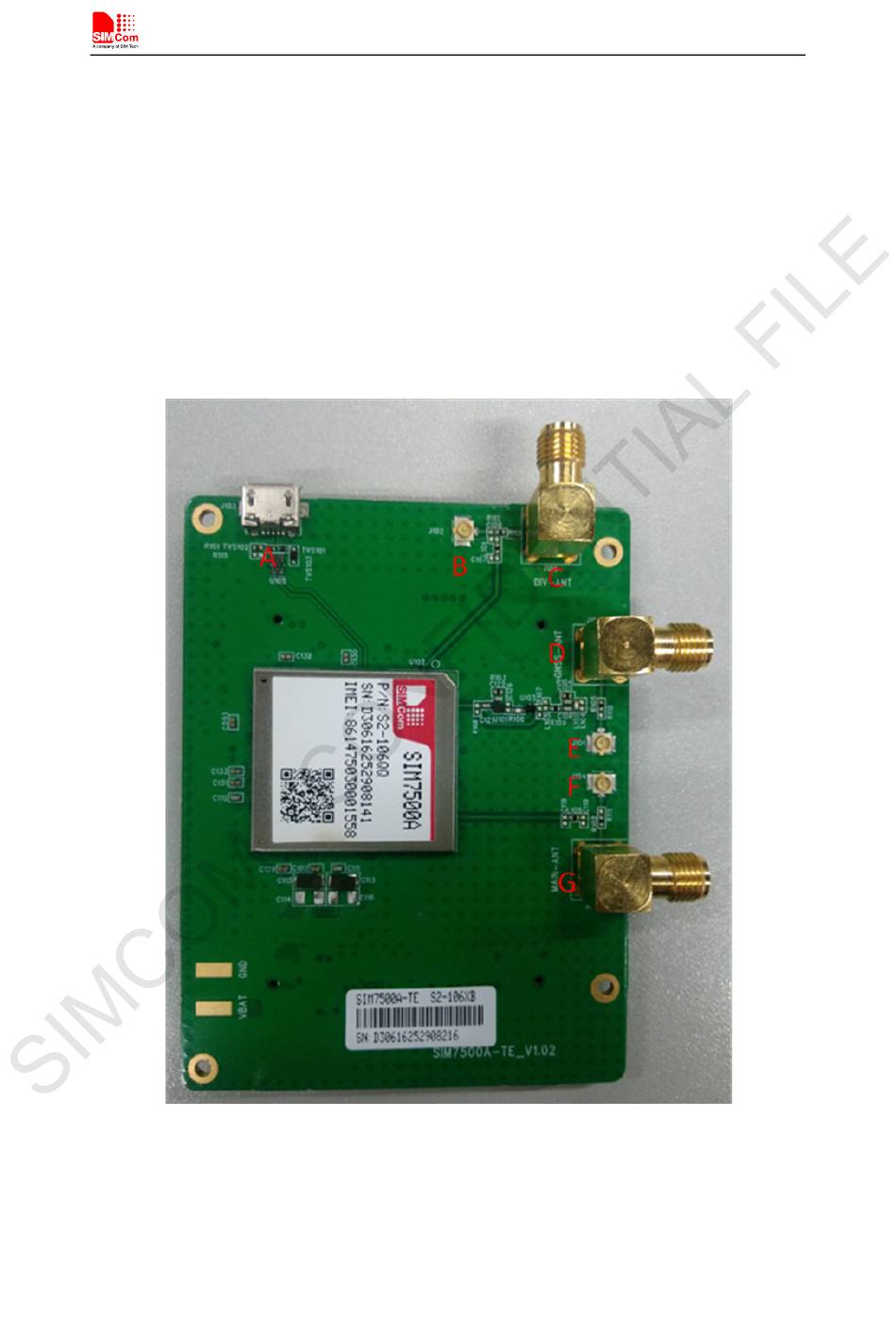

Figure 1: SIM7500x-TE components function
A: USB interface, support USB communication with SIM7500x .
B: AUX_ANT RF connector
SIM7500A_SIM7500E_SIM7500JE_SIM7500JC_SIM7500S_SIM7500SA-TE kit_User Guide_V1.01
2016-10-25
6
