Page 1: Installation Manual

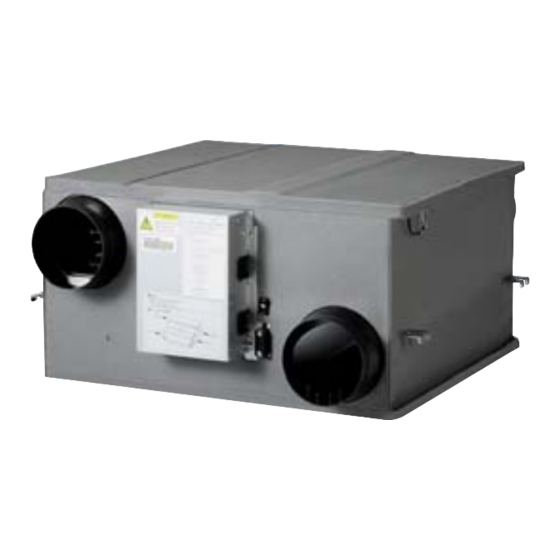

ERV Wired remote controller MWR-VH12N ERV(Energy Recovery Ventilator) installation manual imagine the possibilities Thank you for purchasing this Samsung product. -
Page 2: Table Of Contents
Using installation/service mode of ERV wired remote controller . . . . . . . . . . . . . . . . -
Page 3: Safety Precautions
Safety Precautions This installation manual explains how to install a ERV Wired Remote Controller connected to the indoor unit of your system air conditioner . Please read this manual thoroughly before installing the product . (Please refer to appropriate installation for any optional product installation .) Hazards or unsafe practices that may result in severe personal injury or death . - Page 4 Safety Precautions CAUTION Do not install the product where there’s combustible gas. f Potential risk of fire and explosion . Ensure no water gets into the Wired Remote Controller. f Potential risk of electric shock or fire . Install the air conditioner away from direct exposure to sunlight, in room temperature range of 0 °C(32 °F)~39 °C(102 °F).
-
Page 5: Before Installing Erv Wired Remote Controller
• Check and confirm the power is off before installing ERV wired remote controller . Caution • Install the ERV wired remote controller cables in accordance with the electrical wiring rules, and allow it to pass through the inner area of the wall so that other people can’t reach it . -
Page 6: Installing The Erv Wired Remote Controller
2. Fix the mounting plate of the ERV wired remote controller on the wall with 2 screws. 3. Connect the F3, F4 of PCB terminal in ERV to F3, F4 of ERV wired remote controller terminal. 4. Arrange the connected communication wires correctly depending on the installation condition. - Page 7 • When installing the ERV wired remote controller by using a wire longer than 10 m, you must install the communication wire of the ERV wired remote controller and the AC power cable Caution separately . (Electrical interference can cause your ERV wired remote controller to malfunction .) •...
- Page 8 4. It may take about 5 minutes at initial installation or when you re-set the master setting. • If you want to perform system reset of ERV wired remote controller, press the Fan speed and buttons at the same time for more than five seconds .
- Page 9 Individual control with your ERV wired remote controller When a upper controller is not connected Individual control means that you are using one ERV wired remote controller to control one ERV . COM2(F3, F4) COM2(F3, F4) COM2(F3, F4) ERV wired remote...
- Page 10 Installing the ERV wired remote controller Group control with your ERV wired remote controller Group control means that you are using one ERV wired remote controller to control two or more ERVs at the same time . 1. Using one ERV wired remote controller to control three ERVs.
- Page 11 ERV wired remote controller (Master) (Slave) • For the setting of slave ERV wired remote controller, please refer to the sections about the additional functions of the ERV wired remote controller . (Refer to the installation/service mode ) Caution 0 : Master, 1 : Slave...
- Page 12 Press the Fan speed and buttons at the same time for more than five seconds . f Your ERV wired remote controller is initialized, and the device searches for the indoor units/ERVs connected to your ERV wired remote controller again .
- Page 13 ERV address (Hexadecimal) (Hexadecimal) When an error occurs in ERV wired remote controller f Only an error code is displayed . (No address is displayed .) Example : Error 601 has occurred at your ERV wired remote controller . ENGLISH-13...
- Page 14 • The maximum number of installation is exceeded . (Maximum:16) • Reset is required after checking the number of installed devices . • Error on installation of slave ERV wired remote controller (When more than 2 slave ERV wired remote controllers are installed .) •...
-
Page 15: Using Installation/Service Mode Of Erv Wired Remote Controller
You will enter the additional function settings, and the main menu is displayed . 2. Refer to the list of additional functions for the ERV wired remote controller on the next page, and select the desired menu. - Page 16 Using installation/service mode of ERV wired remote controller Installation/service setting mode • If communication initialization is needed after the setting, the system resets automatically and communication is initialized . Note Main Factory Page Function Range Remarks menu menu setting number...
- Page 17 5)* checking Address of View Master Setting/checking ERV ERV View registered devices / View Master Master hexadecimal 5)* Setting/ ERV wired remote 0-Master, 1-Slave checking controller Master/Slave optional functions of ERV wired Use of external interlock 0-Disuse, 1-Use remote controller...
- Page 18 2)* When setting the address or option, you can set the target device with sub menu no .1 . 3)* Power Master Reset is a setting needed to supply optimized power to ERV wired remote controller when multiple indoor units or ERVs are connected to ERV wired remote controller in a group .
- Page 19 • Address is displayed in hexadecimal . Refer to the table below . Note Hexadecimal Decimal Hexadecimal Decimal Hexadecimal Decimal Hexadecimal Decimal Hexadecimal Decimal ENGLISH-19...
- Page 20 Using installation/service mode of ERV wired remote controller The example of setting ERV wired remote controller options 1. Press the Mode and buttons at the same time for more than 3 seconds. f When main menu is displayed, press the button to select no .5 .
- Page 21 Memo ENGLISH-21...
