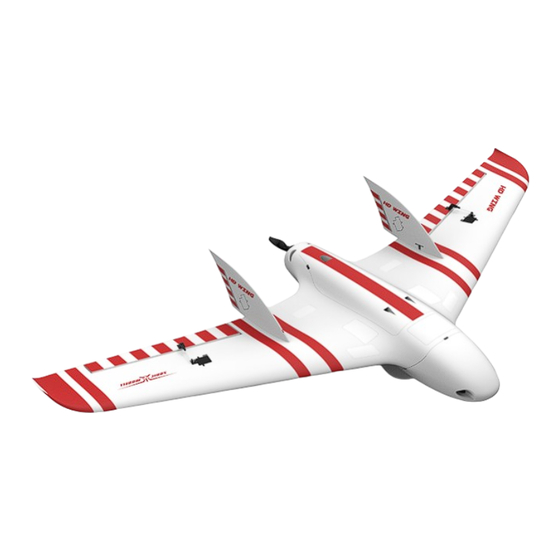

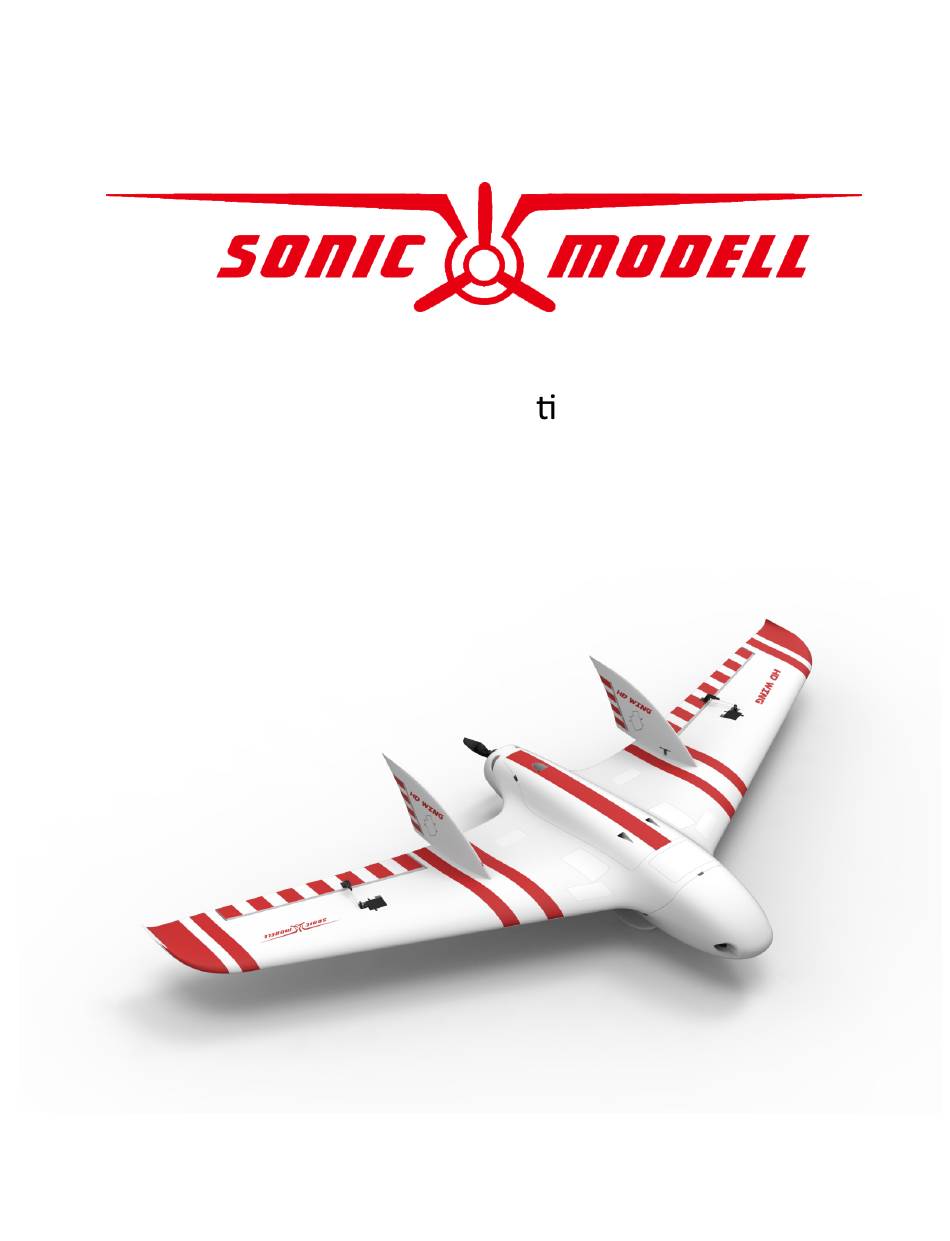

- Page 1 Assembly Instruc ons for: SONICMOELL HD WING Page | 1...
- Page 2 It is import to read the manual in its en rety before your maiden flight. This model is intended to be a short to medium range FPV aircra . The HD Wing is easy to operate with excellent flight characteris cs, but we do not recommend a flying wing as a beginner airframe for FPV unless they have assistance from an experienced pilot .
- Page 3 Package Contents: (KIT version Show) Fuselage Hardware Package a. Upper and Lower Wing Bracket Joiners with Screws b. Op onal Wooden Camera Plate Main Wings Landing Skids Wing Spar Op onal Nose with Domes Rudders Decal Sheet Page | 3...
- Page 4 Assembly 1. Locate Wing Spar and feed it half way through the fuselage. 2. Locate Right and Le wings and slide each side over the spar un l they reach the center. Aileron servos should be on top. Page | 4...
- Page 5 3. Locate Plas c wing Anchors and Screws. Each anchor has corresponding le ers and a forward poin ng arrow in the plas c that note where each one belongs. a. Longer screws go in the forward brackets. b. All screws insert from the bo om side. If you have any that insert from the top, please double check.
- Page 6 4. Locate Servo Leads and pass them through to the fuselage. a. You will see a small opening inside the fuselage to pull the lead through. Page | 6...
- Page 7 5. Locate landing skids and dry fit before gluing into place. a. If you use the nose piece to help guide the skids, be careful to not allow glue onto it. We use contact cement. b. Secure the skids with masking tape while curing. Page | 7...
- Page 8 6. Locate rudders, screws and secure into place. It is not necessary to glue the rudders into place. Page | 8...
- Page 9 7. Locate op onal dome nose and 2 small screws. a. Secure dome onto nose with screws. 8. Locate prop adapter, propeller, and adapter rings. Install onto motor sha and ghten completely. a. It is always best to balance the propeller before flying. b.
- Page 10 flight. d. Without FPV gear installed, we fly with an 3300 3s ba ery. e. While the HD Wing is an easy plane to hand launch, we recommend having a qualified person to launch for the maiden flight.
- Page 11 Center of Gravity Mark: CG Bump Finished the HD Wing: Enjoy your HD Wing ! Please fly responsibly. Page | 11...
